LD15S13 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

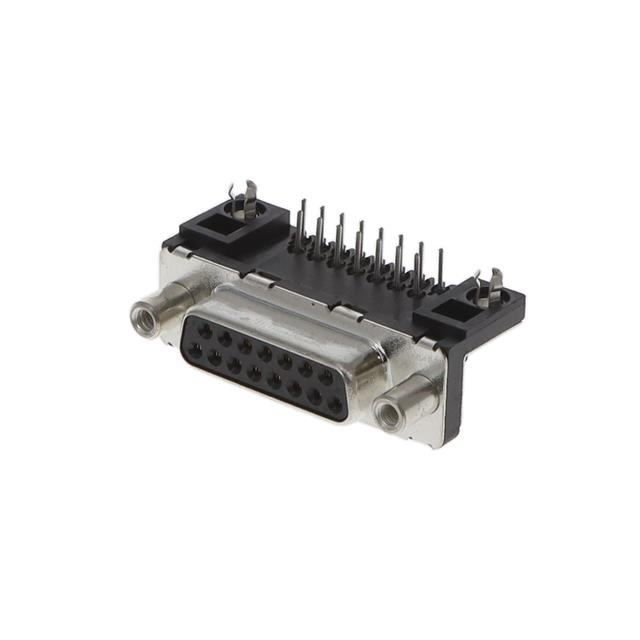

CONN D-SUB RCPT 15POS R/A SLDR
| Part | Color | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Dielectric Material | Contact Material | Mounting Type | Shell Material, Finish | Features | Connector Style | Number of Rows [custom] | Material Flammability Rating | Flange Feature | Flange Feature | Connector Type | Backset Spacing | Backset Spacing | Contact Finish | Contact Type | Number of Positions | Shell Size, Connector Layout | Contact Finish Thickness | Termination | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Black | -55 C | 105 ░C | 250 V | Thermoplastic | Copper Alloy | Board Edge Right Angle Through Hole | Steel Tin-Nickel Plated | Board Lock | D-Sub | 2 | UL94 V-0 | Housing/Shell | 4-40 | Receptacle Female Sockets | 10.4 mm | 0.409 in | Gold | Signal | 15 | 2 | Flash | Solder | 5 A |
 Amphenol ICC (FCI) | Black | -55 C | 105 ░C | 250 V | Thermoplastic | Copper Alloy | Board Edge Right Angle Through Hole | Steel Tin-Nickel Plated | Board Lock | D-Sub | 2 | UL94 V-0 | 4-40 Mating Side Female Screwlock | Receptacle Female Sockets | 10.4 mm | 0.409 in | Gold | Signal | 15 | 2 | Flash | Solder | 5 A |
