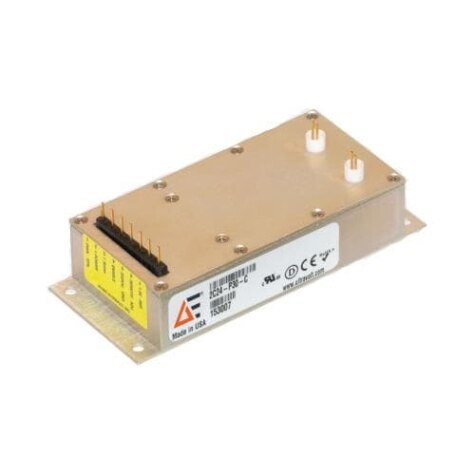

Dual Polarity C Series
Manufacturer: ULTRAVOLT / Advanced Energy
Beta
⌘K
NON-ISOLATED DC/DC CONVERTERS 250W 24VIN 125VOUT DUAL OUTPUT
| Part | Mounting Type | Voltage - Output 1 | Type | Control Features | Voltage - Input (Min) [Min] | Applications | Number of Outputs | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Output 2 | Current - Output (Max) | Package / Case | Voltage - Input (Max) [Max] | Approval Agency | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Power (Watts) | Current - Output (Max) [Max] | Features | Voltage - Output 2 [Max] | Voltage - Output 2 [Min] | Standard Number | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ULTRAVOLT / Advanced Energy | Through Hole | 125 V | High Voltage - Non-Isolated Module | Active Floating Enable | 23 V | ITE (Commercial) | 2 | -40 C | 65 °C | -125 V | 1 A | Module | 30 V | CE cURus | 203.2 mm | 4.5 " | 1.08 " | 114.3 mm | 8 in | 27.4 mm | 60 W | ||||||||
 ULTRAVOLT / Advanced Energy | |||||||||||||||||||||||||||||
ULTRAVOLT / Advanced Energy | Through Hole | High Voltage - Non-Isolated Module | Active High Active Low Enable | 23 V | ITE (Commercial) | 2 | -40 C | 65 °C | Module | 30 V | CE cUR cURus UR | 203.2 mm | 4.5 " | 1.08 " | 114.3 mm | 8 in | 27.4 mm | 120 W | 15 mA | Adjustable Output Remote On/Off | -4000 V | 0 V | 60950-1 | 0 V | 4000 V | ||||
ULTRAVOLT / Advanced Energy | |||||||||||||||||||||||||||||
ULTRAVOLT / Advanced Energy | Through Hole | 125 V | High Voltage - Non-Isolated Module | Active Floating Enable | 23 V | ITE (Commercial) | 2 | -40 C | 65 °C | -125 V | Module | 30 V | CE cURus | 203.2 mm | 4.5 " | 1.08 " | 114.3 mm | 8 in | 27.4 mm | 60 W | 480 mA | 480 mA | |||||||
ULTRAVOLT / Advanced Energy | |||||||||||||||||||||||||||||
ULTRAVOLT / Advanced Energy | Through Hole | 250 V | High Voltage - Non-Isolated Module | Active Floating Enable | 23 V | ITE (Commercial) | 2 | -40 C | 65 °C | -250 V | 240 mA | Module | 30 V | CE cURus | 203.2 mm | 4.5 " | 1.08 " | 114.3 mm | 8 in | 27.4 mm | 60 W | ||||||||
ULTRAVOLT / Advanced Energy | Through Hole | 125 V | High Voltage - Non-Isolated Module | Active Floating Enable | 23 V | ITE (Commercial) | 2 | -40 C | 65 °C | -125 V | 1 A | Module | 30 V | CE cURus | 203.2 mm | 4.5 " | 1.08 " | 114.3 mm | 8 in | 27.4 mm | 15 W | ||||||||
ULTRAVOLT / Advanced Energy | |||||||||||||||||||||||||||||
ULTRAVOLT / Advanced Energy | Through Hole | 250 V | High Voltage - Non-Isolated Module | Active Floating Enable | 23 V | ITE (Commercial) | 2 | -40 C | 65 °C | -250 V | 240 mA | Module | 30 V | CE cURus | 203.2 mm | 4.5 " | 1.48 " | 114.3 mm | 8 in | 37.6 mm | 15 W | Heat Sink |
