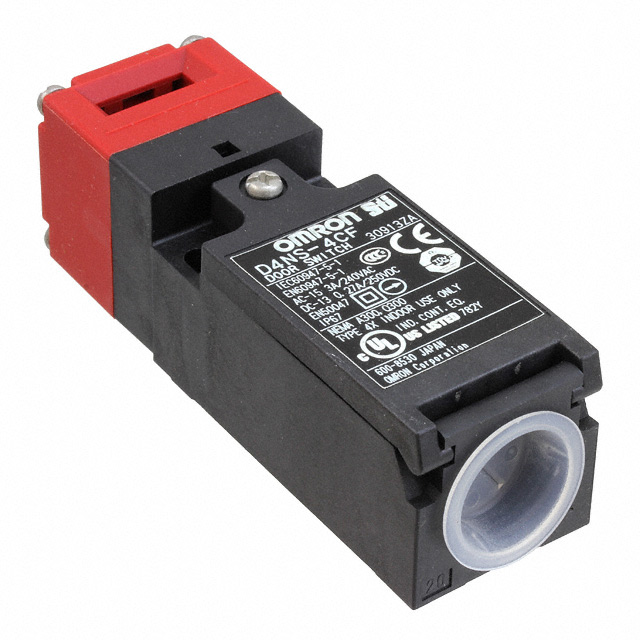

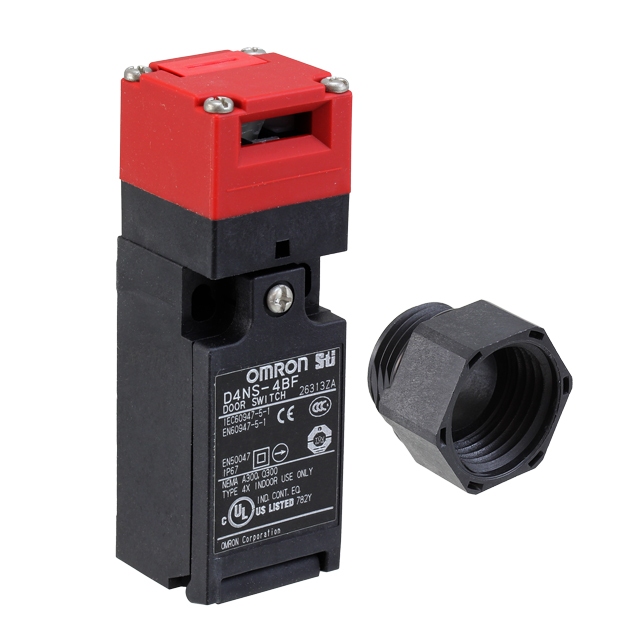

D4NS Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
INTERLOCK NON-LOCKING 3PST
| Part | Current Rating (Amps) | Ingress Protection | Voltage Rating | Approval Agency | Termination Style | Circuit | Type | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Holding Force | Conduit Thread Size | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 3 A | IP67 - Dust Tight Waterproof | 240 VAC | CCC CE cULus TUV | Screw Terminal | 3PST-NC | Non-Locking | 70 °C | -30 ░C | Panel Disconnect | 6 kgf | ||
 Omron Electronics Inc-EMC Div | 3 A | IP67 - Dust Tight Waterproof | 240 VAC | CCC CE cULus TUV | Screw Terminal | 3PST-2NC/1NO (MBB) | Non-Locking | 70 °C | -30 ░C | Panel Disconnect | 6 kgf | G1/2 | |
Omron Electronics Inc-EMC Div | 3 A | IP67 - Dust Tight Waterproof | 240 VAC | CCC CE cULus TUV | Screw Terminal | DPST-NO/NC (MBB) | Non-Locking | 70 °C | -30 ░C | Panel Disconnect | 6 kgf | G1/2 x2 | |
Omron Electronics Inc-EMC Div | D4NS Series | ||||||||||||
 Omron Electronics Inc-EMC Div | 3 A | IP67 - Dust Tight Waterproof | 240 VAC | CCC CE cULus TUV | Screw Terminal | DPST-NC | Non-Locking | 70 °C | -30 ░C | Panel Disconnect | 6 kgf | PG13.5 | |
Omron Electronics Inc-EMC Div | |||||||||||||
 Omron Electronics Inc-EMC Div | 3 A | IP67 - Dust Tight Waterproof | 240 VAC | CCC CE cULus TUV | Screw Terminal | 3PST-NC | Non-Locking | 70 °C | -30 ░C | Panel Disconnect | 6 kgf | ||
 Omron Electronics Inc-EMC Div | 3 A | IP67 - Dust Tight Waterproof | 240 VAC | CCC CE cULus TUV | Screw Terminal | DPST-NC | Non-Locking | 70 °C | -30 ░C | Panel Disconnect | 6 kgf | PG13.5 x2 | |
 Omron Electronics Inc-EMC Div | 3 A | IP67 - Dust Tight Waterproof | 240 VAC | CCC CE cULus TUV | Screw Terminal | 3PST-2NC/1NO | Non-Locking | 70 °C | -30 ░C | Panel Disconnect | 6 kgf | ||
Omron Electronics Inc-EMC Div | 3 A | IP67 - Dust Tight Waterproof | 240 VAC | CCC CE cULus TUV | Screw Terminal | DPST-NO/NC (MBB) | Non-Locking | 70 °C | -30 ░C | Panel Disconnect | 6 kgf | G1/2 |
