FSP090 Series
Manufacturer: FSP Technology Inc.
Beta
⌘K

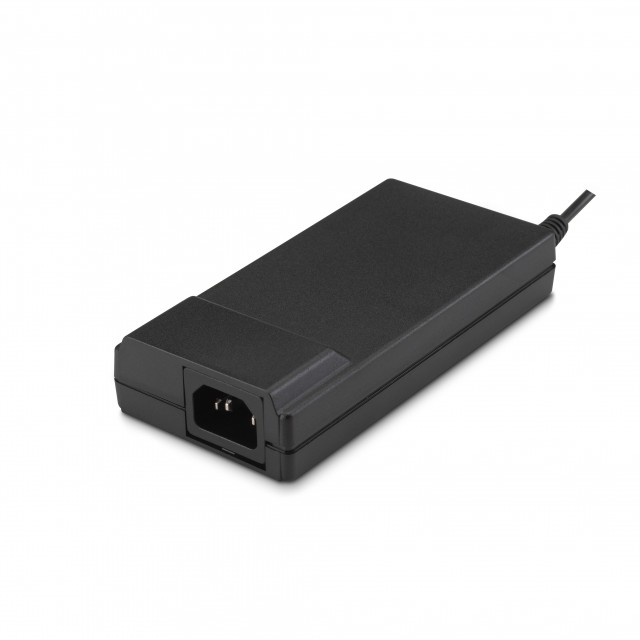

AC/DC DESKTOP ADAPTER 12V 90W
| Part | Voltage - Input [Max] | Voltage - Input [Min] | Form | Region Utilized | No Load Power Consumption | Approval Agency | Standard Number | Output Connector | Current - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Input Type | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Voltage - Output | Efficiency | Power (Watts) | Input Connector | Cord Length | Cord Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 FSP Technology Inc. | 264 VAC | 90 VAC | Desktop (Class I) | International | 210 mW | CE cULus FCC TUV VCCI | 60601-1 | Power DIN 4 Pin | 7.5 A | 40 °C | 0 °C | Medical | Cord (Sold Separately) | 2.77 in | 70.2 mm | 145 mm | 5.71 " | 1.12 " | 28.4 mm | 12 V | Level VI | 90 W | IEC 320-C14 | 1.5 m | 59 in |
FSP Technology Inc. | 264 VAC | 90 VAC | Desktop (Class I) | International | 210 mW | CE cULus FCC TUV VCCI | 60601-1 | Power DIN 4 Pin | 6 A | 40 °C | 0 °C | Medical | Cord (Sold Separately) | 2.77 in | 70.2 mm | 145 mm | 5.71 " | 1.12 " | 28.4 mm | 15 V | Level VI | 90 W | IEC 320-C14 | 1.5 m | 59 in |
