77223 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

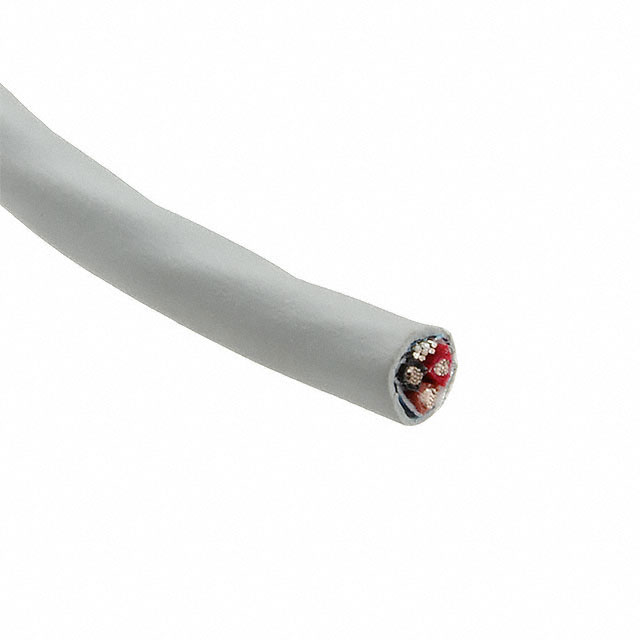

CABLE 3CON 16AWG SLATE SHLD
| Part | Shield Coverage | Shield Material | Voltage | Wire Gauge | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Conductor Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Strand [custom] | Conductor Strand [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Jacket Color | Conductor Material | Cable Type | Length [x] | Length [x] | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum Copper Tinned | 600 V | 16 AWG | Polyphenylene Ether Modified (mPPE) | 6.76 mm | 0.266 in | Braid Foil | Polyphenylene Ether Modified (mPPE) | -50 °C | 105 ░C | 19 | 0.0117 in | 0.813 mm | 0.032 in | 3 | Slate | Copper Tinned | Multi-Conductor | 100 ft | 30.5 m | ISO 10993 | Biological Compatibility |
