1746062 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

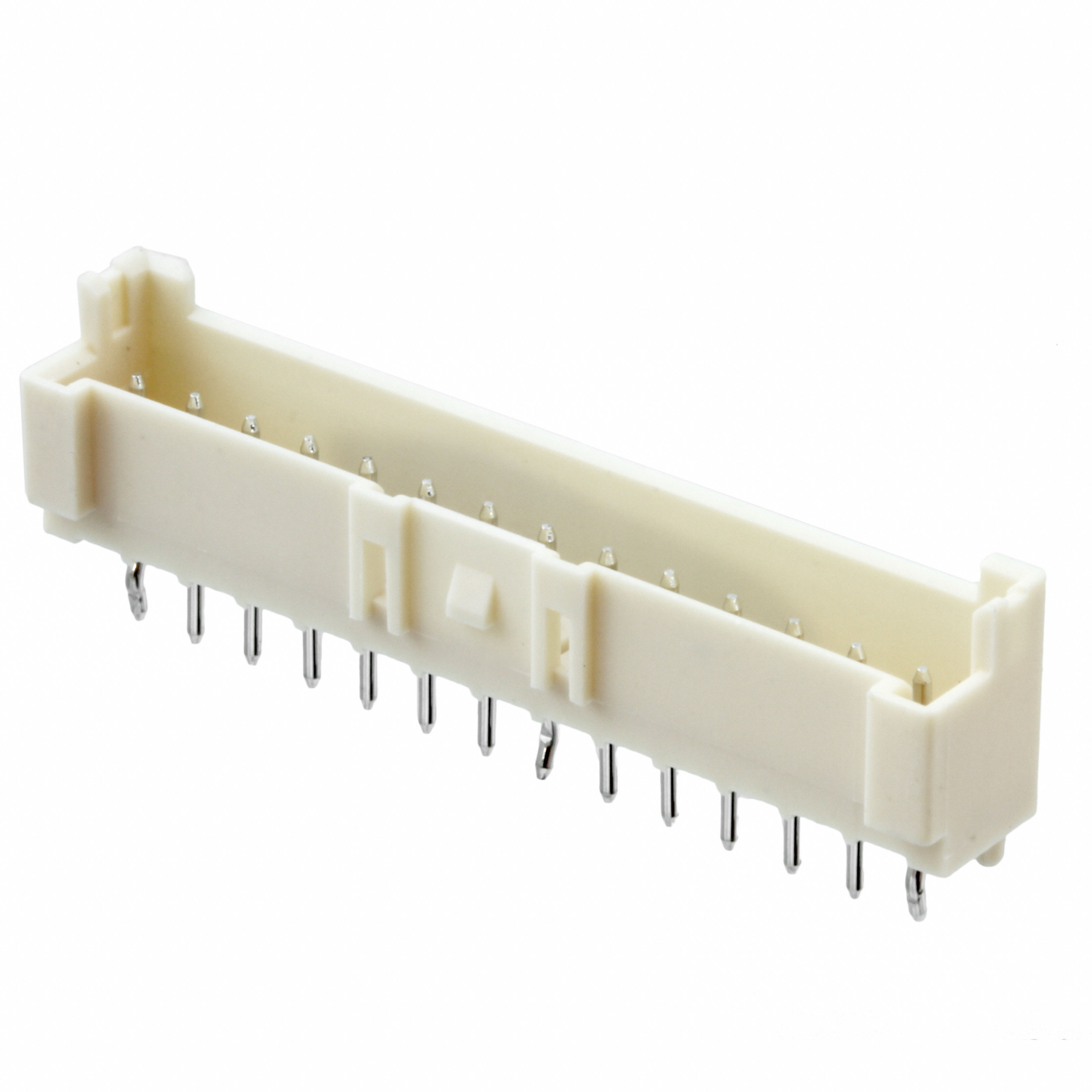

CONN HEADER VERT 14POS 2.5MM
| Part | Mated Stacking Heights | Applications | Pitch - Mating | Pitch - Mating | Contact Type | Overall Contact Length | Overall Contact Length | Contact Length - Post [x] | Contact Length - Post [x] | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Style | Mounting Type | Insulation Material | Voltage Rating | Connector Type | Contact Material | Features | Current Rating (Amps) | Number of Positions | Contact Shape | Number of Rows | Termination | Number of Positions Loaded | Insulation Color | Contact Length - Mating | Contact Length - Mating | Shrouding | Insulation Height | Insulation Height | Fastening Type | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 13.7 mm | General Purpose | 2.5 mm | 0.098 in | Male Pin | 0.41 in | 10.41 mm | 0.126 " | 3.2 mm | -30 ░C | 105 ░C | UL94 V-0 | Board to Cable/Wire | Through Hole | Glass Filled Nylon 6/6 Polyamide (PA66) | 50 V | Header | Copper Alloy | Board Guide | 3 A | 14 | Square | 1 | Kinked Pin Solder | All | Natural | 4.7 mm | 0.185 in | Shrouded - 4 Wall | 9.8 mm | 0.386 in | Latch Holder | Tin |
