09160723 Series
Manufacturer: HARTING
Beta
⌘K

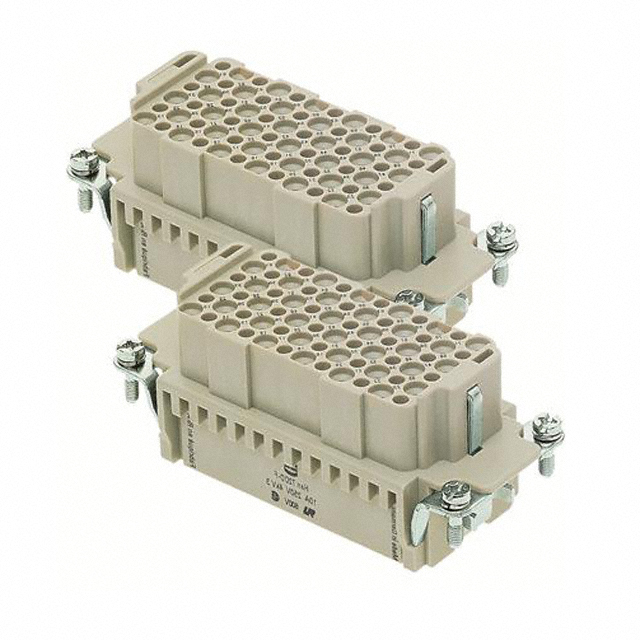

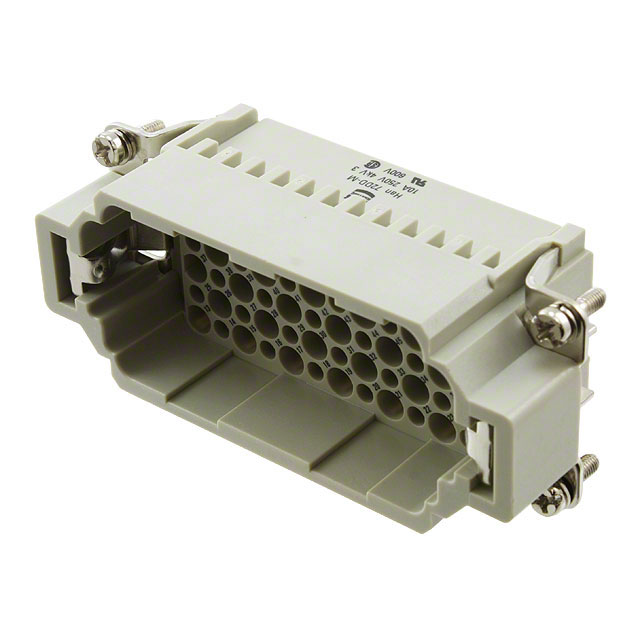

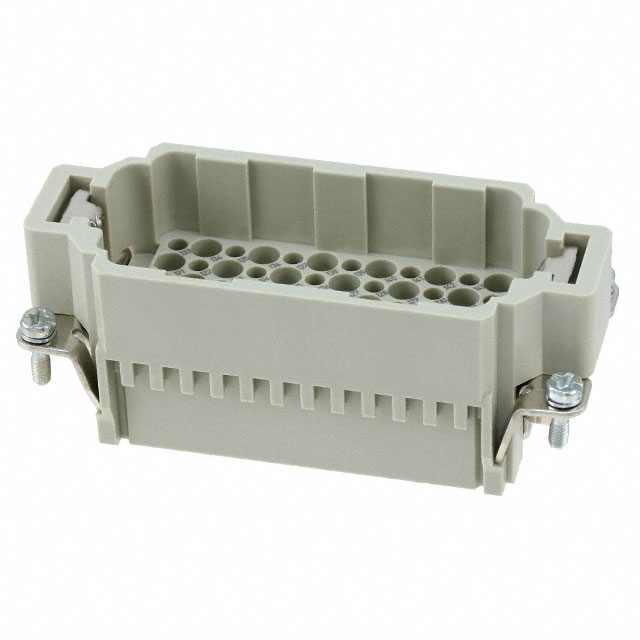

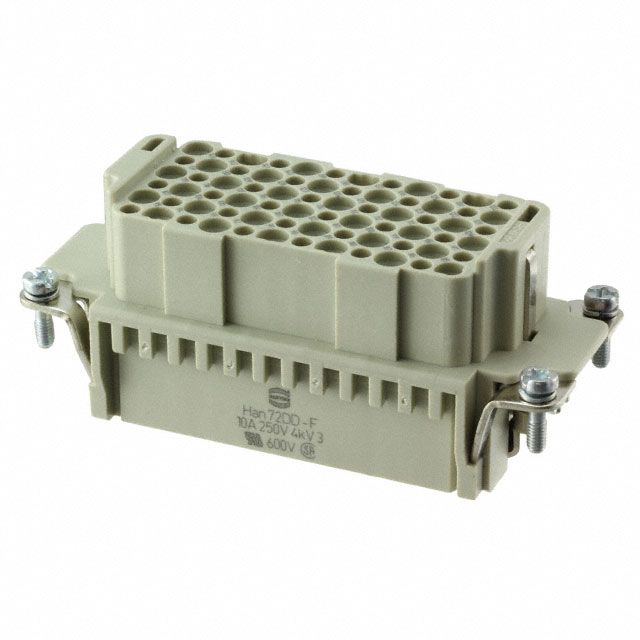

HEAVY DUTY CONNECTOR, 72+PE, LESS CONTACTS, HAN DD SERIES, INSERT, 73 CONTACTS, 32B, PLUG
| Part | Color | Housing Material | Material Flammability Rating | Gender | Contact Type | Size | Current Rating (Amps) | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Gray | Polycarbonate (PC) | UL94 V-0 | Male | Han® D | 16 B | 10 A | Insert without Contacts | 125 °C | -40 C | 600 V | Crimp |
 HARTING | Gray | Polycarbonate (PC) | UL94 V-0 | Female | Han® D | 16 B | 10 A | Insert without Contacts | 125 °C | -40 C | 600 V | Crimp |
 HARTING | Gray | Polycarbonate (PC) | UL94 V-0 | Male | Han® D | 16 B | 10 A | Insert without Contacts | 125 °C | -40 C | 600 V | Crimp |
 HARTING | Gray | Polycarbonate (PC) | UL94 V-0 | Female | Han® D | 16 B | 10 A | Insert without Contacts | 125 °C | -40 C | 600 V | Crimp |
