OQ09 Series

Catalog

TERM BLOCK HDR 9POS VERT 7.62MM

Part	Header Orientation	Number of Positions	Color	Type	Contact Tail Length	Contact Tail Length	Contact Material	Voltage - UL	Termination Style	Material Flammability Rating	Mounting Type	Current - UL	Housing Material	Pitch [x]	Pitch [x]	Contact Mating Finish	Positions Per Level	Number of Levels	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Features	Insulation Height [z]	Insulation Height [z]
Amphenol Anytek OQ0901000000G	Vertical	9	Black	Header Male Pins Shrouded (4 Side)	0.157 in	4 mm	Copper	300 V	Solder	UL94 V-0	Through Hole	20 A	Thermoplastic	0.3 in	7.62 mm	Tin	9	1	0.472 in	12 mm	-40 °C	115 °C
Amphenol Anytek OQ0975800000G	Vertical	9	Gray	Header Male Pins Shrouded (4 Side)	0.157 in	4 mm	Copper	300 V	Solder	UL94 V-0	Through Hole	20 A	Thermoplastic	0.197 in	5 mm	Tin	9	1	0.472 in	12 mm	-40 °C	115 °C	Mating Flange

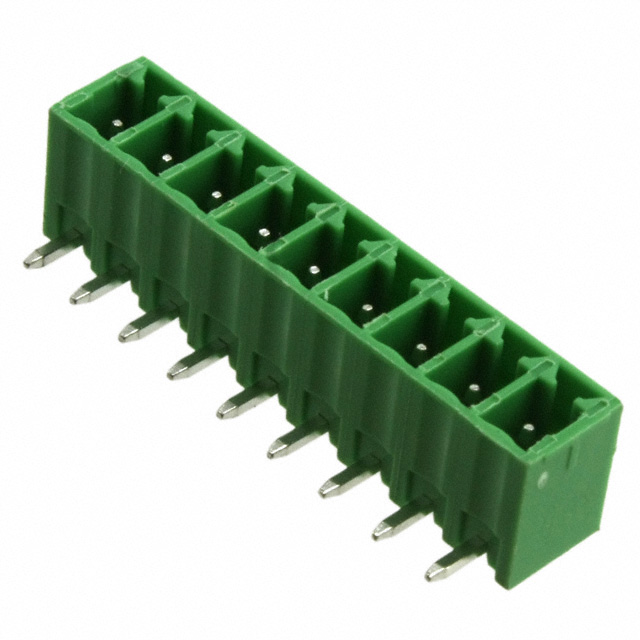

Amphenol Anytek OQ0954510300G	90° Right Angle	9	Green	Header Male Pins Shrouded (4 Side)	0.138 in	3.5 mm	Copper	300 V	Solder	UL94 V-0	Through Hole	20 A	Thermoplastic	0.2 in	5.08 mm	Tin	9	1	0.335 "	8.51 mm	-40 °C	115 °C	Locking Ramp
Amphenol Anytek OQ0912510300G	90° Right Angle	9	Green	Header Male Pins Shrouded (4 Side)	0.138 in	3.5 mm	Copper	300 V	Solder	UL94 V-0	Through Hole	10 A	Thermoplastic	0.138 in	3.5 mm	Tin	9	1	0.283 "	7.19 mm	-40 °C	115 °C	Locking Ramp
Amphenol Anytek OQ0932510000G	90° Right Angle	9	Green	Header Male Pins Shrouded (4 Side)	0.138 in	3.5 mm	Copper Alloy	300 V	Solder	UL94 V-0	Through Hole	10 A	Thermoplastic Resin	0.15 in	3.81 mm	Tin	9	1	0.283 "	7.19 mm	-40 °C	115 °C
Amphenol Anytek OQ0900810000G	90° Right Angle	9	Gray	Header Male Pins Shrouded (2 Side)	0.138 in	3.5 mm	Copper	300 V	Solder	UL94 V-0	Through Hole	20 A	Thermoplastic	0.3 in	7.62 mm	Tin	9	1	0.335 "	8.51 mm	-40 °C	115 °C
Amphenol Anytek OQ0954500300G	Vertical	9	Green	Header Male Pins Shrouded (4 Side)	0.157 in	4 mm	Copper	300 V	Solder	UL94 V-0	Through Hole	20 A	Thermoplastic	0.2 in	5.08 mm	Tin	9	1	0.472 in	12 mm	-40 °C	115 °C	Locking Ramp
Amphenol Anytek OQ0900800000G	Vertical	9	Gray	Header Male Pins Shrouded (2 Side)	0.157 in	4 mm	Copper	300 V	Solder	UL94 V-0	Through Hole	20 A	Thermoplastic	0.3 in	7.62 mm	Tin	9	1	0.472 in	12 mm	-40 °C	115 °C
Amphenol Anytek OQ09A1800000G	Vertical	9	Gray	Header Male Pins Shrouded (4 Side)	0.157 in	4 mm	Copper	300 V	Solder	UL94 V-0	Through Hole	20 A	Thermoplastic	0.295 in	7.5 mm	Tin	9	1	0.472 in	12 mm	-40 °C	115 °C
Amphenol Anytek OQ0912610000G	90° Right Angle	9	Blue	Header Male Pins Shrouded (4 Side)	0.138 in	3.5 mm	Copper Alloy	300 V	Solder	UL94 V-0	Through Hole	10 A	Thermoplastic Resin	0.138 in	3.5 mm	Tin	9	1			-40 °C	115 °C		7 mm	0.276 in
