Barracuda Series
Manufacturer: OmniOn Power™
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 36-75 VDC INPUT 12VDC OUTPUT 240W
| Part | Number of Outputs | Voltage - Isolation | Power (Watts) | Mounting Type | Voltage - Output 1 | Features | Voltage - Input (Min) [Min] | Type | Current - Output (Max) [Max] | Control Features | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Efficiency | Applications | Package / Case | Voltage - Input (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) | Supplier Device Package | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

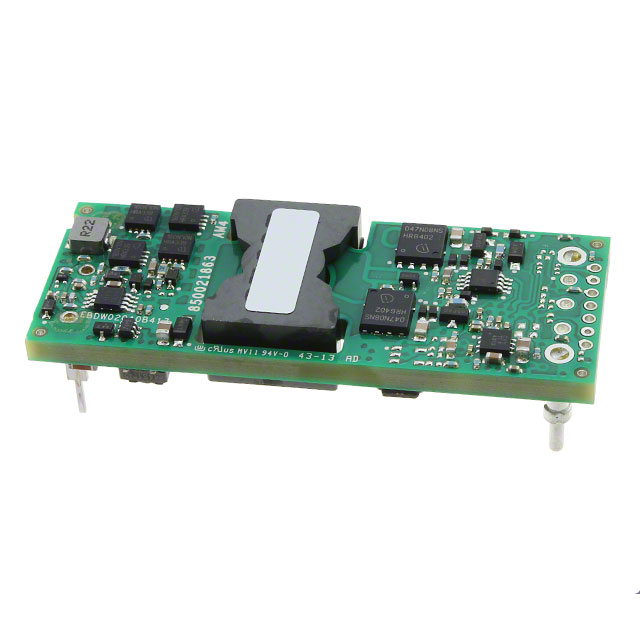

 OmniOn Power™ | 1 | 2250 VDC | 240 Watts | Through Hole | 12 V | OCP OTP OVP Remote On/Off UVLO | 36 V | Intermediate Bus Converter | 20 A | Active Low Enable | 0.44 in | 58.4 mm | 11.1 mm | 0.9 in | 22.9 mm | 2.3 in | 95.2 % | ITE (Commercial) | 8-DIP Module 1/8 Brick | 75 V | 85 °C | -40 C | |||

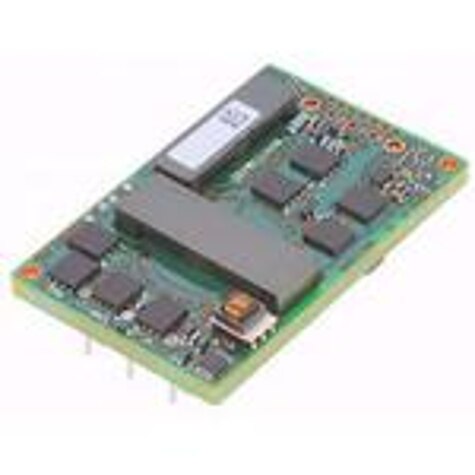

 OmniOn Power™ | 1 | 2250 VDC | 300 W | Through Hole | 12 V | OCP OTP OVP Remote On/Off UVLO | 36 V | Isolated Module | 25 A | Active Low Enable | 0.5 in | 58.4 mm | 12.6 mm | 1.45 in | 36.8 mm | 2.3 in | 96 % | ITE (Commercial) | 8-DIP Module | 75 V | 85 °C | -40 C | |||
 OmniOn Power™ | 1 | 2250 VDC | 396 W | Through Hole | 12 V | OCP OTP OVP Remote On/Off UVLO | 36 V | Intermediate Bus Converter Digital | 33 A | Active Low Enable | 0.5 in | 58.4 mm | 12.6 mm | 1.45 in | 36.8 mm | 2.3 in | 95.3 % | ITE (Commercial) | 8-DIP Module 1/4 Brick | 75 V | 85 °C | -40 C | |||
OmniOn Power™ | 1 | 2250 VDC | 300 W | Through Hole | 12 V | OCP OTP OVP Remote On/Off UVLO | 36 V | Isolated Module | 25 A | Active Low Enable | 0.5 in | 58.4 mm | 12.6 mm | 1.45 in | 36.8 mm | 2.3 in | 96 % | ITE (Commercial) | 8-DIP Module | 75 V | 85 °C | -40 C | |||
 OmniOn Power™ | 1 | 2250 VDC | 300 W | Through Hole | 12 V | OCP OTP OVP Remote On/Off UVLO | 36 V | Isolated Module | 25 A | Active Low Enable | 0.5 in | 58.4 mm | 12.6 mm | 1.45 in | 36.8 mm | 2.3 in | 95.9 % | ITE (Commercial) | 15-DIP Module | 75 V | 85 °C | -40 C | |||

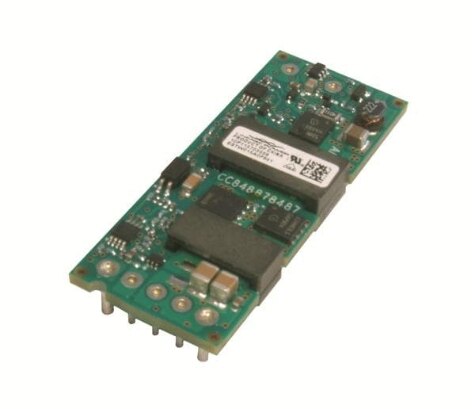

 OmniOn Power™ | 1 | 2250 VDC | 72 W | Through Hole | 12 V | OCP OTP OVP Remote On/Off UVLO | 36 V | Isolated Module | 6 A | Active Low Enable | 0.3 in | 57.9 mm | 7.6 mm | 0.9 in | 22.8 mm | 2.28 " | 90.5 % | ITE (Commercial) | 8-DIP Module 1/8 Brick | 75 V | 85 °C | -40 C | |||
 OmniOn Power™ | 1 | 2250 VDC | Through Hole | 12 V | OCP OTP OVP Remote On/Off UVLO | 36 V | Intermediate Bus Converter | 0.49 " | 58.4 mm | 12.6 mm | 1.45 in | 36.8 mm | 2.3 in | 95 % | ITE (Commercial) | Quarter Brick | 75 V | 85 °C | -40 °C | 42 A | Quarter Brick | ||||
 OmniOn Power™ | 1 | 2250 VDC | Through Hole | 12 V | Baseplate Heat Sink Remote On/Off | 36 V | Isolated Module | 35 A | Active Low Enable | 0.49 " | 58.4 mm | 12.6 mm | 1.45 in | 36.8 mm | 2.3 in | 95.5 % | ITE (Commercial) | Quarter Brick | 75 V | 85 °C | -40 °C | Quarter Brick | 60950-1 | ||
OmniOn Power™ | 1 | 2250 VDC | 240 Watts | Through Hole | 12 V | OCP OTP OVP Remote On/Off UVLO | 36 V | Intermediate Bus Converter | 20 A | Active Low Enable | 0.44 in | 58.4 mm | 11.1 mm | 0.9 in | 22.9 mm | 2.3 in | 95.2 % | ITE (Commercial) | 8-DIP Module 1/8 Brick | 75 V | 85 °C | -40 C |
