NRPN192 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER SMD 38POS 2MM

Part	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Number of Rows [custom]	Number of Positions	Contact Length - Mating	Contact Length - Mating	Insulation Material	Voltage Rating	Contact Shape	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Number of Positions Loaded	Features	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Current Rating (Amps)	Material Flammability Rating	Contact Finish - Mating	Connector Type	Mounting Type	Shrouding	Contact Finish - Post	Contact Type	Style	Contact Length - Post [custom]	Contact Length - Post	Insulation Color	Insulation Height [z]	Insulation Height [z]	Overall Contact Length	Overall Contact Length
Sullins Connector Solutions NRPN192MAMP-RC	Flash	0.079 "	2 mm	2	38	0.141 in	3.6 mm	Nylon 6T Polyamide (PA6T)	150 VDC	Square	Solder	-40 C	105 ░C	Brass	0.059 in	1.5 mm	Flash	All	Board Guide	Push-Pull	2 mm	0.079 in	2 A	UL94 V-0	Gold	Header	Surface Mount	Unshrouded	Gold	Male Pin	Board to Board Cable

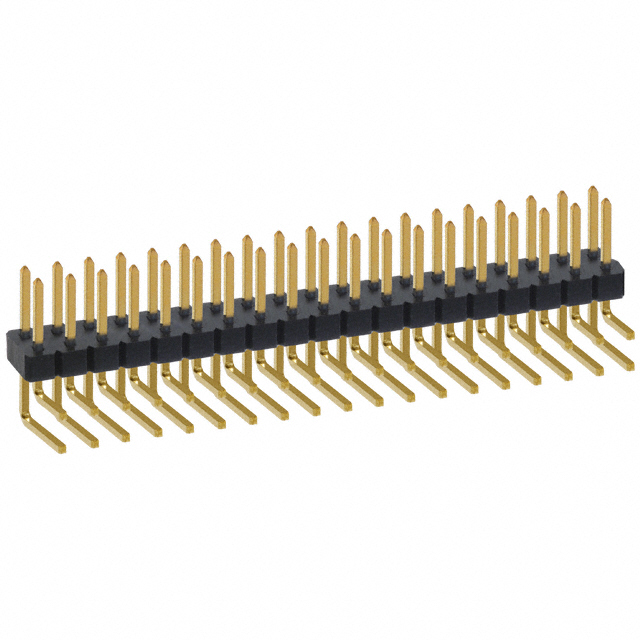

Sullins Connector Solutions NRPN192PARN-RC	Flash	0.079 "	2 mm	2	38	0.141 in	3.6 mm	Nylon 6T Polyamide (PA6T)	150 VDC	Square	Solder	-40 C	105 ░C	Brass			Flash	All		Push-Pull	2 mm	0.079 in	2 A	UL94 V-0	Gold	Header	Right Angle Through Hole	Unshrouded	Gold	Male Pin	Board to Board Cable	0.11 in	2.79 mm	Black	4 mm	0.157 in
Sullins Connector Solutions NRPN192MAMS-RC	Flash	0.079 "	2 mm	2	38	0.141 in	3.6 mm	Nylon 6T Polyamide (PA6T)	150 VDC	Square	Solder	-40 C	105 ░C	Brass	0.059 in	1.5 mm	Flash	All		Push-Pull	2 mm	0.079 in	2 A	UL94 V-0	Gold	Header	Surface Mount	Unshrouded	Gold	Male Pin	Board to Board Cable			Black
Sullins Connector Solutions NRPN192PAEN-RC	Flash	0.079 "	2 mm	2	38	0.141 in	3.6 mm	Nylon 6T Polyamide (PA6T)	150 VDC	Square	Solder	-40 C	105 ░C	Brass			Flash	All		Push-Pull	2 mm	0.079 in	2 A	UL94 V-0	Gold	Header	Through Hole	Unshrouded	Gold	Male Pin	Board to Board Cable	0.11 in	2.79 mm	Black	2 mm	0.079 in	0.33 in	8.38 mm
