S8B-ZR Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 8POS 1.5MM
| Part | Contact Length - Mating | Contact Length - Mating | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Insulation Material | Insulation Height | Insulation Height | Fastening Type | Contact Finish - Post | Insulation Color | Number of Positions Loaded | Number of Positions | Contact Material | Style | Connector Type | Number of Rows | Termination | Contact Shape | Contact Length - Post [x] | Contact Length - Post [x] | Contact Type | Shrouding | Material Flammability Rating | Features | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

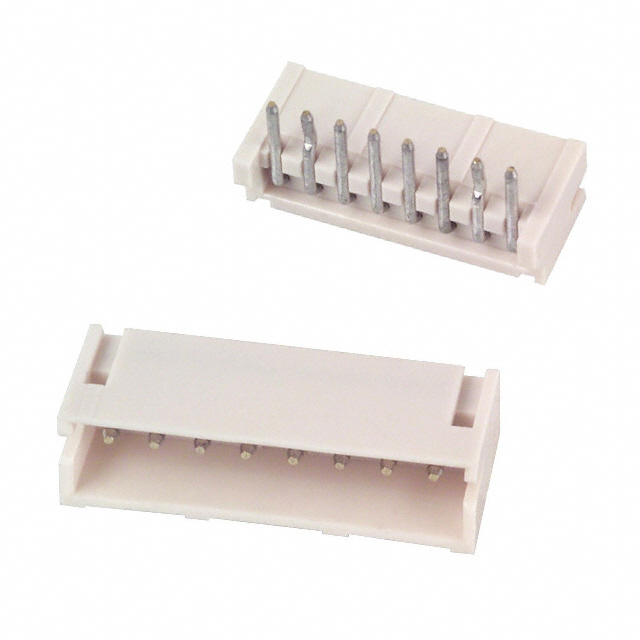

 JST Sales America Inc. | 2.4 mm | 0.094 in | Right Angle Through Hole | 85 °C | -25 °C | 50 V | Glass Filled Nylon 6/6 Polyamide (PA66) | 3.7 mm | 0.146 in | Detent Lock | Tin | Natural | All | 8 | Brass | Board to Cable/Wire | Header | 1 | Solder | Circular | 0.106 in | 2.69 mm | Male Pin | Shrouded - 4 Wall | UL94 V-0 | ||

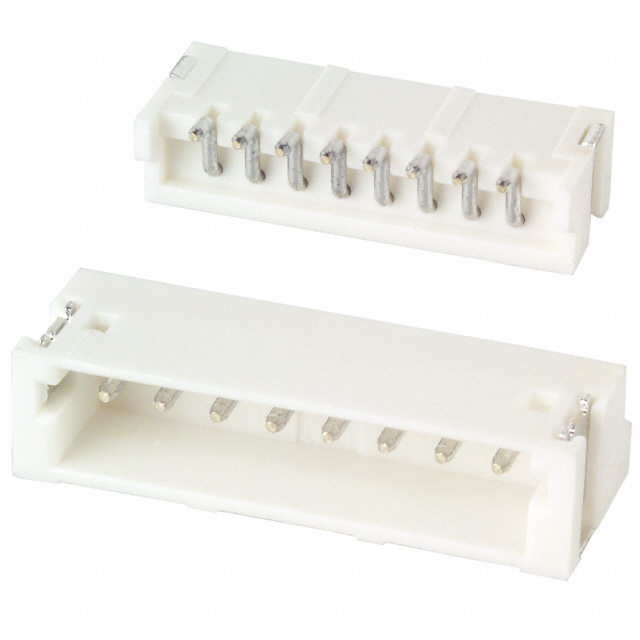

 JST Sales America Inc. | 2.4 mm | 0.094 in | Right Angle Surface Mount | 85 °C | -25 °C | 50 V | Glass Filled Nylon 4/6 Polyamide (PA46) | 3.7 mm | 0.146 in | Detent Lock | Tin | Natural | All | 8 | Brass | Board to Cable/Wire | Header | 1 | Solder | Circular | Male Pin | Shrouded - 4 Wall | UL94 V-0 | Board Guide | |||
 JST Sales America Inc. | Right Angle Through Hole | 85 °C | -25 °C | 50 V | Glass Filled Nylon 6/6 Polyamide (PA66) | 3.7 mm | 0.146 in | Detent Lock | Tin | Natural | All | 8 | Brass | Board to Cable/Wire | Header | 1 | Solder | Circular | 0.134 " | Male Pin | Shrouded - 4 Wall | UL94 V-0 | 3.4 mm | ||||
 JST Sales America Inc. | Right Angle Surface Mount | 85 °C | -25 °C | 50 V | Nylon 6T Polyamide (PA6T) | 3.7 mm | 0.146 in | Detent Lock | Tin | Natural | All | 8 | Brass | Board to Cable/Wire | Header | 1 | Solder | Circular | Male Pin | Shrouded - 4 Wall | UL94 V-0 | Solder Retention |
