LAMA600 Series
Manufacturer: Panduit Corp
Beta
⌘K

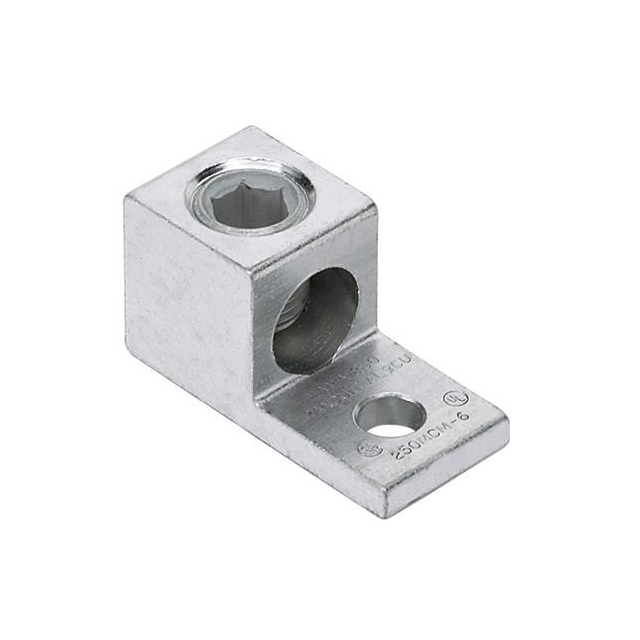

CONN TERM RECT LUG 4 AWG #3/8
| Part | Contact Finish | Contact Material | Termination | Length - Overall | Length - Overall | Tab Thickness | Tab Thickness | Wire Gauge | Features | Insulation | Stud/Tab Size | Width - Outer Edges [x] | Width - Outer Edges [x] | Terminal Style | Terminal Type | Mounting Type | Length - Overall [x] | Length - Overall [x] | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | Tin | Aluminum | Screw | 71.37 mm | 2.81 in | 7.87 mm | 0.31 " | 4 AWG 600 MCM | With Screw | Non-Insulated | 0.375 Stud | 1.38 in | 35.05 mm | Single Stud Hole | Lug Grounding | Free Hanging (In-Line) | |||
 Panduit Corp | Tin | Aluminum | Screw | 11.18 mm | 0.44 in | 600 MCM | With Screw | Non-Insulated | 0.375 Stud | 1.6 in | 40.64 mm | Single Stud Hole | Lug Grounding | Free Hanging (In-Line) | 80.78 mm | 3.18 in | 2 AWG |
