848-20 Series
Manufacturer: Qualtek
Beta
⌘K

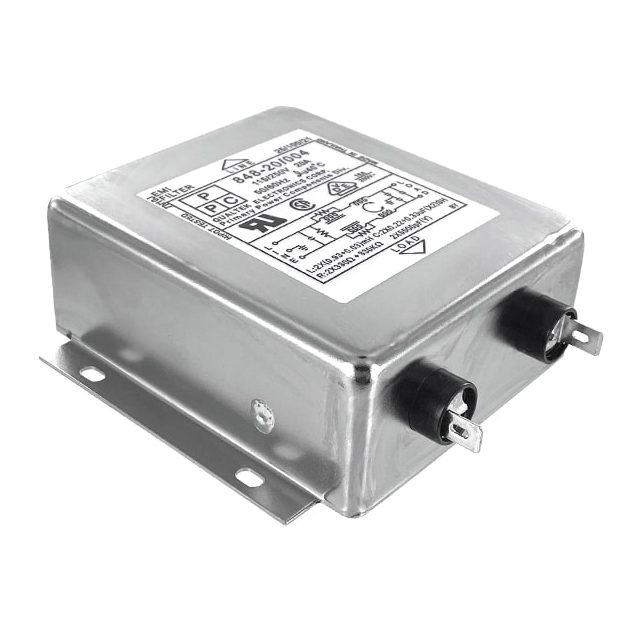

LINE FILTER 115V/250VAC 20A CHAS
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Frequency - Operating [Max] | Frequency - Operating [Min] | Approval Agency | Applications | Inductance [custom] | Inductance [custom] | Termination Style | Current | Configuration | Filter Type | Mounting Type | Voltage - Rated AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Qualtek | 85 °C | -25 °C | 60 Hz | 50 Hz | CSA UR VDE | General Purpose | 30 µH | 930 µH | Quick Connect | 20 A | Two Stage | Single Phase | Chassis Mount | 115 V 250 V |
