ESQT-125 Series

Catalog

CONN SOCKET 50POS 0.079 GOLD PCB

...

Part	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post	Style	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Insulation Material	Current Rating (Amps)	Row Spacing - Mating	Row Spacing - Mating	Number of Rows	Fastening Type	Number of Positions	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Shape	Connector Type	Contact Type	Material Flammability Rating	Contact Finish - Mating	Contact Length - Post	Contact Length - Post
Samtec Inc. ESQT-125-02-G-D-725	Phosphor Bronze	3.18 mm	0.125 in	Gold	Board to Board Cable	0.079 in	2 mm	3 µin	0.076 µm	Solder	Liquid Crystal Polymer (LCP)	4.5 A	0.079 in	2 mm	2	Push-Pull	50	All	0.51 µm	20 µin	Black	0.725 "	18.42 mm	-55 °C	125 °C	Through Hole	Square	Elevated Socket	Forked	UL94 V-0	Gold
Samtec Inc. ESQT-125-02-M-D-610	Phosphor Bronze		0.24 in	Tin	Board to Board Cable	0.079 in	2 mm			Solder	Liquid Crystal Polymer (LCP)	4.5 A	0.079 in	2 mm	2	Push-Pull	50	All	0.51 µm	20 µin	Black	0.61 in	15.49 mm	-55 °C	125 °C	Through Hole	Square	Elevated Socket	Forked	UL94 V-0	Gold	6.1 mm

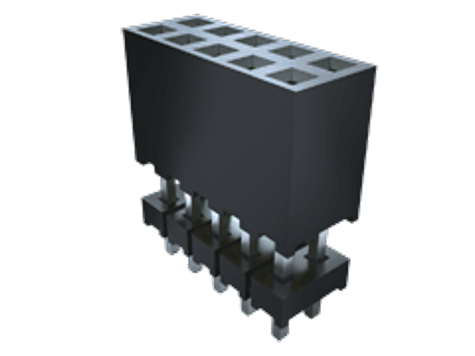

Samtec Inc. ESQT-125-03-M-Q-368	Phosphor Bronze			Tin	Board to Board Cable	0.079 in	2 mm			Solder	Liquid Crystal Polymer (LCP)	4.5 A	0.079 in	2 mm		Push-Pull	100	All	0.51 µm	20 µin	Black	0.368 in	9.35 mm	-55 °C	125 °C	Through Hole	Square	Elevated Socket	Forked	UL94 V-0	Gold	2.29 mm	0.09 "
Samtec Inc. ESQT-125-02-L-D-525	Phosphor Bronze			Tin	Board to Board Cable	0.079 in	2 mm			Solder	Liquid Crystal Polymer (LCP)	4.5 A	0.079 in	2 mm	2	Push-Pull	50	All	0.25 çm	10 çin	Black	0.525 in	13.34 mm	-55 °C	125 °C	Through Hole	Square	Elevated Socket	Forked	UL94 V-0	Gold	8.25 mm	0.325 in
Samtec Inc. ESQT-125-02-G-Q-310	Phosphor Bronze			Gold	Board to Board Cable	0.079 in	2 mm	3 µin	0.076 µm	Solder	Liquid Crystal Polymer (LCP)	4.5 A	0.079 in	2 mm		Push-Pull	100	All	0.51 µm	20 µin	Black	0.31 in	7.87 mm	-55 °C	125 °C	Through Hole	Square	Elevated Socket	Forked	UL94 V-0	Gold	13.72 mm	0.54 in
Samtec Inc. ESQT-125-02-S-D-597	Phosphor Bronze			Tin	Board to Board Cable	0.079 in	2 mm			Solder	Liquid Crystal Polymer (LCP)	4.5 A	0.079 in	2 mm	2	Push-Pull	50	All	0.76 Ám	30 Áin	Black	0.597 in	15.16 mm	-55 °C	125 °C	Through Hole	Square	Elevated Socket	Forked	UL94 V-0	Gold	6.43 mm	0.253 in
Samtec Inc. ESQT-125-03-M-D-315	Phosphor Bronze	3.63 mm	0.143 in	Tin	Board to Board Cable	0.079 in	2 mm			Solder	Liquid Crystal Polymer (LCP)	4.5 A	0.079 in	2 mm	2	Push-Pull	50	All	0.51 µm	20 µin	Black	0.315 in	8 mm	-55 °C	125 °C	Through Hole	Square	Elevated Socket	Forked	UL94 V-0	Gold
Samtec Inc. ESQT-125-02-M-D-760	Phosphor Bronze			Tin	Board to Board Cable	0.079 in	2 mm			Solder	Liquid Crystal Polymer (LCP)	4.5 A	0.079 in	2 mm	2	Push-Pull	50	All	0.51 µm	20 µin	Black	0.76 in	19.3 mm	-55 °C	125 °C	Through Hole	Square	Elevated Socket	Forked	UL94 V-0	Gold	2.29 mm	0.09 "
Samtec Inc. ESQT-125-02-G-D-528	Phosphor Bronze			Gold	Board to Board Cable	0.079 in	2 mm	3 µin	0.076 µm	Solder	Liquid Crystal Polymer (LCP)	4.5 A	0.079 in	2 mm	2	Push-Pull	50	All	0.51 µm	20 µin	Black			-55 °C	125 °C	Through Hole	Square	Elevated Socket	Forked	UL94 V-0	Gold	8.18 mm	0.322 in
Samtec Inc. ESQT-125-02-G-D-676	Phosphor Bronze			Gold	Board to Board Cable	0.079 in	2 mm	3 µin	0.076 µm	Solder	Liquid Crystal Polymer (LCP)	4.5 A	0.079 in	2 mm	2	Push-Pull	50	All	0.51 µm	20 µin	Black	0.676 in	17.17 mm	-55 °C	125 °C	Through Hole	Square	Elevated Socket	Forked	UL94 V-0	Gold	4.42 mm	0.174 in
