50.029 Series

Catalog

CABLE GLAND 18.01-25MM PG29

Part	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Type	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Includes	Thread Size	Ingress Protection	Thread Length	Thread Length	Color	Operating Temperature [Min]	Operating Temperature [Max]
Jacob GmbH 50.029 PASW15	0.984 in	25 mm	Cable Gland	18.01 mm	0.709 "	Sealing Ring	PG29	IP68 - Dust Tight Waterproof	0.591 in	15 mm	Black	-40 C	100 °C

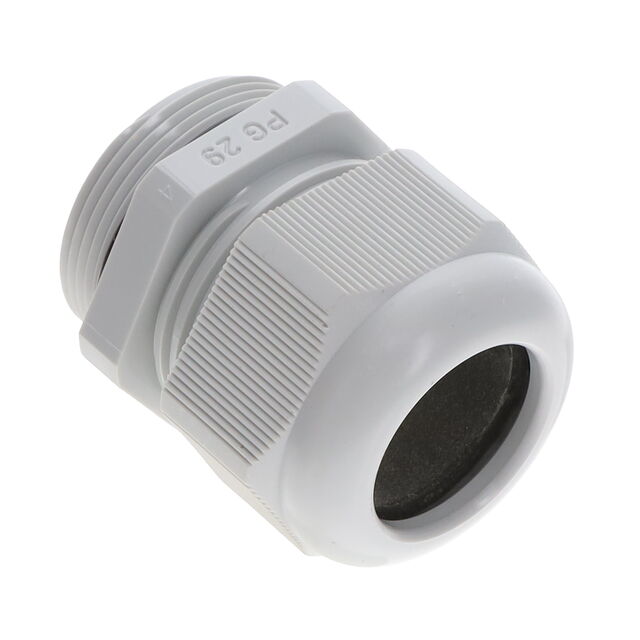

Jacob GmbH 50.029 PA7035	0.984 in	25 mm	Cable Gland	18.01 mm	0.709 "	Sealing Ring	PG29	IP68 - Dust Tight Waterproof	0.433 in	11 mm	Gray	-40 C	100 °C

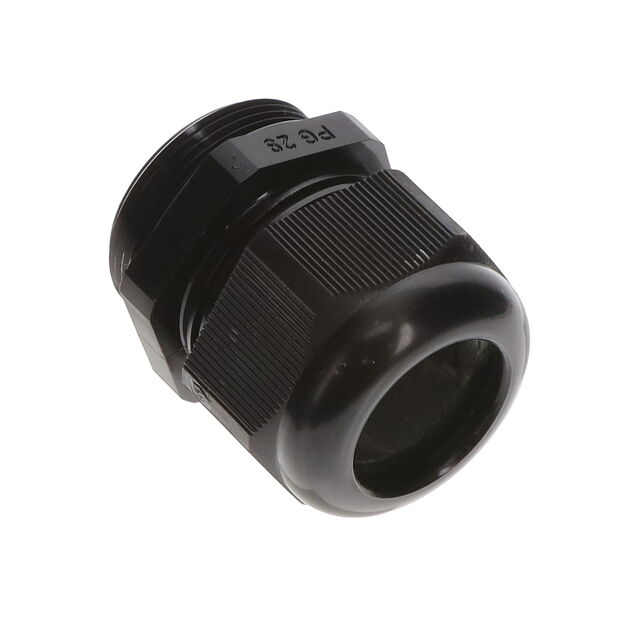

Jacob GmbH 50.029 PA/SW	0.984 in	25 mm	Cable Gland	18.01 mm	0.709 "	Sealing Ring	PG29	IP68 - Dust Tight Waterproof	0.433 in	11 mm	Black	-40 C	100 °C
