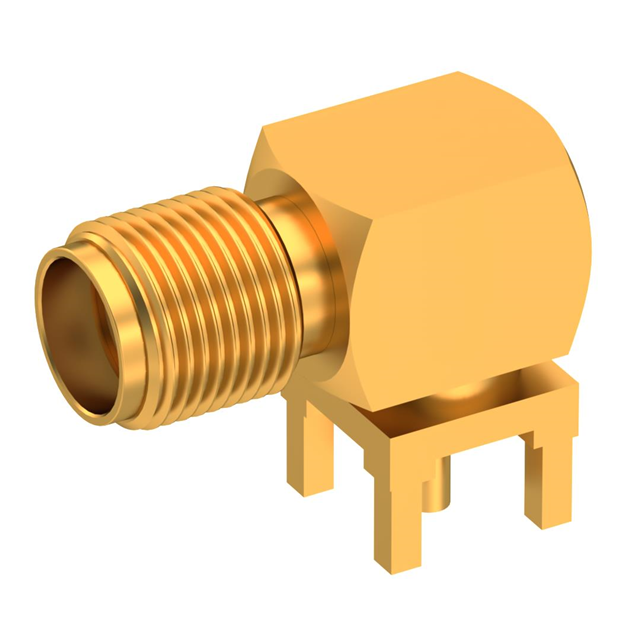

9647-1513 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SMA F RA BHD
| Part | Body Material | Dielectric Material | Mating Cycles | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Number of Ports | Contact Termination | Impedance | Center Contact Material | Shield Termination | Connector Type | Fastening Type | Mounting Type | Housing Color | Connector Style | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Stainless Steel | Polytetrafluoroethylene (PTFE) | 500 | Gold | -65 ░C | 165 °C | Gold | 1 | Solder | 50 Ohms | Beryllium Copper | Solder | Female Socket Jack | Threaded | Right Angle Through Hole | Gold | SMA | 18 GHz |
