38CSP7 Series
Manufacturer: Grayhill Inc.
Beta
⌘K

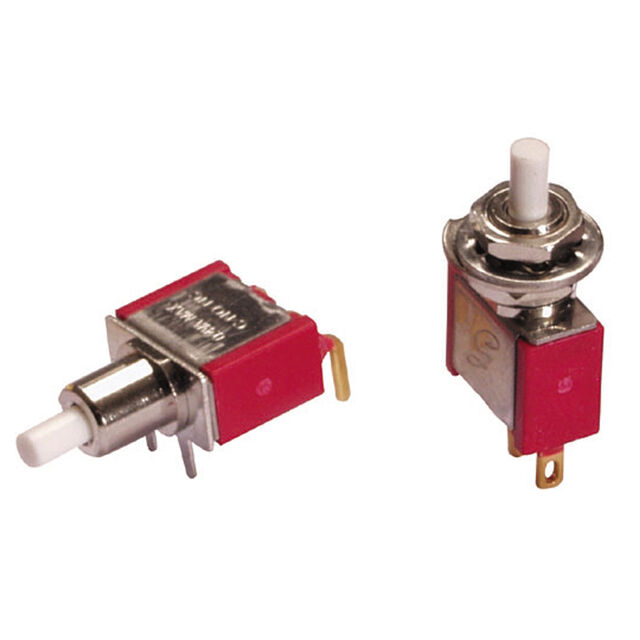

SWITCH PUSHBUTTON SPDT 0.4VA 20V
| Part | Electrical Life | Color - Actuator/Cap | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Current Rating (Amps) | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Type | Voltage Rating - AC | Actuator Marking | Actuator Type | Voltage Rating - DC | Circuit | Switch Function | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 50000 Cycles | Black | 85 °C | -30 ░C | Solder Lug | 0.4 VA | 15.24 mm | 12.7 mm | Standard | 20 V | No Marking | Button Square | 20 V | SPDT | On-Mom | Panel Mount Snap-In | Epoxy Sealed Terminals |
 Grayhill Inc. | 50000 Cycles | White | 85 °C | -30 ░C | PC Pin | 3 A | Standard | 125 V | No Marking | Plunger Round | 28 V | SPDT | On-Mom | Right Angle Through Hole Vertical | Epoxy Sealed Terminals | ||
Grayhill Inc. | 50000 Cycles | White | 85 °C | -30 ░C | Solder Lug | 3 A | Standard | 125 V | No Marking | Plunger Round | 28 V | SPDT | On-Mom | Panel Mount Rear | Epoxy Sealed Terminals | ||
Grayhill Inc. | 50000 Cycles | White | 85 °C | -30 ░C | PC Pin | 3 A | Standard | 125 V | No Marking | Plunger Round | 28 V | SPDT | On-Mom | Panel Mount Rear | Epoxy Sealed Terminals | ||
 Grayhill Inc. | 50000 Cycles | White | 85 °C | -30 ░C | PC Pin | 0.4 VA | Standard | 20 V | No Marking | Plunger Round | 20 V | SPDT | On-Mom | Right Angle Through Hole Vertical | Epoxy Sealed Terminals |
