9WS0912 Series

Catalog

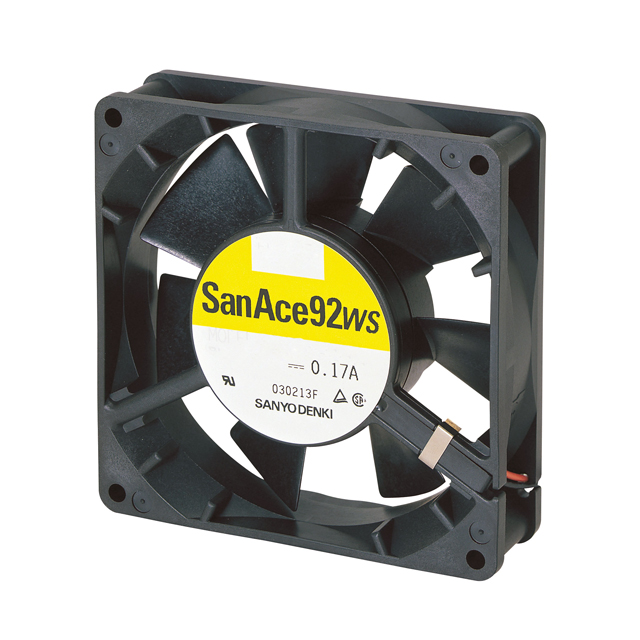

FAN AXIAL 92X25MM 12VDC WIRE

Part	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Material - Frame	Lifetime @ Temp.	Current Rating (Amps)	Features	Air Flow	Air Flow	Size / Dimension [y]	Size / Dimension [x]	Noise	Ingress Protection	Width [y]	Termination	Bearing Type	Voltage - Rated	Approval Agency	Fan Type	RPM	Weight	Weight	Static Pressure	Static Pressure	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]
Sanyo Denki America Inc. 9WS0912M401	10.2 VDC	13.8 VDC	Plastic	Plastic	40000 Hrs	100 mA	Speed Sensor (Tach)	35.7 CFM	1 m³/min	92 mm	92 mm	27 dB(A)	IP54 - Dust Protected Water Resistant	25 mm	3 Wire Leads	Ball	12 VDC	CSA TUV UL	Tubeaxial	2100 RPM	150.14 g	0.331 lb	0.094 in H2O	23.5 Pa	1.2 W	-20 ░C	70 °C
Sanyo Denki America Inc. 9WS0912M402	10.2 VDC	13.8 VDC	Plastic	Plastic	40000 Hrs	100 mA		35.7 CFM	1 m³/min	92 mm	92 mm	27 dB(A)	IP54 - Dust Protected Water Resistant	25 mm	2 Wire Leads	Ball	12 VDC	CSA TUV UL	Tubeaxial	2100 RPM	150.14 g	0.331 lb	0.094 in H2O	23.5 Pa	1.2 W	-20 ░C	70 °C
Sanyo Denki America Inc. 9WS0912H402	10.2 VDC	13.8 VDC	Plastic	Plastic	40000 Hrs	0.17 A		48.7 CFM	1.36 m³/min	92 mm	92 mm	33 dB(A)	IP54 - Dust Protected Water Resistant	25 mm	2 Wire Leads	Ball	12 VDC	CSA TUV UL	Tubeaxial	2850 RPM	150.14 g	0.331 lb	0.181 in H2O	45.1 Pa		-20 ░C	70 °C
Sanyo Denki America Inc. 9WS0912F401	10.2 VDC	13.8 VDC	Plastic	Plastic	40000 Hrs		Speed Sensor (Tach)	41.7 CFM	1.17 mł/min	92 mm	92 mm	30 dB	IP54 - Dust Protected Water Resistant	25 mm	3 Wire Leads	Ball	12 VDC	CSA TUV UL	Tubeaxial	2450 RPM	150.14 g	0.331 lb	0.13 in H2O	32.4 Pa	1.56 W	-20 ░C	70 °C
Sanyo Denki America Inc. 9WS0912F402	10.2 VDC	13.8 VDC	Plastic	Plastic	40000 Hrs			41.7 CFM	1.17 mł/min	92 mm	92 mm	30 dB	IP54 - Dust Protected Water Resistant	25 mm	2 Wire Leads	Ball	12 VDC	CSA TUV UL	Tubeaxial	2450 RPM	150.14 g	0.331 lb	0.13 in H2O	32.4 Pa	1.56 W	-20 ░C	70 °C
Sanyo Denki America Inc. 9WS0912L402	10.2 VDC	13.8 VDC	Plastic	Plastic	40000 Hrs	60 mA		28.2 CFM	0.79 mł/min	92 mm	92 mm	23 dB(A)	IP54 - Dust Protected Water Resistant	25 mm	2 Wire Leads	Ball	12 VDC	CSA TUV UL	Tubeaxial	1700 RPM	150.14 g	0.331 lb	0.067 in H2O	16.7 Pa	720 mW	-20 ░C	70 °C
