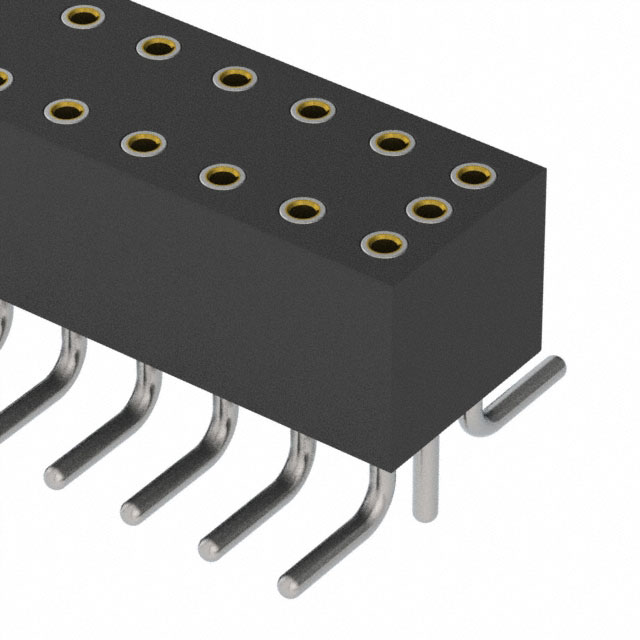

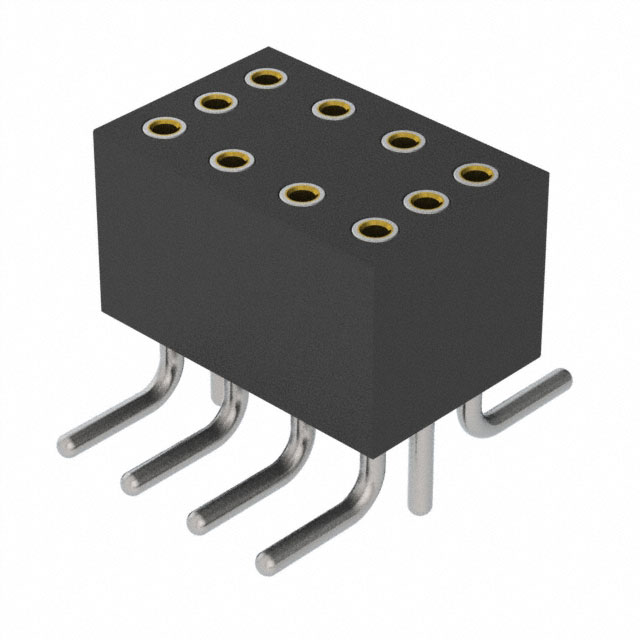

853-87 Series

Manufacturer: Preci-Dip

Catalog

Catalog

CONN SOCKET 10POS 0.05 GOLD PCB

...

Part	Insulation Material	Contact Shape	Contact Material	Fastening Type	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Insulation Height [z]	Insulation Height [z]	Row Spacing - Mating	Row Spacing - Mating	Number of Rows [custom]	Termination	Number of Positions	Connector Type	Mounting Type	Insulation Color	Material Flammability Rating	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Contact Finish - Post	Features	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Number of Positions [custom]

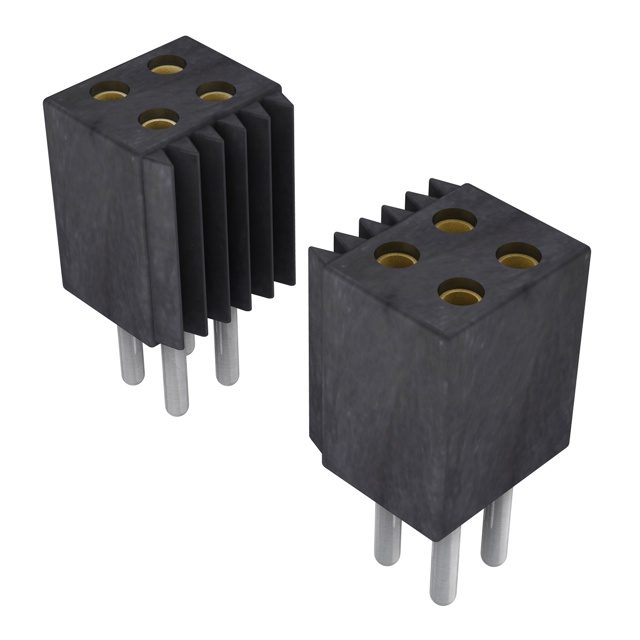

Preci-Dip 853-87-010-10-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Push-Pull	Flash	1.27 mm	0.05 in	-55 C	125 °C	Female Socket	4 mm	0.157 in	0.05 in	1.27 mm	2	Solder	10	Socket	Through Hole	Black	UL94 V-0	All	2.4 mm	0.094 in	Gold	Tin
Preci-Dip 853-87-044-30-051101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Push-Pull	Flash	1.27 mm	0.05 in	-55 C	125 °C	Female Socket					2	Solder	44	Socket	Surface Mount	Black	UL94 V-0	All			Gold	Tin	Board Guide	0.1 in	2.54 mm	5.16 mm	0.203 in
Preci-Dip 853-87-078-30-051101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Push-Pull	Flash	1.27 mm	0.05 in	-55 C	125 °C	Female Socket					2	Solder	78	Socket	Surface Mount	Black	UL94 V-0	All			Gold	Tin	Board Guide	0.1 in	2.54 mm	5.16 mm	0.203 in
Preci-Dip 853-87-008-30-051101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Push-Pull	Flash	1.27 mm	0.05 in	-55 C	125 °C	Female Socket					2	Solder	8	Socket	Surface Mount	Black	UL94 V-0	All			Gold	Tin	Board Guide	0.1 in	2.54 mm	5.16 mm	0.203 in

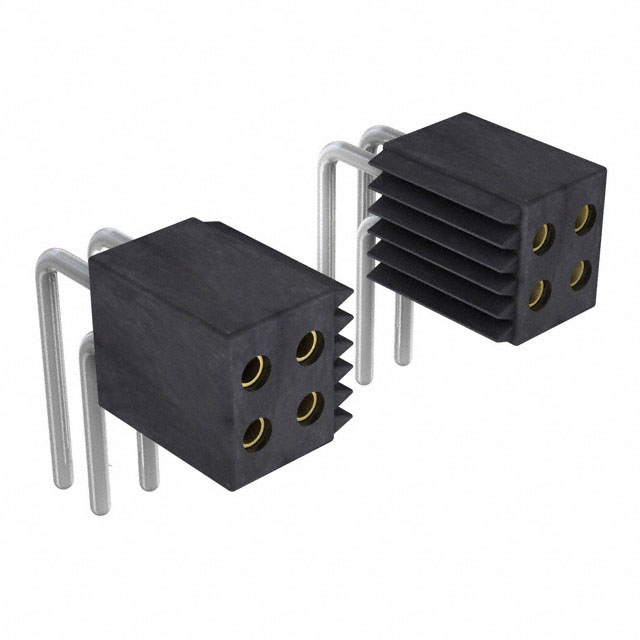

Preci-Dip 853-87-072-20-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Push-Pull	Flash	1.27 mm	0.05 in	-55 C	125 °C	Female Socket			0.05 in	1.27 mm	2	Solder	72	Socket	Right Angle Through Hole	Black	UL94 V-0	All	3.3 mm	0.13 "	Gold	Tin				3.25 mm	0.128 in
Preci-Dip 853-87-084-30-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Push-Pull	Flash	1.27 mm	0.05 in	-55 C	125 °C	Female Socket			0.05 in	1.27 mm	2	Solder		Socket	Surface Mount	Black	UL94 V-0	All			Gold	Tin				5.16 mm	0.203 in	84
Preci-Dip 853-87-058-30-051101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Push-Pull	Flash	1.27 mm	0.05 in	-55 C	125 °C	Female Socket					2	Solder	58	Socket	Surface Mount	Black	UL94 V-0	All			Gold	Tin	Board Guide	0.1 in	2.54 mm	5.16 mm	0.203 in
Preci-Dip 853-87-022-20-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Push-Pull	Flash	1.27 mm	0.05 in	-55 C	125 °C	Female Socket			0.05 in	1.27 mm	2	Solder	22	Socket	Right Angle Through Hole	Black	UL94 V-0	All	3.3 mm	0.13 "	Gold	Tin				3.25 mm	0.128 in
Preci-Dip 853-87-078-20-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Push-Pull	Flash	1.27 mm	0.05 in	-55 C	125 °C	Female Socket			0.05 in	1.27 mm	2	Solder	78	Socket	Right Angle Through Hole	Black	UL94 V-0	All	3.3 mm	0.13 "	Gold	Tin				3.25 mm	0.128 in
Preci-Dip 853-87-092-20-001101	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Beryllium Copper	Push-Pull	Flash	1.27 mm	0.05 in	-55 C	125 °C	Female Socket			0.05 in	1.27 mm	2	Solder	92	Socket	Right Angle Through Hole	Black	UL94 V-0	All	3.3 mm	0.13 "	Gold	Tin				3.25 mm	0.128 in
