65025 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

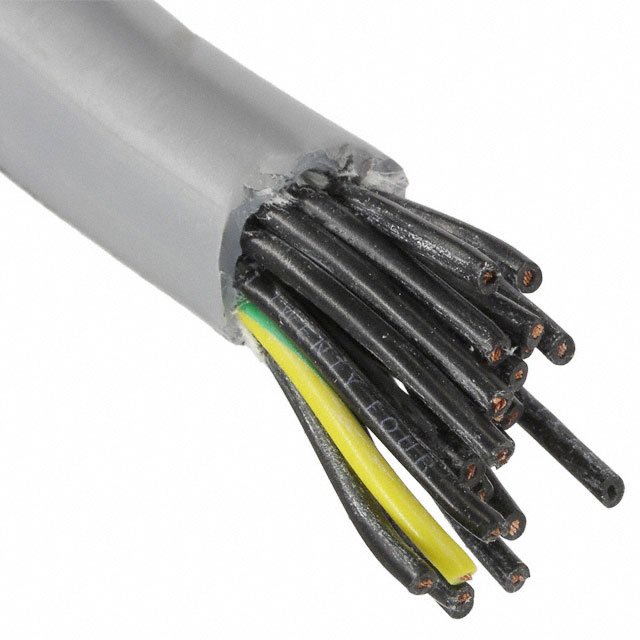

CABLE 25COND 20AWG SLATE 1000'
| Part | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Jacket (Insulation) Material | Length | Length | Number of Conductors [custom] | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Conductor Insulation | Wire Gauge | Cable Type | Voltage | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 10 | 30 AWG | Slate | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | 25 | Copper Bare | 15.62 mm | 0.615 in | Biological Compatibility | 1.397 mm | 0.055 in | ISO 10993 UL Style 2587 | Poly-Vinyl Chloride (PVC) | 20 AWG | Multi-Conductor | 600 V | ||
 ALPHA WIRE | 10 | 30 AWG | Slate | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | 25 | Copper Bare | 15.62 mm | 0.615 in | Biological Compatibility | 1.397 mm | 0.055 in | ISO 10993 UL Style 2587 | Poly-Vinyl Chloride (PVC) | 20 AWG | Multi-Conductor | 600 V | ||
ALPHA WIRE | 10 | 30 AWG | Slate | Poly-Vinyl Chloride (PVC) | 25 | Copper Bare | 15.62 mm | 0.615 in | Biological Compatibility | 1.397 mm | 0.055 in | ISO 10993 UL Style 2587 | Poly-Vinyl Chloride (PVC) | 20 AWG | Multi-Conductor | 600 V | 100 ft | 30.5 m |
