2342076 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
TERM BLOCK HDR 17POS 90DEG 3.5MM
| Part | Current - UL | Mounting Type | Header Orientation | Number of Levels | Pitch [x] | Pitch [x] | Color | Material Flammability Rating | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Mating Finish | Features | Contact Tail Length | Contact Tail Length | Type | Termination Style | Insulation Height | Insulation Height | Contact Material | Voltage - UL | Positions Per Level | Number of Positions | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 11 A | Through Hole | 90° Right Angle | 1 | 3.5 mm | 0.138 in | Black | UL94 V-0 | Polyamide (PA) Nylon | -40 °C | 105 ░C | Tin | High Temp Housing | 0.075 in | 1.9 mm | Header Male Pins Shrouded (4 Side) | Solder | 0.285 in | 7.25 mm | Copper Alloy | 300 V | 17 | ||
TE Connectivity Raychem Cable Protection | 11 A | Through Hole | 90° Right Angle | 1 | 3.5 mm | 0.138 in | Black | UL94 V-0 | Polyamide (PA) Nylon | -40 °C | 105 ░C | Tin | High Temp Housing | 0.075 in | 1.9 mm | Header Male Pins Shrouded (4 Side) | Solder | 0.285 in | 7.25 mm | Copper Alloy | 300 V | 10 | 10 | |

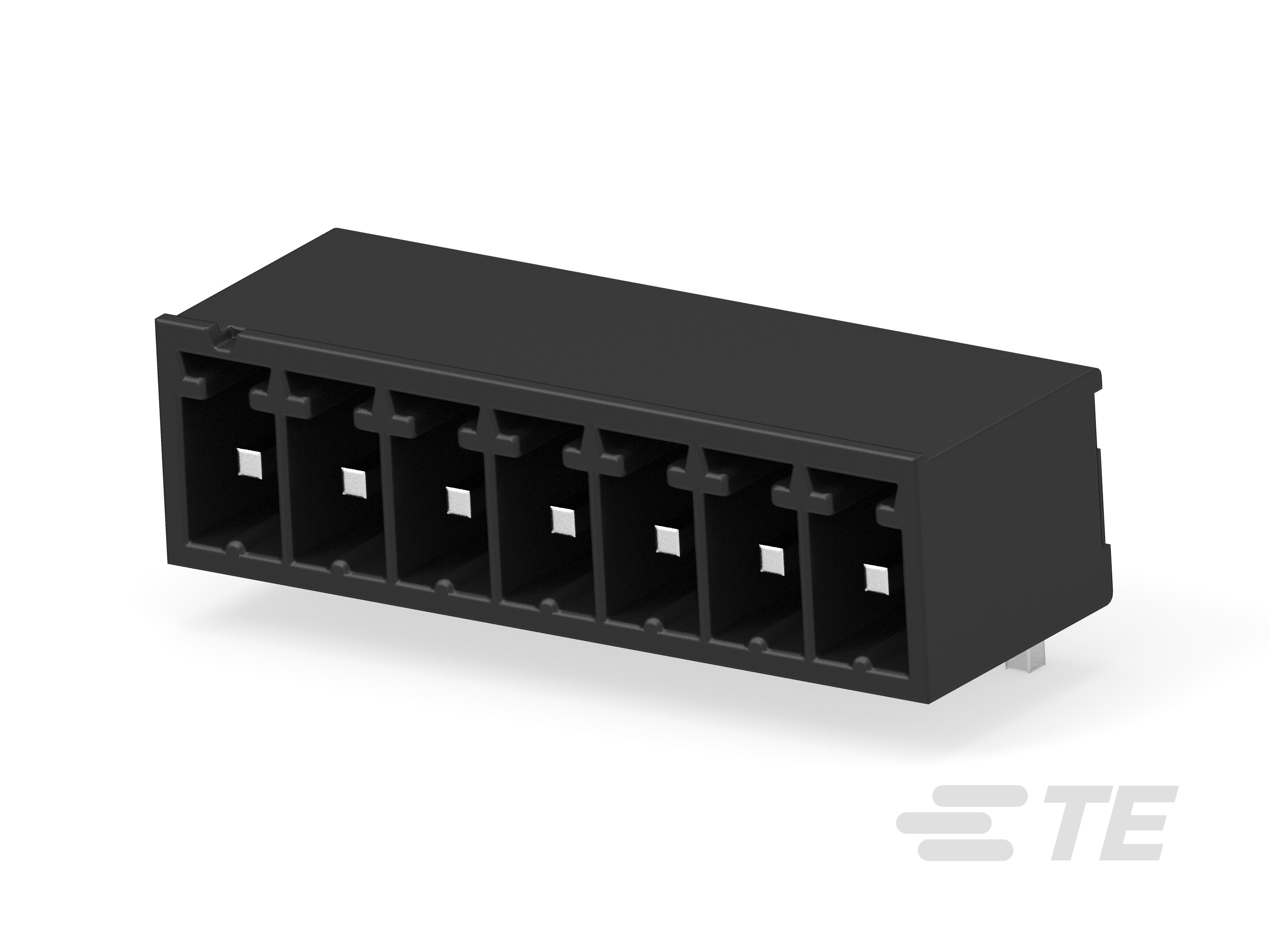

 TE Connectivity Raychem Cable Protection | 11 A | Through Hole | 90° Right Angle | 1 | 3.5 mm | 0.138 in | Black | UL94 V-0 | Polyamide (PA) Nylon | -40 °C | 105 ░C | Tin | High Temp Housing | 0.075 in | 1.9 mm | Header Male Pins Shrouded (4 Side) | Solder | 0.285 in | 7.25 mm | Copper Alloy | 300 V | 7 | 7 | |

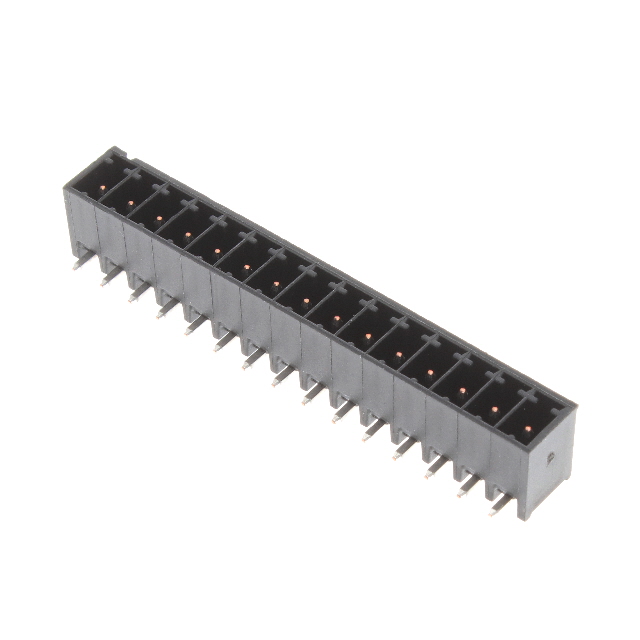

 TE Connectivity Raychem Cable Protection | 11 A | Through Hole | 90° Right Angle | 1 | 3.5 mm | 0.138 in | Black | UL94 V-0 | Polyamide (PA) Nylon | -40 °C | 105 ░C | Tin | High Temp Housing | 0.075 in | 1.9 mm | Header Male Pins Shrouded (4 Side) | Solder | 0.285 in | 7.25 mm | Copper Alloy | 300 V | 15 | 15 | |

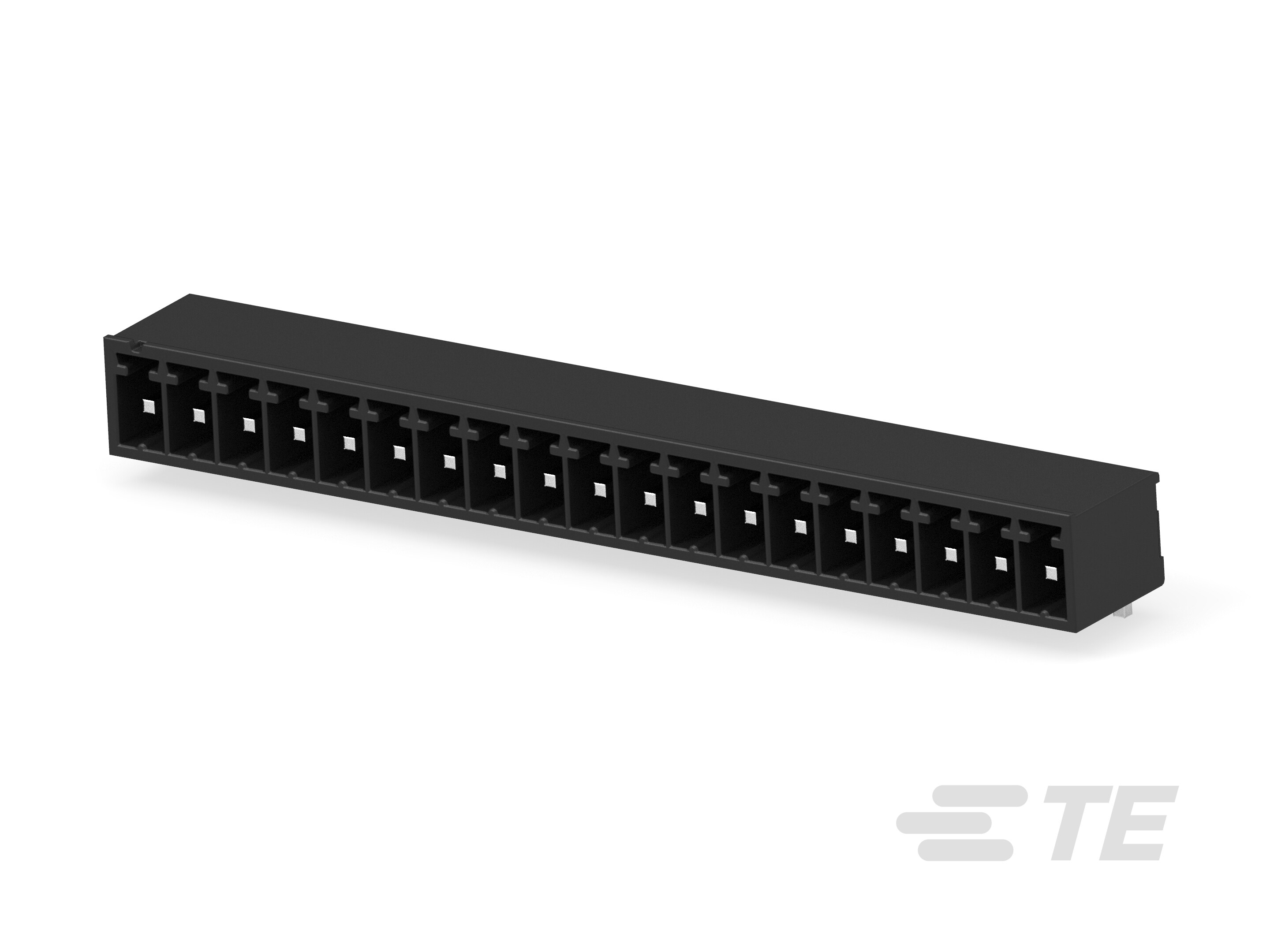

 TE Connectivity Raychem Cable Protection | 11 A | Through Hole | 90° Right Angle | 1 | 3.5 mm | 0.138 in | Black | UL94 V-0 | Polyamide (PA) Nylon | -40 °C | 105 ░C | Tin | High Temp Housing | 0.075 in | 1.9 mm | Header Male Pins Shrouded (4 Side) | Solder | 0.285 in | 7.25 mm | Copper Alloy | 300 V | 19 | 19 | |

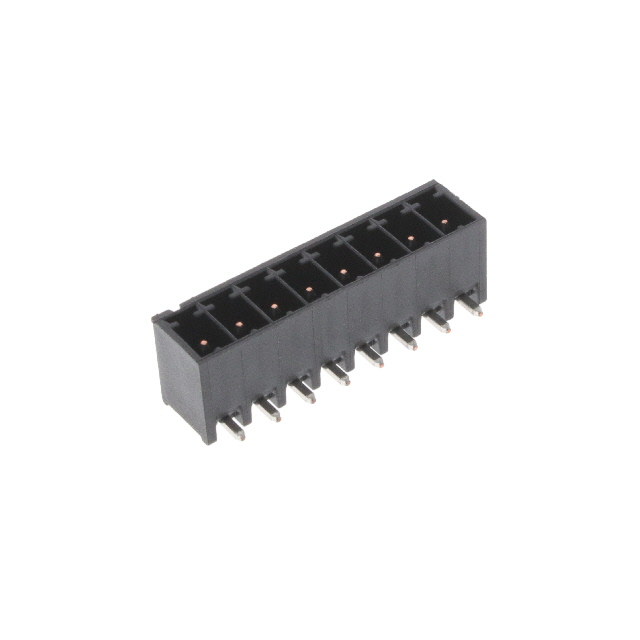

 TE Connectivity Raychem Cable Protection | 11 A | Through Hole | 90° Right Angle | 1 | 3.5 mm | 0.138 in | Black | UL94 V-0 | Polyamide (PA) Nylon | -40 °C | 105 ░C | Tin | High Temp Housing | 0.075 in | 1.9 mm | Header Male Pins Shrouded (4 Side) | Solder | 0.285 in | 7.25 mm | Copper Alloy | 300 V | 8 | 8 | |
 TE Connectivity Raychem Cable Protection | 11 A | Through Hole | 90° Right Angle | 1 | 3.5 mm | 0.138 in | Black | UL94 V-0 | Polyamide (PA) Nylon | -40 °C | 105 ░C | Tin | High Temp Housing | 0.075 in | 1.9 mm | Header Male Pins Shrouded (4 Side) | Solder | 0.285 in | 7.25 mm | Copper Alloy | 300 V | 16 | 16 | |

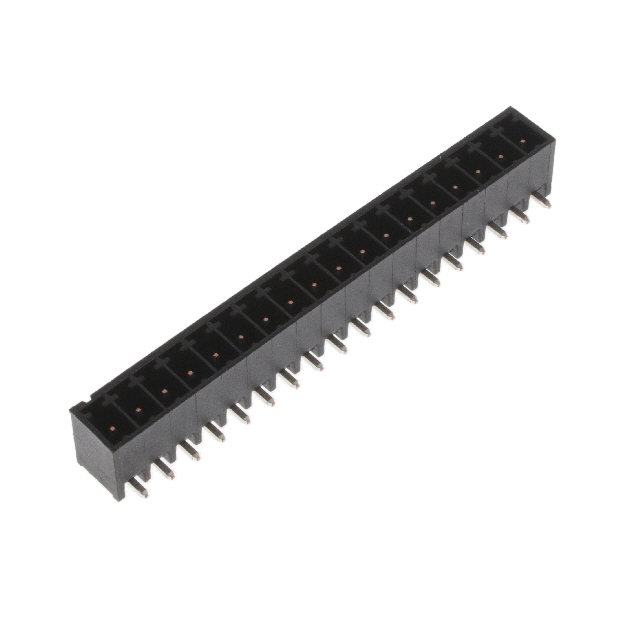

 TE Connectivity Raychem Cable Protection | 11 A | Through Hole | 90° Right Angle | 1 | 3.5 mm | 0.138 in | Black | UL94 V-0 | Polyamide (PA) Nylon | -40 °C | 105 ░C | Tin | High Temp Housing | 0.075 in | 1.9 mm | Header Male Pins Shrouded (4 Side) | Solder | 0.285 in | 7.25 mm | Copper Alloy | 300 V | 18 | 18 | |

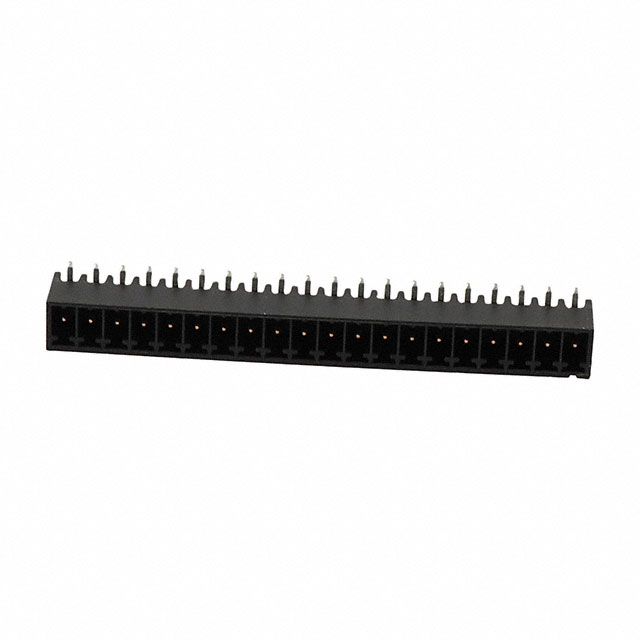

 TE Connectivity Raychem Cable Protection | 11 A | Through Hole | 90° Right Angle | 1 | 3.5 mm | 0.138 in | Black | UL94 V-0 | Polyamide (PA) Nylon | -40 °C | 105 ░C | Tin | High Temp Housing | 0.075 in | 1.9 mm | Header Male Pins Shrouded (4 Side) | Solder | 0.285 in | 7.25 mm | Copper Alloy | 300 V | 20 | 20 | |
 TE Connectivity Raychem Cable Protection | 11 A | Through Hole | 90° Right Angle | 1 | 3.5 mm | 0.138 in | Black | UL94 V-0 | Polyamide (PA) Nylon | -40 °C | 105 ░C | Tin | High Temp Housing | 0.075 in | 1.9 mm | Header Male Pins Shrouded (4 Side) | Solder | 0.285 in | 7.25 mm | Copper Alloy | 300 V | 21 | 21 |
