FCE17C37 Series

Manufacturer: Amphenol ICC (Commercial Products)

Catalog

CONN D-SUB PLUG 37POS SLDR CUP

Part	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Color	Material Flammability Rating	Number of Positions	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Contact Type	Connector Style	Connector Type	Number of Rows [custom]	Features	Mounting Type	Shell Size, Connector Layout	Shell Size, Connector Layout	Current Rating (Amps)	Termination	Flange Feature	Backset Spacing	Backset Spacing

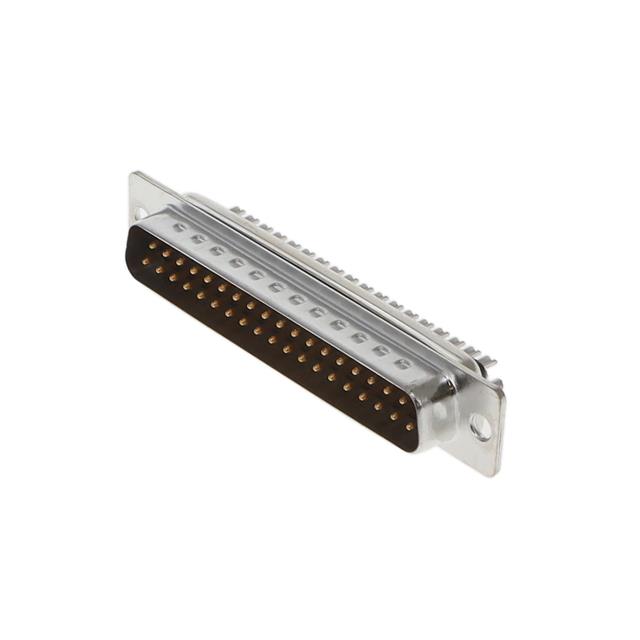

Amphenol ICC (Commercial Products) FCE17C37PM210	Phosphor Bronze	85 °C	-40 C	Thermoplastic Glass Filled	Black	UL94 V-0	37	Housing/Shell (Unthreaded)	0.38 µm	15 µin	Gold	Signal	D-Sub	Plug Male Pins	2	Filter Grounding Indents	Free Hanging (In-Line)	4	DC C	5 A
Amphenol ICC (Commercial Products) FCE17C37PE200	Phosphor Bronze	85 °C	-40 C	Thermoplastic Glass Filled	Black	UL94 V-0	37	Housing/Shell (Unthreaded)	0.38 µm	15 µin	Gold	Signal	D-Sub	Plug Male Pins	2	Filter Grounding Indents	Through Hole	4	DC C	5 A	Solder
Amphenol ICC (Commercial Products) FCE17C37SM2E0	Phosphor Bronze	85 °C	-40 C	Thermoplastic Glass Filled	Black	UL94 V-0	37	Housing/Shell (Unthreaded)	0.38 µm	15 µin	Gold	Signal	D-Sub	Receptacle Female Sockets	2	Filter	Free Hanging (In-Line)	4	DC C	5 A

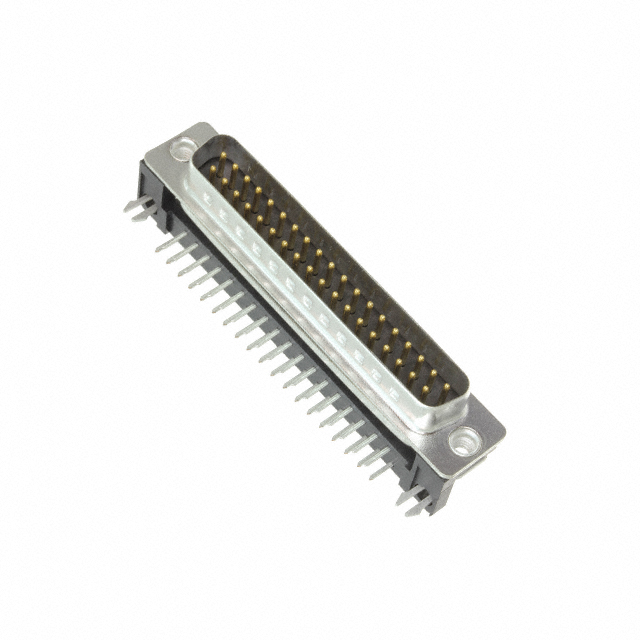

Amphenol ICC (Commercial Products) FCE17C37PA440	Phosphor Bronze	85 °C	-40 C	Thermoplastic Glass Filled	Black	UL94 V-0	37	Housing/Shell	0.38 µm	15 µin	Gold	Signal	D-Sub	Plug Male Pins	2	Board Lock Filter Grounding Indents	Right Angle Through Hole	4	DC C	5 A	Solder	4-40	8.08 mm	0.318 "
Amphenol ICC (Commercial Products) FCE17C37PM250	Phosphor Bronze	85 °C	-40 C	Thermoplastic Glass Filled	Black	UL94 V-0	37	Housing/Shell (Unthreaded)	0.38 µm	15 µin	Gold	Signal	D-Sub	Plug Male Pins	2	Filter Grounding Indents	Free Hanging (In-Line)	4	DC C	5 A
Amphenol ICC (Commercial Products) FCE17C37SA280	Phosphor Bronze	85 °C	-40 C	Thermoplastic Glass Filled	Black	UL94 V-0	37	Housing/Shell (Unthreaded)	0.38 µm	15 µin	Gold	Signal	D-Sub	Receptacle Female Sockets	2	Board Lock Filter	Right Angle Through Hole	4	DC C	5 A	Solder		8.08 mm	0.318 "

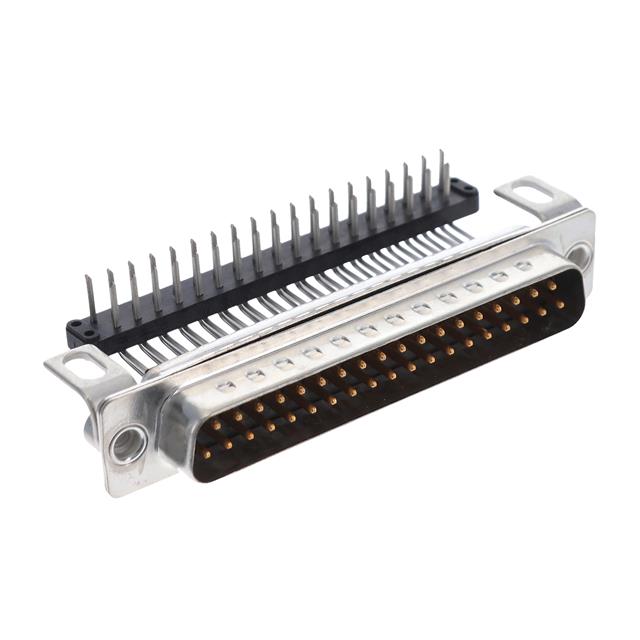

Amphenol ICC (Commercial Products) FCE17C37PC44B	Phosphor Bronze	85 °C	-40 C	Thermoplastic Glass Filled	Black	UL94 V-0	37	Board Side (4-40)	0.38 µm	15 µin	Gold	Signal	D-Sub	Plug Male Pins	2	Filter Grounding Indents Mounting Brackets	Right Angle Through Hole	4	DC C	5 A	Solder		14.99 mm	0.59 in

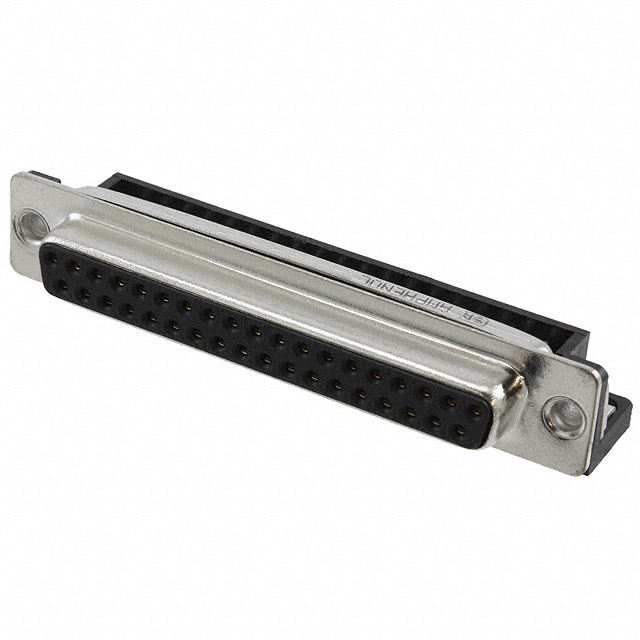

Amphenol ICC (Commercial Products) FCE17C37SA440	Phosphor Bronze	85 °C	-40 C	Thermoplastic Glass Filled	Black	UL94 V-0	37	Housing/Shell	0.38 µm	15 µin	Gold	Signal	D-Sub	Receptacle Female Sockets	2	Board Lock Filter	Right Angle Through Hole	4	DC C	5 A	Solder	4-40	8.08 mm	0.318 "
Amphenol ICC (Commercial Products) FCE17C37PE250	Phosphor Bronze	85 °C	-40 C	Thermoplastic Glass Filled	Black	UL94 V-0	37	Housing/Shell (Unthreaded)	0.38 µm	15 µin	Gold	Signal	D-Sub	Plug Male Pins	2	Filter Grounding Indents	Through Hole	4	DC C	5 A	Solder
Amphenol ICC (Commercial Products) FCE17C37PE480	Phosphor Bronze	85 °C	-40 C	Thermoplastic Glass Filled	Black	UL94 V-0	37	Board Side (4-40)	0.38 µm	15 µin	Gold	Signal	D-Sub	Plug Male Pins	2	Filter Grounding Indents	Through Hole	4	DC C	5 A	Solder
