Gp0 Series Series

Sealed Ultraminiature Pushbutton Switches

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Sealed Ultraminiature Pushbutton Switches

Part	Features	Current Rating (Amps)	Actuator Marking	Operating Temperature [Min]	Operating Temperature [Max]	Color - Actuator/Cap	Switch Function	Actuator Type	Voltage Rating - DC	Voltage Rating - AC	Ingress Protection	Type	Termination Style	Circuit	Electrical Life	Mechanical Life	Mounting Type
Littelfuse/Commercial Vehicle Products GP12MSABE(T&R)	Epoxy Sealed Terminals	0.4 VA	No Marking	-30 ░C	85 °C	White	On-Mom	Round Plunger	20 V	20 V	IP57 - Dust Protected Waterproof	Standard	Gull Wing	SPDT	40000 Cycles	40000 Cycles	Surface Mount Right Angle

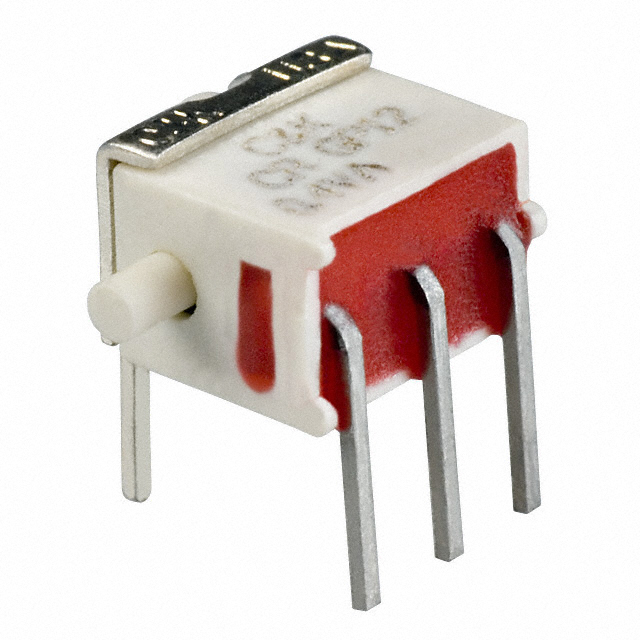

Littelfuse/Commercial Vehicle Products GP12MAKE	Epoxy Sealed Terminals	0.4 VA	No Marking	-30 ░C	85 °C	White	On-Mom	Round Plunger	20 V	20 V	IP57 - Dust Protected Waterproof	Standard	PC Pin	SPDT	40000 Cycles	40000 Cycles	Through Hole Right Angle

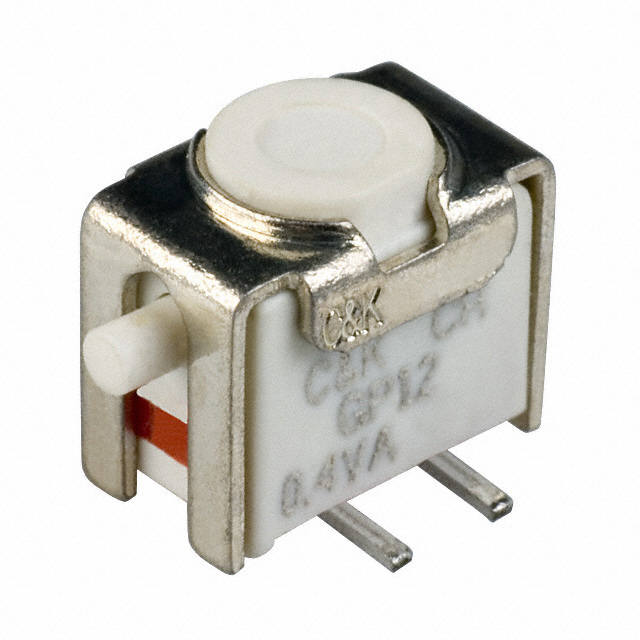

Littelfuse/Commercial Vehicle Products GP12MSV1BE	Epoxy Sealed Terminals	0.4 VA	No Marking	-30 ░C	85 °C	White	On-Mom	Round Plunger	20 V	20 V	IP57 - Dust Protected Waterproof	Standard	Gull Wing	SPDT	40000 Cycles	40000 Cycles	Right Angle Surface Mount Vertical
Littelfuse/Commercial Vehicle Products GP12MSAKE	Epoxy Sealed Terminals	0.4 VA	No Marking	-30 ░C	85 °C	White	On-Mom	Round Plunger	20 V	20 V	IP57 - Dust Protected Waterproof	Standard	Gull Wing	SPDT	40000 Cycles	40000 Cycles	Surface Mount Right Angle

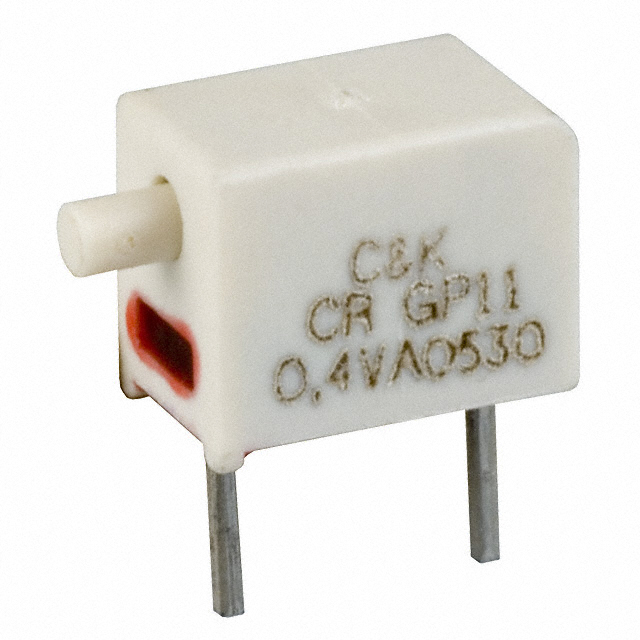

Littelfuse/Commercial Vehicle Products GP11MCBE	Epoxy Sealed Terminals	0.4 VA	No Marking	-30 ░C	85 °C	White	Off-Mom	Round Plunger	20 V	20 V	IP57 - Dust Protected Waterproof	Standard	PC Pin	SPST-NO	40000 Cycles	40000 Cycles	Through Hole Right Angle
Littelfuse/Commercial Vehicle Products GP12MSV1KE	Epoxy Sealed Terminals	0.4 VA	No Marking	-30 ░C	85 °C	White	On-Mom	Round Plunger	20 V	20 V	IP57 - Dust Protected Waterproof	Standard	Gull Wing	SPDT	40000 Cycles	40000 Cycles	Right Angle Surface Mount Vertical

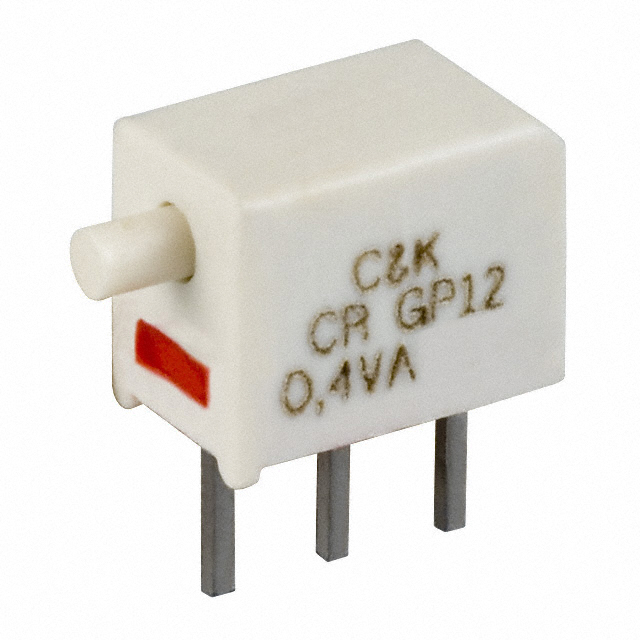

Littelfuse/Commercial Vehicle Products GP12MCBE	Epoxy Sealed Terminals	0.4 VA	No Marking	-30 ░C	85 °C	White	On-Mom	Round Plunger	20 V	20 V	IP57 - Dust Protected Waterproof	Standard	PC Pin	SPDT	40000 Cycles	40000 Cycles	Through Hole Right Angle
Littelfuse/Commercial Vehicle Products GP12MABE	Epoxy Sealed Terminals	0.4 VA	No Marking	-30 ░C	85 °C	White	On-Mom	Round Plunger	20 V	20 V	IP57 - Dust Protected Waterproof	Standard	PC Pin	SPDT	40000 Cycles	40000 Cycles	Through Hole Right Angle
Littelfuse/Commercial Vehicle Products GP12MSA1BE	Epoxy Sealed Terminals	0.4 VA	No Marking	-30 ░C	85 °C	White	On-Mom	Round Plunger	20 V	20 V	IP57 - Dust Protected Waterproof	Standard	Gull Wing	SPDT	40000 Cycles	40000 Cycles	Surface Mount Right Angle
Littelfuse/Commercial Vehicle Products GP11MCKE	Epoxy Sealed Terminals	0.4 VA	No Marking	-30 ░C	85 °C	White	Off-Mom	Round Plunger	20 V	20 V	IP57 - Dust Protected Waterproof	Standard	PC Pin	SPST-NO	40000 Cycles	40000 Cycles	Through Hole Right Angle

Catalog

Sealed Ultraminiature Pushbutton Switches

Key Features

• Process compatible, withstands most soldering and washing processes

• Sealed construction - internal o-ring and epoxy base

• Ultraminiature design saves space

Description

The GP series of sealed ultraminiature pushbutton switches from C&K are used in instrumentation and equipment in the medical and telecommunications industries because of their reliability in even the harshest conditions. Designed to save space, GP series switches are process compatible, withstand most soldering and washing processes and feature a sealed construction with an internal o-ring and an epoxy base.
