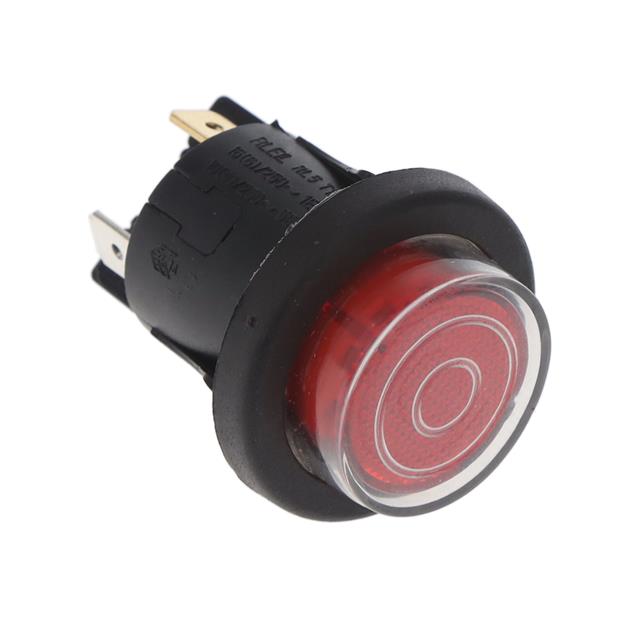

PR141 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH PUSHBUTTON SPST 16A 125V
| Part | Electrical Life | Illumination Voltage (Nominal) | Panel Cutout Dimensions [diameter] | Circuit | Ingress Protection | Termination Style | Current Rating (Amps) | Type | Features | Mounting Type | Illumination Type, Color | Actuator Type | Color - Actuator/Cap | Actuator Marking | Voltage Rating - AC | Switch Function | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 10000 Cycles | 125 VAC | 25 mm | SPST | IP54 - Dust Protected Water Resistant | Quick Connect - 0.250" (6.3mm) | 16 A | Illuminated Standard | PVC Cap and Frame | Panel Mount Snap-In | Neon Red | Button Round | Clear | No Marking | 125 V | Off-On | -20 ░C | 105 ░C |
 E-Switch | 10000 Cycles | 24 VAC/DC | 25 mm | SPST | Quick Connect - 0.250" (6.3mm) | 16 A | Illuminated Standard | Panel Mount Snap-In | Incandescent Red | Button Round | Red | No Marking | 125 V | Off-On | -20 ░C | 105 ░C | ||
E-Switch | 10000 Cycles | 12 VAC/DC | 25 mm | SPST | Quick Connect - 0.250" (6.3mm) | 16 A | Illuminated Standard | Panel Mount Snap-In | Incandescent Red | Button Round | Red | No Marking | 125 V | Off-On | -20 ░C | 105 ░C |
