19302060 Series
Manufacturer: HARTING
Beta
⌘K

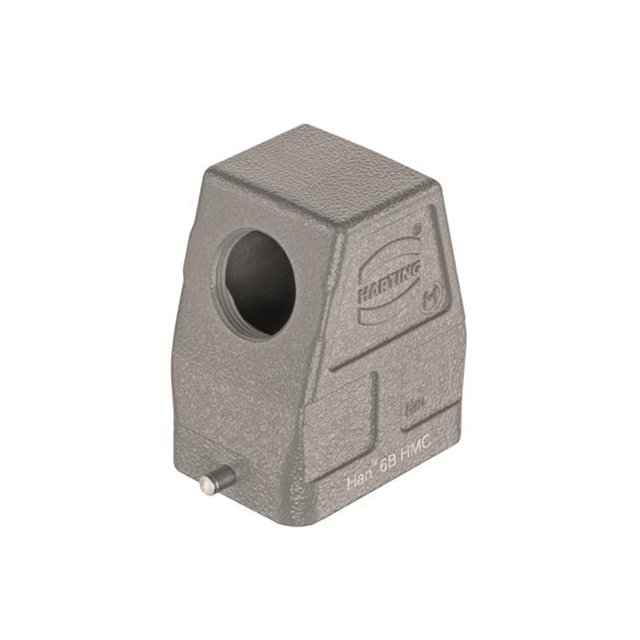

HOOD, SIDE ENTRY, 6B, M25, 1 LEVER
| Part | Housing Finish | Thread Size | Operating Temperature [Max] | Operating Temperature [Min] | Housing Material | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size | Features | Lock Location | Ingress Protection | Housing Color | Style | Connector Type | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Powder Coated | M25 | 125 °C | -40 C | Aluminum Die Cast | 57 mm | 82 mm | 2.906 in | 3.228 in | 73.8 mm | 2.244 " | 6B | Feed Through | Locking Clip (1) on Base Bottom | IP65 - Dust Tight Water Resistant | Gray | Side Entry Dual | Base - Box Mount | ||
 HARTING | Powder Coated | M32 | 125 °C | -40 C | Aluminum Die Cast | 60 mm | 2.913 in | 2.362 in | 1.693 " | 6B | Cable to Cable | Locking Clip (1) on Hood | IP65 - Dust Tight Water Resistant | Gray | Top Entry Top or Bottom Entry | Hood - Coupling | 43 mm | 74 mm | ||
 HARTING | Powder Coated | M25 | 125 °C | -40 C | Aluminum Die Cast | 59.5 mm | 2.835 " | 2.343 " | 1.693 " | 6B | Locking Clip (1) on Base Bottom | IP65 - Dust Tight Water Resistant | Gray | Side Entry | Hood | 43 mm | 72 mm |
