WP3V Series

Catalog

LED GRN/YLW DIFFUSED T-1 T/H

Part	Package / Case	Wavelength - Peak	Wavelength - Dominant	Lens Color	Mounting Type	Configuration	Lens Transparency	Size / Dimension [diameter]	Color	Supplier Device Package	Millicandela Rating [custom]	Millicandela Rating [custom]	Current - Test	Lens Size	Lens Size	Voltage - Forward (Vf) (Typ)	Height (Max) [Max] [z]	Viewing Angle	Lens Style	Millicandela Rating	Wavelength - Dominant	Current - Test [custom]	Current - Test [custom]	Wavelength - Peak

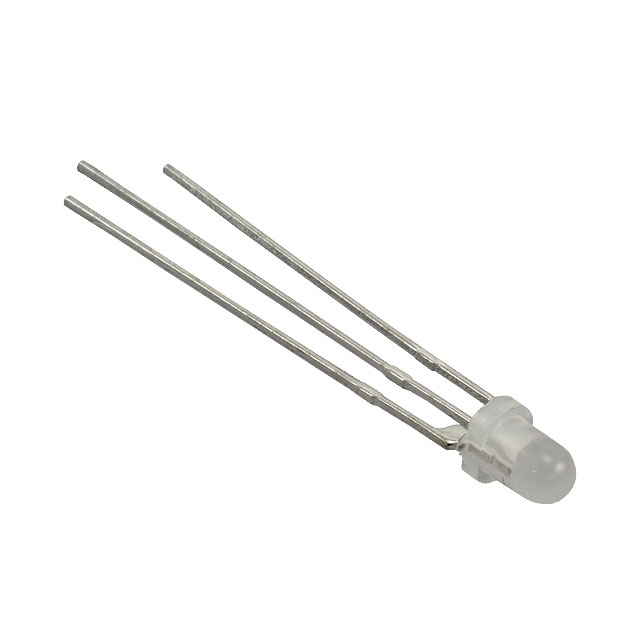

Kingbright WP3VGYW	Radial - 3 Leads	565nm Green 590nm Yellow	568nm Green 588nm Yellow	White	Through Hole	Common Cathode	Diffused	3 mm	Green Yellow	T-1	40 mcd	15 mcd	20 mA 20 mA	3 mm	T-1	2.1 V 2.2 V	6.93 mm	60 °	Round with Domed Top

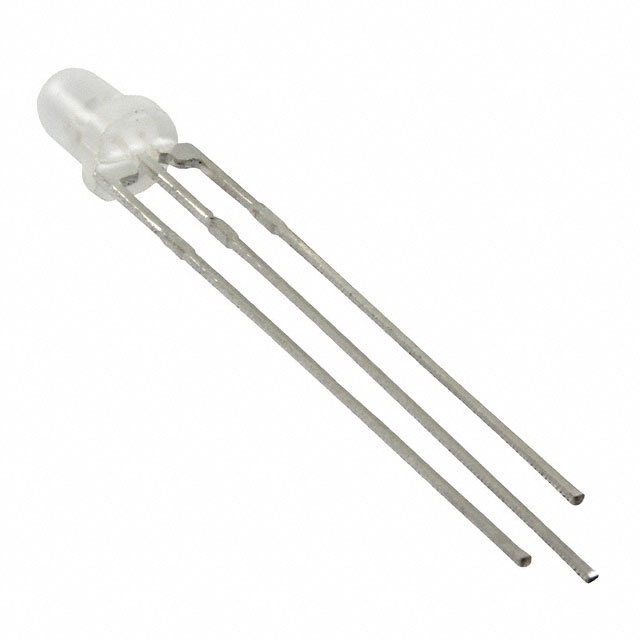

Kingbright WP3VEGW	Radial - 3 Leads			White	Through Hole	Common Cathode	Diffused	3 mm	Green Red	T-1				3 mm	T-1	2 V 2.2 V	6.93 mm	60 °	Round with Domed Top	30 mcd 40 mcd	568 nm 617 nm	20 mA	20 mA	565 nm 627 nm
Kingbright WP3VEYW	Radial - 3 Leads		588nm Yellow 617nm Red	White	Through Hole	Common Cathode	Diffused	3 mm	Red Yellow	T-1			20 mA 20 mA	3 mm	T-1	2 V 2.1 V	6.93 mm	60 °	Round with Domed Top	15 mcd 30 mcd				590 nm 627 nm
