G125-MV1 Series

Catalog

5+5 POS. MALE DIL VERTICAL THROUGHBOARD CONN. NO LATCHES (T+R) ROHS COMPLIANT: YES

Part	Mated Stacking Heights	Mounting Type	Contact Shape	Insulation Material	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Material Flammability Rating	Insulation Color	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Style	Features	Contact Type	Fastening Type	Insulation Height	Insulation Height	Contact Material	Contact Finish - Mating	Shrouding	Pitch - Mating	Pitch - Mating	Number of Rows [custom]	Contact Length - Post	Contact Length - Post	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions Loaded	Number of Positions [custom]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mated Stacking Heights [z]	Voltage Rating	Contact Finish - Post

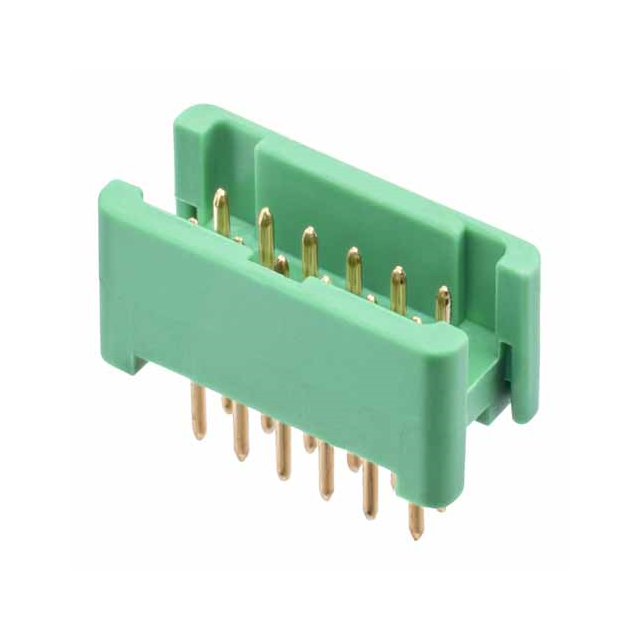

Harwin Inc. G125-MV11005L0R	7.25 mm 7.35 mm 7.7 mm	Through Hole	Circular	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	2 A	8 µin	0.203 µm	Solder	UL94 V-0	Green	Header	1.25 mm	0.049 in	Board to Board Cable	Board Lock Pick and Place	Male Pin	Push-Pull	4.9 mm	0.193 "	Phosphor Bronze	Gold	Shrouded - 4 Wall	0.049 in	1.25 mm	2	0.118 in	3 mm	10	150 °C	-65 ░C	All

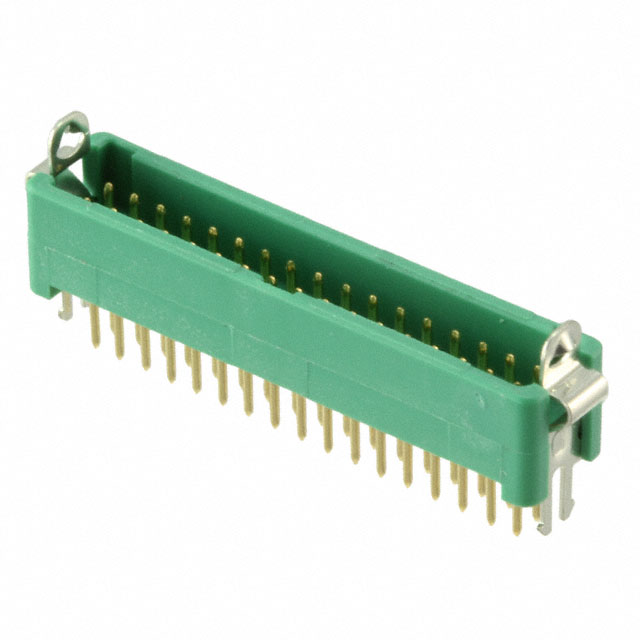

Harwin Inc. G125-MV13405L1P	7.25 mm 7.35 mm 7.7 mm	Through Hole	Circular	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	2 A	8 µin	0.203 µm	Solder	UL94 V-0	Green	Header	1.25 mm	0.049 in	Board to Board Cable	Board Lock Pick and Place	Male Pin	Latch Lock	4.9 mm	0.193 "	Phosphor Bronze	Gold	Shrouded - 4 Wall	0.049 in	1.25 mm	2	0.118 in	3 mm		150 °C	-65 ░C	All	34

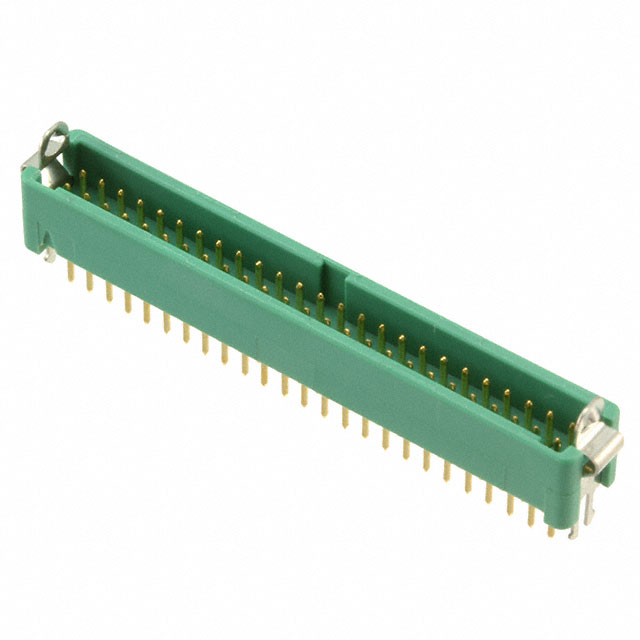

Harwin Inc. G125-MV15005L1P	7.25 mm 7.35 mm 7.7 mm	Through Hole	Circular	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	2 A	8 µin	0.203 µm	Solder	UL94 V-0	Green	Header	1.25 mm	0.049 in	Board to Board Cable	Board Lock Pick and Place	Male Pin	Latch Lock	4.9 mm	0.193 "	Phosphor Bronze	Gold	Shrouded - 4 Wall	0.049 in	1.25 mm	2	0.118 in	3 mm	50	150 °C	-65 ░C	All
Harwin Inc. G125-MV11605M2P		Through Hole	Circular	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	2 A	8 µin	0.203 µm	Solder	UL94 V-0	Green	Header	1.25 mm	0.049 in	Board to Board Cable	Mating Flange Mounting Flange Pick and Place	Male Pin	Threaded	4.9 mm	0.193 "	Phosphor Bronze	Gold	Shrouded - 4 Wall	0.049 in	1.25 mm	2	0.118 in	3 mm	16	150 °C	-65 ░C	All

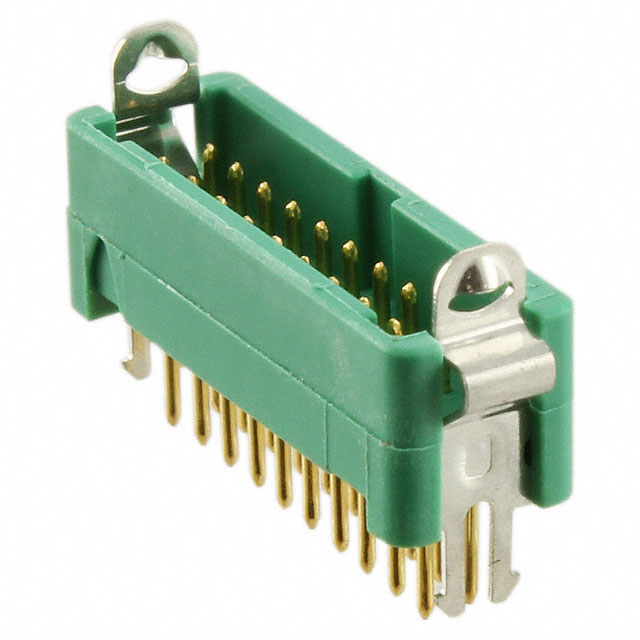

Harwin Inc. G125-MV12005L1P	7.25 mm 7.35 mm 7.7 mm	Through Hole	Circular	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	2 A	8 µin	0.203 µm	Solder	UL94 V-0	Green	Header	1.25 mm	0.049 in	Board to Board Cable	Board Lock Pick and Place	Male Pin	Latch Lock	4.9 mm	0.193 "	Phosphor Bronze	Gold	Shrouded - 4 Wall	0.049 in	1.25 mm	2	0.118 in	3 mm	20	150 °C	-65 ░C	All

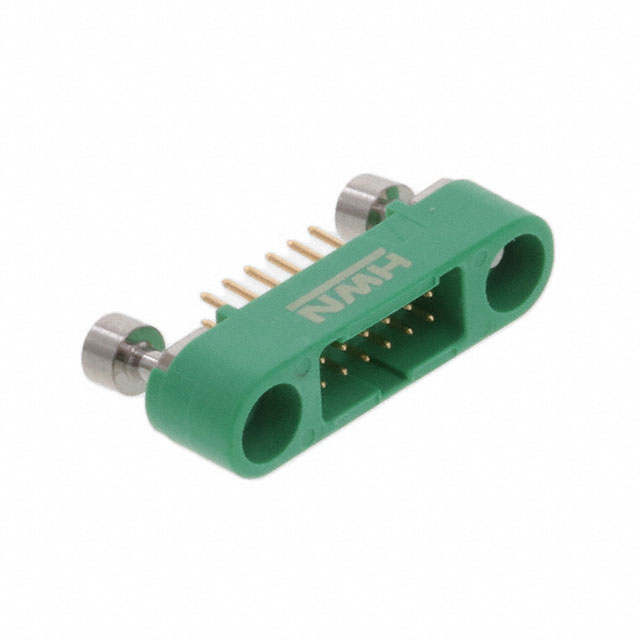

Harwin Inc. G125-MV11205M3P		Through Hole	Circular	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	2 A	8 µin	0.203 µm	Solder	UL94 V-0	Green	Header	1.25 mm	0.049 in	Board to Board Cable	Mating Flange Mounting Flange Pick and Place	Male Pin		4.9 mm	0.193 "	Phosphor Bronze	Gold	Shrouded - 4 Wall	0.049 in	1.25 mm	2	0.118 in	3 mm	12	150 °C	-65 ░C	All		0.203 µm	8 µin	7.25 mm 7.33 mm	450 V	Gold

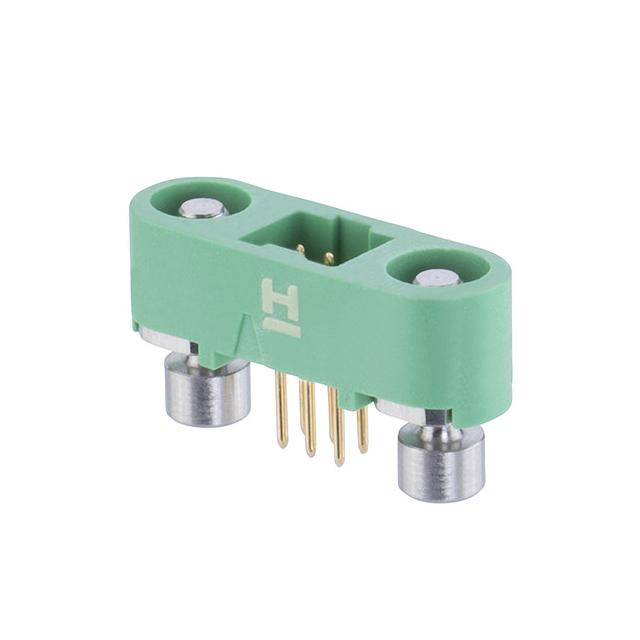

Harwin Inc. G125-MV10605M3R		Through Hole	Circular	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	2 A	8 µin	0.203 µm	Solder	UL94 V-0	Green	Header	1.25 mm	0.049 in	Board to Board Cable	Mating Flange Mounting Flange Pick and Place Polarizing Key	Male Pin	Threaded	4.9 mm	0.193 "	Phosphor Bronze	Gold	Shrouded - 4 Wall	0.049 in	1.25 mm	2	0.118 in	3 mm	6	150 °C	-65 ░C	All		0.203 µm	8 µin	7.25 mm 7.33 mm	450 V	Gold

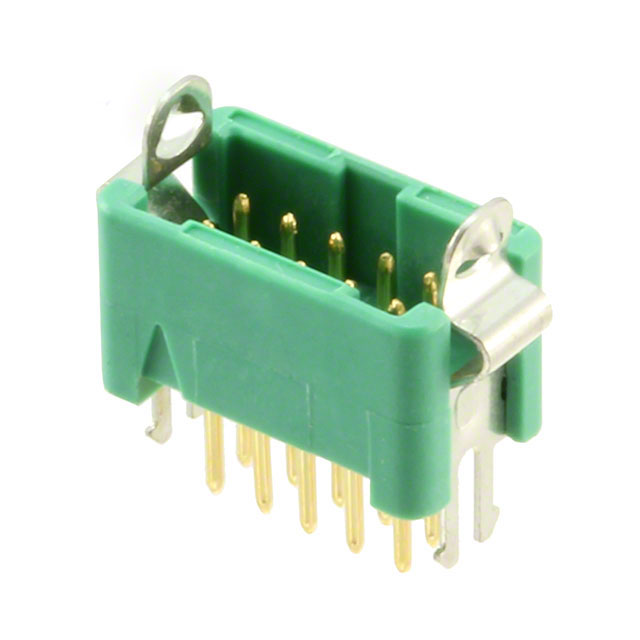

Harwin Inc. G125-MV11005L1P	7.25 mm 7.35 mm 7.7 mm	Through Hole	Circular	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	2 A	8 µin	0.203 µm	Solder	UL94 V-0	Green	Header	1.25 mm	0.049 in	Board to Board Cable	Board Lock Pick and Place	Male Pin	Latch Lock	4.9 mm	0.193 "	Phosphor Bronze	Gold	Shrouded - 4 Wall	0.049 in	1.25 mm	2	0.118 in	3 mm	10	150 °C	-65 ░C	All

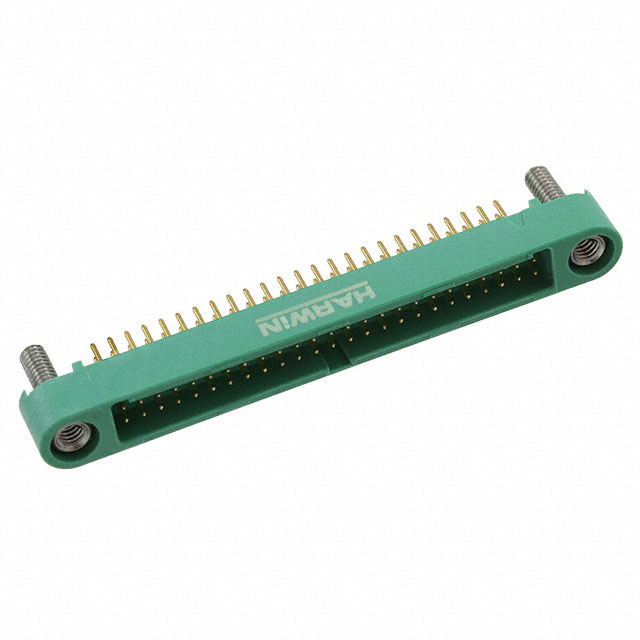

Harwin Inc. G125-MV15005M2P	7.35 mm 7.45 mm 7.8 mm	Through Hole	Circular	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	2 A	8 µin	0.203 µm	Solder	UL94 V-0	Green	Header	1.25 mm	0.049 in	Board to Board Cable	Mating Flange Mounting Flange Pick and Place	Male Pin	Threaded	4.9 mm	0.193 "	Phosphor Bronze	Gold	Shrouded - 4 Wall	0.049 in	1.25 mm	2	0.118 in	3 mm	50	150 °C	-65 ░C	All					450 V

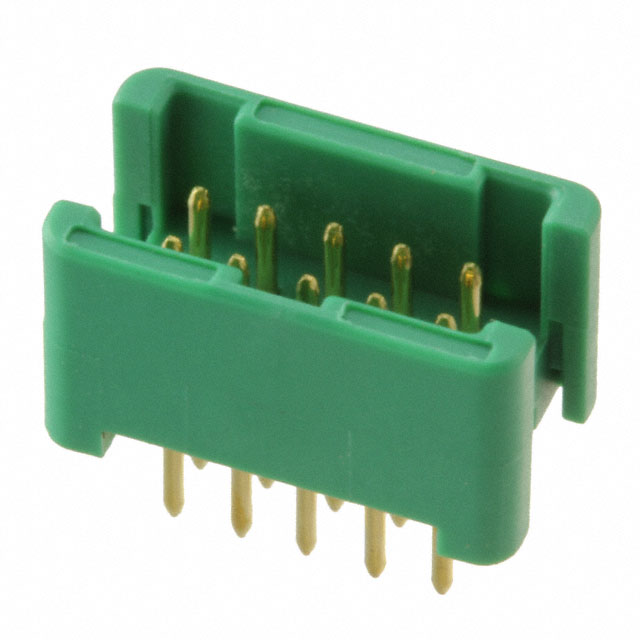

Harwin Inc. G125-MV11005L0P	7.25 mm 7.35 mm 7.7 mm	Through Hole	Circular	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	2 A	8 µin	0.203 µm	Solder	UL94 V-0	Green	Header	1.25 mm	0.049 in	Board to Board Cable	Board Lock Pick and Place	Male Pin	Push-Pull	4.9 mm	0.193 "	Phosphor Bronze	Gold	Shrouded - 4 Wall	0.049 in	1.25 mm	2	0.118 in	3 mm	10	150 °C	-65 ░C	All
