KC0WAM-P Series
Manufacturer: ODU
Beta
⌘K

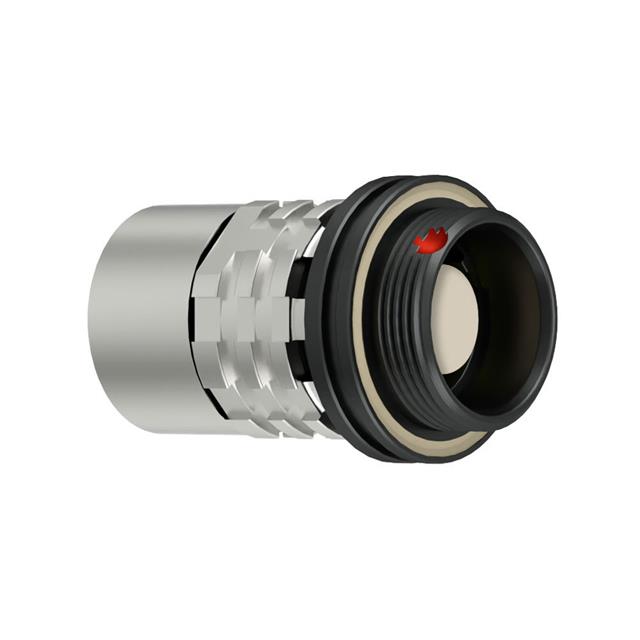

ODU AMC HD RCEPT, INLINE, STY C,
| Part | Ingress Protection | Color | Contact Finish - Mating | Current Rating (Amps) | Orientation | Fastening Type | Connector Type | Shell Material | Backshell Material, Plating | Applications | Material Flammability Rating | Shell Finish | Primary Material | Mounting Type | Shielding | Number of Positions [custom] | Number of Positions [custom] | Cable Opening | Cable Opening | Features | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Insert Material | Shell Size - Insert [custom] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IP68 - Dust Tight Waterproof | Black Silver | Gold | 1 A 5 A | A | Threaded | Receptacle Female Sockets | Brass | Brass Ruthenium over Electroless Nickel | Industrial Medical Military | UL94 V-0 | Ruthenium over Electroless Nickel | Metal | Free Hanging (In-Line) | Shielded | 2 | 10 | 0.276 in | 7 mm | Backshell | Copper Alloy | -51 °C | 125 °C | Polyetheretherketone (PEEK) | 0 | 50 µin | 1.27 µm |
