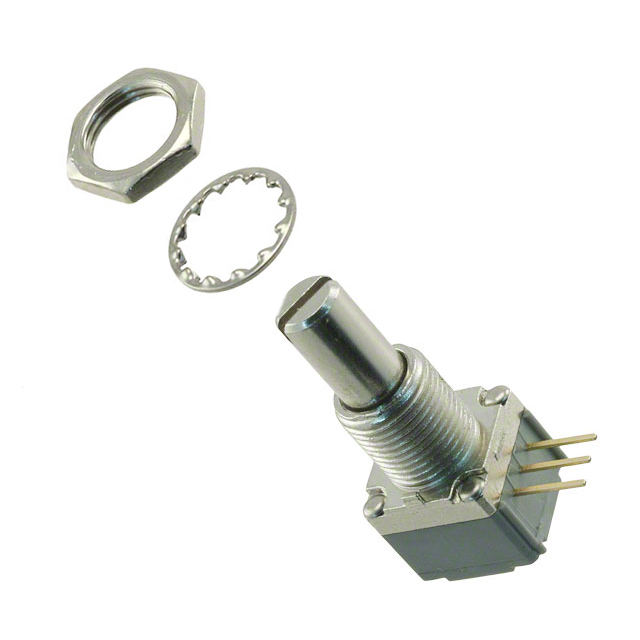

P260P Series

Catalog

POT 10K OHM 1/4W PLASTIC R-LOG

Part	Termination Style	Bushing Thread	Features	Rotation	Resistance (Ohms)	Taper	Tolerance	Built in Switch	Resistive Material	Number of Gangs	Size - Body [x]	Size - Body [x]	Size - Body [y]	Size - Body [y]	Actuator Type	Mounting Type	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Actuator Length [x]	Actuator Length [x]	Power (Watts)	Power (Watts)	Adjustment Type	Number of Turns	Resistance (Ohms) [custom]	Resistance (Ohms)	Size - Body [z]	Size - Body [z]
TT Electronics/BI P260P-D1BF2CC10K	PC Pins	3/8-32	Sealed	295 °	10k	Reverse Logarithmic	10 %	None	Conductive Plastic	1	0.5 "	12.7 mm	0.5 "	12.7 mm	Flatted	Panel Mount	6.35 mm	0.25 in	0.63 in	16 mm	0.25 W	0.25 W	Side Adjustment	1
TT Electronics/BI P260P-S2BF4CA200K	PC Pins	3/8-32	Sealed	295 °		Logarithmic	10 %	None	Conductive Plastic	2	0.5 "	12.7 mm	0.5 "	12.7 mm	Flatted	Panel Mount	6.35 mm	0.25 in	0.945 in	24 mm	0.25 W	0.25 W	Side Adjustment	1
TT Electronics/BI P260P-D1AS1CB50K	PC Pins	1/4-32	Sealed	295 °		Linear	10 %	None	Conductive Plastic	1	0.5 "	12.7 mm	0.5 "	12.7 mm	Slotted	Panel Mount	3.2 mm	0.126 in	0.472 in	12 mm	0.5 W	0.5 W	Side Adjustment	1	50 kOhms
TT Electronics/BI P260P-D1BS3CB100	PC Pins	3/8-32	Sealed	295 °		Linear	10 %	None	Conductive Plastic	1	0.5 "	12.7 mm	0.5 "	12.7 mm	Slotted	Panel Mount	6.35 mm	0.25 in	0.787 in	20 mm	0.5 W	0.5 W	Side Adjustment	1	100 Ohms
TT Electronics/BI P260P-S2AS1CB20K	PC Pins	1/4-32	Sealed	295 °		Linear	10 %	None	Conductive Plastic	2	0.5 "	12.7 mm	0.5 "	12.7 mm	Slotted	Panel Mount	3.2 mm	0.126 in	0.472 in	12 mm	0.5 W	0.5 W	Side Adjustment	1		20 kOhms
TT Electronics/BI P260P-S1AS2CB5K	PC Pins	1/4-32	Sealed	295 °		Linear	10 %	None	Conductive Plastic	1	0.5 "	12.7 mm	0.5 "	12.7 mm	Slotted	Panel Mount	3.2 mm	0.126 in	0.63 in	16 mm	0.5 W	0.5 W	Side Adjustment	1		5 kOhms
TT Electronics/BI P260P-S2BS3CB500K	PC Pins	3/8-32	Sealed	295 °		Linear	10 %	None	Conductive Plastic	2	0.5 "	12.7 mm	0.5 "	12.7 mm	Slotted	Panel Mount	6.35 mm	0.25 in	0.787 in	20 mm	0.5 W	0.5 W	Side Adjustment	1		500 kOhms
TT Electronics/BI P260P-S2BS3CA10K	PC Pins	3/8-32		295 °	10k	Logarithmic	10 %	None	Conductive Plastic	2	0.5 "	12.7 mm	0.5 "	12.7 mm	Slotted	Panel Mount	6.35 mm	0.25 in	0.787 in	20 mm	0.25 W	0.25 W	Side Adjustment	1			12.7 mm	0.5 "
TT Electronics/BI P260P-S2BF4CA500K	PC Pins	3/8-32	Sealed	295 °		Logarithmic	10 %	None	Conductive Plastic	2	0.5 "	12.7 mm	0.5 "	12.7 mm	Flatted	Panel Mount	6.35 mm	0.25 in	0.945 in	24 mm	0.25 W	0.25 W	Side Adjustment	1		500 kOhms
TT Electronics/BI P260P-D1AF3CB10K	PC Pins	1/4-32	Sealed	295 °	10k	Linear	10 %	None	Conductive Plastic	1	0.5 "	12.7 mm	0.5 "	12.7 mm	Flatted	Panel Mount	3.2 mm	0.126 in	0.787 in	20 mm	0.5 W	0.5 W	Side Adjustment	1
