745-056 Series
Manufacturer: EDAC Inc.
Beta
⌘K

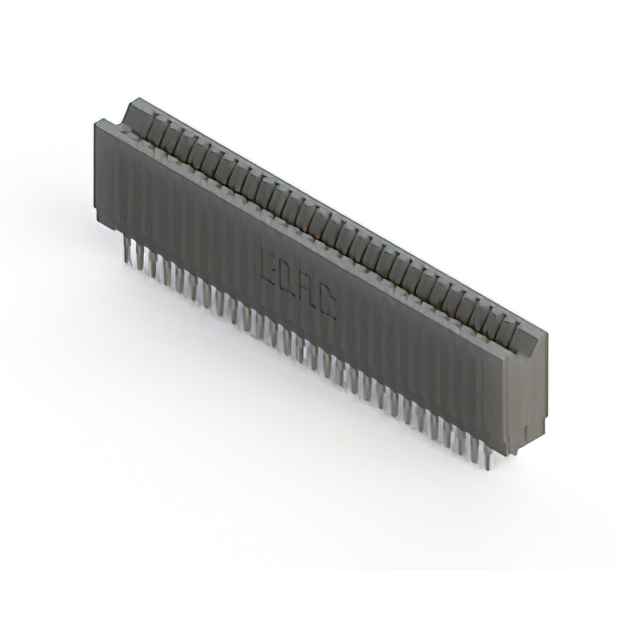

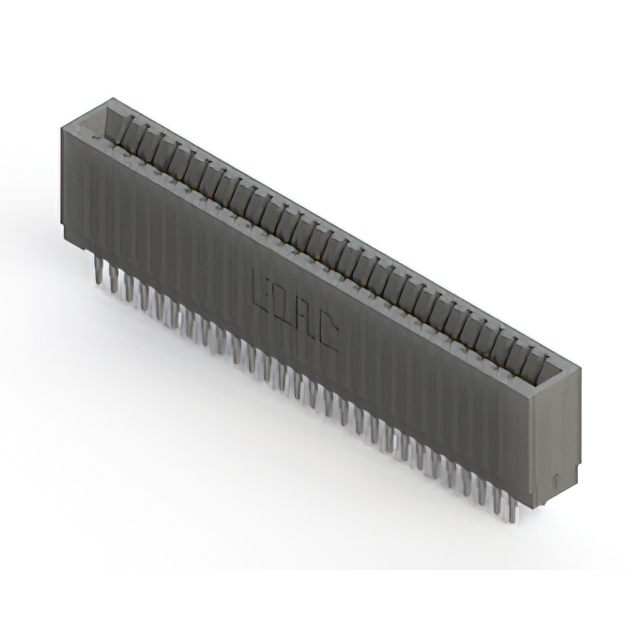

CONN EDGE DUAL FMALE 56POS 0.100
| Part | Termination Rows [custom] | Material - Insulation | Number of Positions/Bay/Row | Contact Type | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Read Out | Pitch | Pitch | Termination | Gender | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Color | Number of Positions | Card Type | Number of Rows [custom] | Termination Rows | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | 28 | Cantilever | Copper Alloy | -40 C | 105 ░C | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 0.1 " | 2.54 mm | Press-Fit | Female | Through Hole | 30 Áin | 0.76 Ám | Black | 56 | Non Specified - Dual Edge | 2 | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | 28 | Cantilever | Copper Alloy | -40 C | 105 ░C | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 0.1 " | 2.54 mm | Press-Fit | Female | Through Hole | 30 Áin | 0.76 Ám | Black | 56 | Non Specified - Dual Edge | 2 | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | 28 | Cantilever | Copper Alloy | -40 C | 105 ░C | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 0.1 " | 2.54 mm | Press-Fit | Female | Through Hole | 30 Áin | 0.76 Ám | Black | 56 | Non Specified - Dual Edge | 2 | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | 28 | Cantilever | Copper Alloy | -40 C | 105 ░C | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 0.1 " | 2.54 mm | Press-Fit | Female | Through Hole | 30 Áin | 0.76 Ám | Black | 56 | Non Specified - Dual Edge | 2 | ||
 EDAC Inc. | Polyester Thermoplastic | 56 | Cantilever | Copper Alloy | -40 C | 105 ░C | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 0.1 " | 2.54 mm | Press-Fit Wire Wrap | Female | Through Hole | 30 Áin | 0.76 Ám | Black | 56 | Non Specified - Single Edge | 1 | 1 | ||
 EDAC Inc. | Polyester Thermoplastic | 56 | Cantilever | Copper Alloy | -40 C | 105 ░C | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 0.1 " | 2.54 mm | Press-Fit | Female | Through Hole | 30 Áin | 0.76 Ám | Black | 56 | Non Specified - Single Edge | 1 | 1 | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | 28 | Cantilever | Copper Alloy | -40 C | 105 ░C | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 0.1 " | 2.54 mm | Press-Fit | Female | Through Hole | 30 Áin | 0.76 Ám | Black | 56 | Non Specified - Dual Edge | 2 |
