2506-4 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

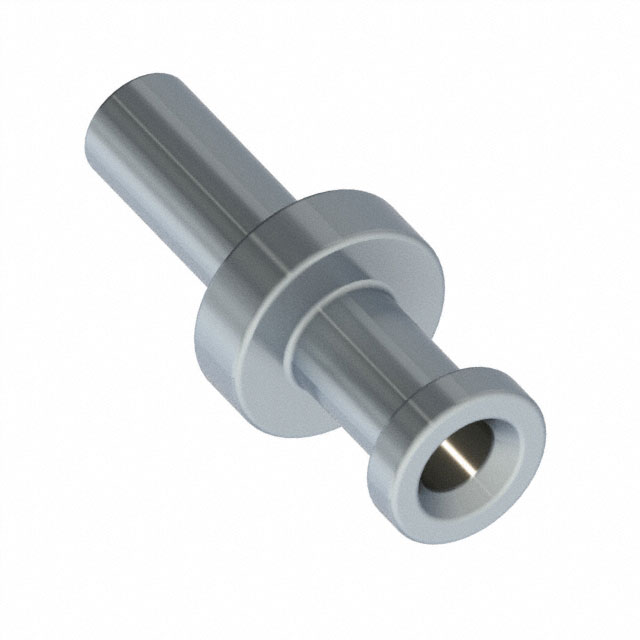

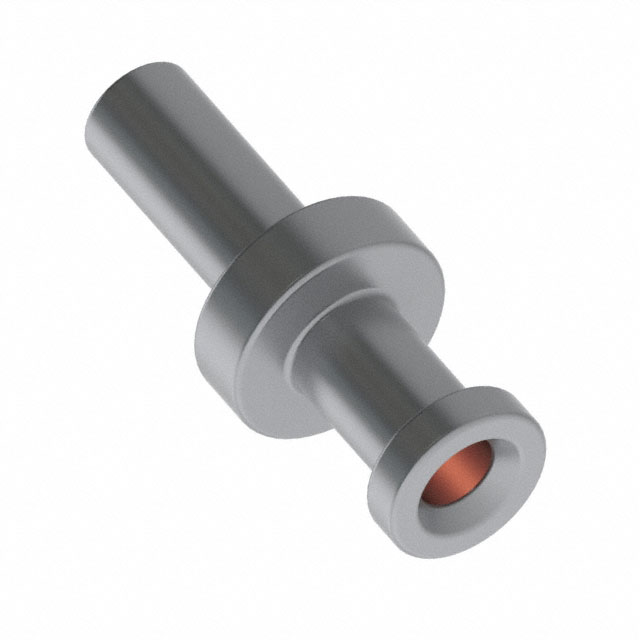

TERM TURRET SINGLE L=3.96MM
| Part | Contact Finish | Termination | Mounting Type | Diameter - Turret Head [diameter] | Diameter - Turret Head [diameter] | Staking Side OD [diameter] | Staking Side OD [diameter] | Board Thickness | Board Thickness | Contact Material | Length - Above Board | Length - Above Board | Length - Overall [x] | Length - Overall [x] | Terminal Type | Length - Below Flange [x] | Length - Below Flange [x] | Number of Turrets | Flange Diameter | Flange Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Staking Side ID | Staking Side ID | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Tin-Lead | Swage | Through Hole | 2.36 mm | 0.093 in | 1.57 mm | 0.062 in | 3.18 mm | 0.125 in | Brass Alloy | 3.96 mm | 0.156 in | 0.303 " | 7.7 mm | Single End | 0.147 in | 3.73 mm | Single | 3.18 mm | 0.125 in | 200 Áin | 5.08 Ám | 0.043 in | 1.09 mm | 1.7 mm | 0.067 " | Non-Insulated |
 Mill-Max Manufacturing Corp. | Silver | Swage | Through Hole | 2.36 mm | 0.093 in | 1.57 mm | 0.062 in | 3.18 mm | 0.125 in | Brass Alloy | 3.96 mm | 0.156 in | 0.303 " | 7.7 mm | Single End | 0.147 in | 3.73 mm | Single | 3.18 mm | 0.125 in | 300 µin | 7.62 µm | 0.043 in | 1.09 mm | 1.7 mm | 0.067 " | Non-Insulated |
