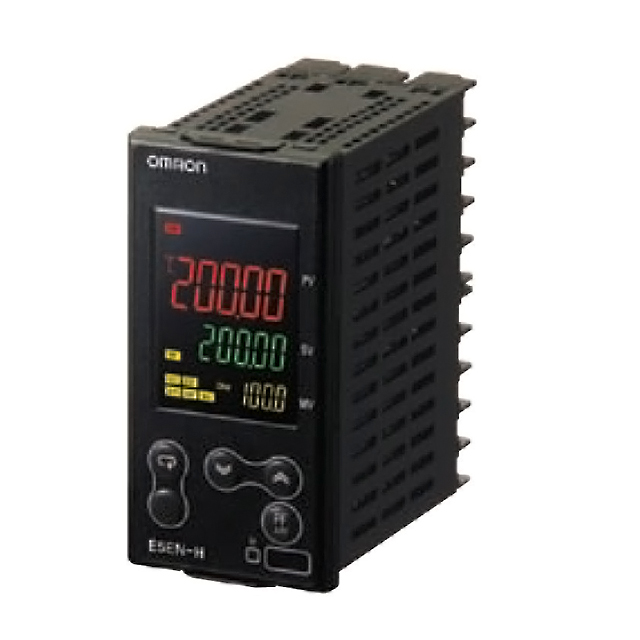

E5EN-HA Series

Manufacturer: Omron Automation and Safety

Catalog

TEMPERATURE CONTROLLERS HIGH-FUNCTION 1/8DIN OPT OUT

Part	Operating Temperature [Max]	Operating Temperature [Min]	Weight	Weight	Input Range [Min]	Input Range [Max]	Termination Style	Output Type	Communications	Number of Characters Per Row	Control Method	Display Characters - Height	Features	Display Type	Ingress Protection	Type	Mounting Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage - Supply	Voltage - Supply [Max]	Voltage - Supply [Min]
Omron Automation and Safety E5EN-HAA2HBMD-500 AC/DC24	55 °C	-10 °C	0.573 lb	259.91 g	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	Screw Terminal	Option Cards Available Relay (2)	Option Cards Available	4 5	On/Off Proportional (PID)	0.228 in 0.319 in 0.465 in	Event Input Heater Fault Detection Option Cards Available	Backlight Tri Color Characters	IP66 - Dust Tight Water Resistant	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)	Panel Mount	45 mm	92 mm	24 VAC
Omron Automation and Safety E5EN-HAA3BFMD-500 AC/DC24	55 °C	-10 °C	0.573 lb	259.91 g	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	Screw Terminal	Option Cards Available Relay (3)	Option Cards Available	4 5	On/Off Proportional (PID)	0.228 in 0.319 in 0.465 in	Event Input Option Cards Available	Backlight Tri Color Characters	IP66 - Dust Tight Water Resistant	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)	Panel Mount	45 mm	92 mm	24 VAC
Omron Automation and Safety E5EN-HAA2HHBFM-500 AC100-240	55 °C	-10 °C	0.573 lb	259.91 g	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	Screw Terminal	Option Cards Available Relay (2)	Option Cards Available	4 5	On/Off Proportional (PID)	0.228 in 0.319 in 0.465 in	Event Input Heater Fault Detection Option Cards Available	Backlight Tri Color Characters	IP66 - Dust Tight Water Resistant	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)	Panel Mount	45 mm	92 mm		240 VAC	100 VAC
Omron Automation and Safety E5EN-HAA2HBM-W-500 AC100-240	55 °C	-10 °C	0.573 lb	259.91 g	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	Screw Terminal	Option Cards Available Relay (2)	Option Cards Available	4 5	On/Off Proportional (PID)	0.228 in 0.319 in 0.465 in	Event Input Heater Fault Detection Option Cards Available	Backlight Tri Color Characters	IP66 - Dust Tight Water Resistant	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)	Panel Mount	45 mm	92 mm		240 VAC	100 VAC
Omron Automation and Safety E5EN-HAA3BFM-500 AC100-240	55 °C	-10 °C	0.573 lb	259.91 g	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	Screw Terminal	Option Cards Available Relay (3)	Option Cards Available	4 5	On/Off Proportional (PID)	0.228 in 0.319 in 0.465 in	Event Input Heater Fault Detection Option Cards Available	Backlight Tri Color Characters	IP66 - Dust Tight Water Resistant	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)	Panel Mount	45 mm	92 mm		240 VAC	100 VAC
Omron Automation and Safety E5EN-HAA2HHBFMD-500 AC/DC24	55 °C	-10 °C	0.573 lb	259.91 g	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	Screw Terminal	Option Cards Available Relay (2)	Option Cards Available	4 5	On/Off Proportional (PID)	0.228 in 0.319 in 0.465 in	Event Input Heater Fault Detection Option Cards Available	Backlight Tri Color Characters	IP66 - Dust Tight Water Resistant	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)	Panel Mount	45 mm	92 mm	24 VAC
Omron Automation and Safety E5EN-HAA2HBM-500 AC100-240	55 °C	-10 °C	0.573 lb	259.91 g	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	Screw Terminal	Option Cards Available Relay (2)	Option Cards Available	4 5	On/Off Proportional (PID)	0.228 in 0.319 in 0.465 in	Event Input Heater Fault Detection Option Cards Available	Backlight Tri Color Characters	IP66 - Dust Tight Water Resistant	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)	Panel Mount	45 mm	92 mm		240 VAC	100 VAC
Omron Automation and Safety E5EN-HAA2HHBFM-W-500 AC100-240	55 °C	-10 °C	0.573 lb	259.91 g	-200 °C 0 V 0 A	10 V 20 mA 2300 °C	Screw Terminal	Option Cards Available Relay (2)	Option Cards Available	4 5	On/Off Proportional (PID)	0.228 in 0.319 in 0.465 in	Event Input Heater Fault Detection Option Cards Available	Backlight Tri Color Characters	IP66 - Dust Tight Water Resistant	Process Temperature Controller (RTD Type B E J K L N PLII R S T U W)	Panel Mount	45 mm	92 mm		240 VAC	100 VAC
