RFN-1006 Series
Manufacturer: RF Industries
Beta
⌘K

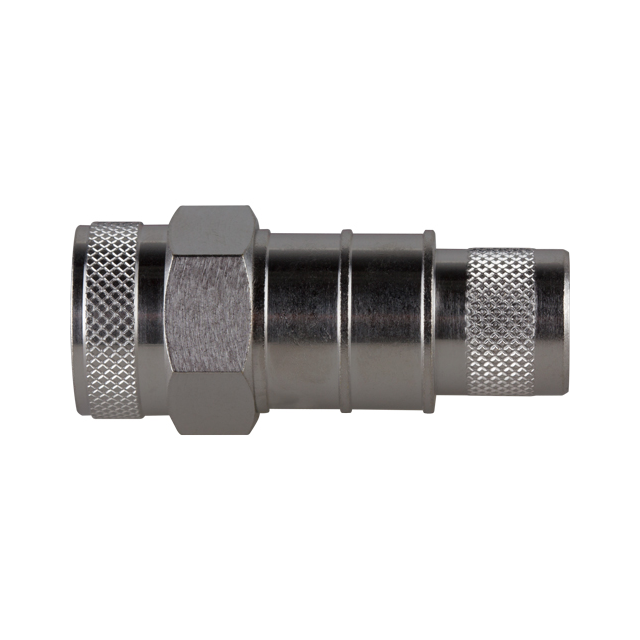

N MALE CRIMP; 50 OHMS
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Dielectric Material | Body Material | Voltage Rating | Body Finish | Center Contact Material | Connector Type | Mounting Type | Cable Group | Shield Termination | Impedance | Connector Style | Contact Termination | Number of Ports | Fastening Type | Housing Color | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RF Industries | -65 ░C | 85 °C | Gold | Polytetrafluoroethylene (PTFE) | Brass | 1000 VDC | White Bronze | Brass | Plug Male Pin | Free Hanging (In-Line) | LMR-600 | Crimp | 50 Ohms | N Type | Crimp | 1 | Threaded | Silver | 11 GHz |
