0398-0 Series

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Tail Diameter [diameter]	Tail Diameter [diameter]	Contact Material	Flange Diameter [diameter]	Flange Diameter [diameter]	Length - Overall	Length - Overall	Socket Depth	Socket Depth	Termination	Contact Finish	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Tail Type
Mill-Max Manufacturing Corp. 0398-0-15-15-06-14-04-0	-55 C	125 °C	0.051 in	1.3 mm	0.51 mm	0.02 in	Beryllium Copper	2.18 mm	0.086 in	0.378 "	9.6 mm	0.22 in	5.59 mm	Press-Fit	Gold	0.066 in	1.68 mm	0.25 Ám	10 Áin	Standard Tail

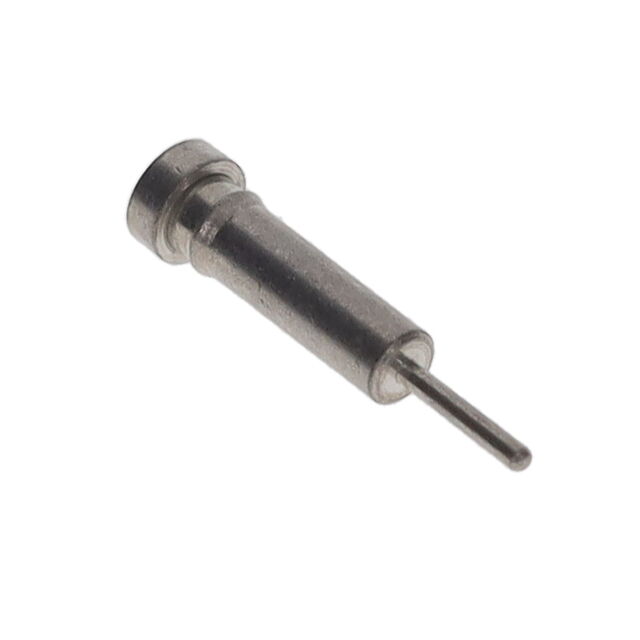

Mill-Max Manufacturing Corp. 0398-0-15-01-06-01-04-0	-55 C	125 °C	0.051 in	1.3 mm	0.51 mm	0.02 in	Beryllium Copper	2.18 mm	0.086 in	0.378 "	9.6 mm	0.22 in	5.59 mm	Press-Fit	Tin-Lead	0.066 in	1.68 mm	5.08 Ám	200 Áin	Standard Tail
Mill-Max Manufacturing Corp. 0398-0-15-01-06-27-04-0	-55 C	125 °C	0.051 in	1.3 mm	0.51 mm	0.02 in	Beryllium Copper	2.18 mm	0.086 in	0.378 "	9.6 mm	0.22 in	5.59 mm	Press-Fit	Gold	0.066 in	1.68 mm	0.76 Ám	30 Áin	Standard Tail

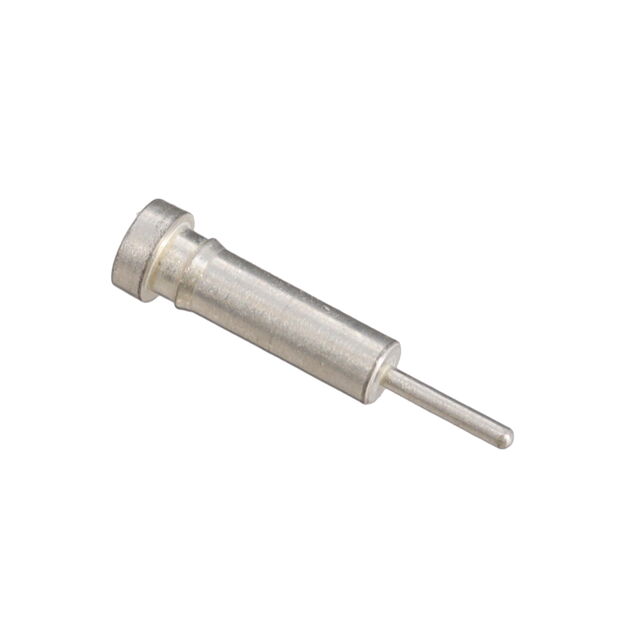

Mill-Max Manufacturing Corp. 0398-0-15-80-06-27-04-0	-55 C	125 °C	0.051 in	1.3 mm	0.51 mm	0.02 in	Beryllium Copper	2.18 mm	0.086 in	0.378 "	9.6 mm	0.22 in	5.59 mm	Press-Fit	Gold	0.066 in	1.68 mm	0.76 Ám	30 Áin	Standard Tail
Mill-Max Manufacturing Corp. 0398-0-15-80-06-14-04-0	-55 C	125 °C	0.051 in	1.3 mm	0.51 mm	0.02 in	Beryllium Copper	2.18 mm	0.086 in	0.378 "	9.6 mm	0.22 in	5.59 mm	Press-Fit	Gold	0.066 in	1.68 mm	0.25 Ám	10 Áin	Standard Tail
