EASR3212 Series

Manufacturer: Everlight Electronics Co Ltd

Catalog

LED WHITE DIFFUSED 2SMD

Part	Mounting Type	Current - Test	Supplier Device Package	Lens Style	Height (Max) [Max] [z]	Lens Transparency	Configuration	Size / Dimension [x]	Size / Dimension [y]	Lens Color	Voltage - Forward (Vf) (Typ)	Color	Millicandela Rating	Lens Size [x]	Lens Size [y]	Package / Case	Viewing Angle	Wavelength - Peak	Wavelength - Dominant	Current - Test [custom]	Current - Test [custom]	Wavelength - Dominant	Millicandela Rating [custom]	Millicandela Rating [custom]
Everlight Electronics Co Ltd EASR3212WA3	Surface Mount	5 mA	2-SMD	Rectangle with Flat Top	1.2 mm	Diffused	Standard	3.2 mm	1.25 mm	Yellow	2.8 V	White	85 mcd	1.4 mm	1.25 mm	1206 (3216 Metric)	140 °
Everlight Electronics Co Ltd EASR3212RGA2	Surface Mount		2-SMD	Rectangle with Flat Top	1.2 mm	Clear	Independent	3.2 mm	1.25 mm	Colorless	2 V 2 V	Green Red	24 mcd 60 mcd	1.4 mm	1.25 mm	1206 (3216 Metric)	130 °	575 nm 639 nm	573 nm 631 nm	20 mA	20 mA
Everlight Electronics Co Ltd EASR3212WA1	Surface Mount	5 mA	2-SMD	Rectangle with Flat Top	1.2 mm	Diffused	Standard	3.2 mm	1.25 mm	Yellow	2.8 V	White	85 mcd	1.4 mm	1.25 mm	1206 (3216 Metric)	140 °
Everlight Electronics Co Ltd EASR3212BA3	Surface Mount	20 mA		Rectangle with Flat Top	1.3 mm	Clear	Standard	3.2 mm	1.25 mm	Clear Colorless	3.3 V	Blue	79 mcd	1.4 mm	1.25 mm	2-SMD No Lead	130 °	468 nm	471 nm
Everlight Electronics Co Ltd EASR3212YA0	Surface Mount	20 mA	2-SMD	Rectangle with Flat Top	1.2 mm	Clear	Standard	3.2 mm	1.25 mm	Colorless	2 V	Yellow-Green	40 mcd	1.4 mm	1.25 mm	1206 (3216 Metric)	130 °		575 nm

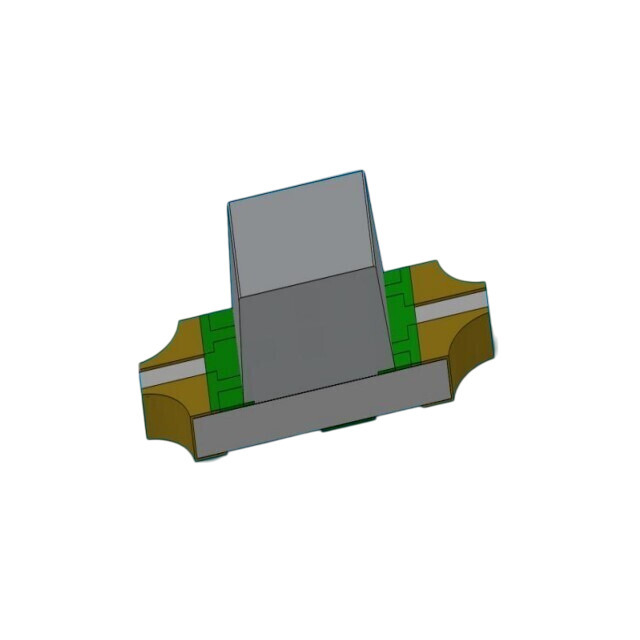

Everlight Electronics Co Ltd EASR3212RGA1	Surface Mount		2-SMD	Rectangle with Flat Top	1.2 mm	Clear	Independent	3.2 mm	1.25 mm	Colorless	2 V 2 V	Green Red	40 mcd 63 mcd	1.4 mm	1.25 mm	1206 (3216 Metric)	130 °	575 nm 632 nm		20 mA	20 mA	573nm Green 624nm Red
Everlight Electronics Co Ltd EASR3212ABA0	Surface Mount	5 mA 5 mA	2-SMD	Rectangle with Flat Top	1.2 mm	Clear	Independent	3.2 mm	1.25 mm	Colorless	1.85 V 3.1 V	Blue Orange	20 mcd 20 mcd	1.4 mm	1.25 mm	1206 (3216 Metric)	130 °	468 nm 611 nm	470 nm 605 nm
Everlight Electronics Co Ltd EASR3212RGA0	Surface Mount		2-SMD	Rectangle with Flat Top	1.2 mm	Clear	Independent	3.2 mm	1.25 mm	Colorless	2 V 2 V	Green Red		1.4 mm	1.25 mm	1206 (3216 Metric)	130 °	575 nm 639 nm	573 nm 631 nm	20 mA	20 mA		45 mcd	30 mcd
Everlight Electronics Co Ltd EASR3212WA2	Surface Mount	5 mA	2-SMD	Rectangle with Flat Top	1.2 mm	Diffused	Standard	3.2 mm	1.25 mm	Yellow	3 V	White	70 mcd	1.4 mm	1.25 mm	1206 (3216 Metric)	140 °
