950-NLFL Series
Manufacturer: WECO Electrical Connectors Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

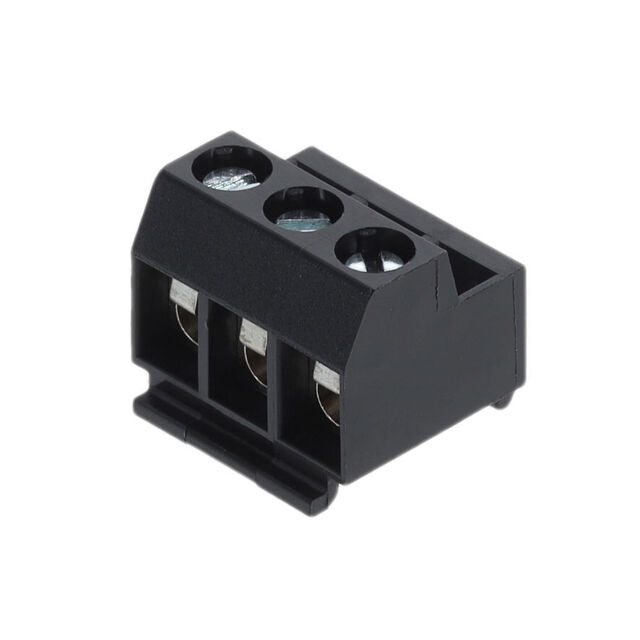

CONNECTOR; PLUG; 3POLE; 26 TO 14
| Part | Housing Material | Torque - Screw | Material Flammability Rating | Insulation Height | Contact Material | Screw Size | Wire Strip Length | Positions Per Level | Voltage - UL | Color | Plug Wire Entry Angle | Mounting Type | Contact Mating Finish | Wire Gauge or Range - mm² | Number of Levels | Number of Positions | Pitch | Type | Current - UL | Termination Style | Wire Gauge or Range - AWG (Max) | Wire Gauge or Range - AWG (Min) | Operating Temperature (Min) | Operating Temperature (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 WECO Electrical Connectors Inc. | Nylon PA Polyamide | 0.4 Nm | UL94 V-0 | 0.41 in | Copper Alloy | M2.6 | 6 mm | 3 | 300 V | Black | 90 ° | Panel Mount Snap-In | Nickel | 1.5 mm² | 1 | 3 | 0.197 in | Plug for Unshrouded Header | 10 A | Screw - Leaf Spring Wire Guard | 25.5 AWG | 14 AWG | -40 °C | 105 °C |
