M2027TX Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH ROCKER SP3T 0.4VA 28V
| Part | Mechanical Life | Electrical Life | Voltage Rating - DC | Switch Function | Actuator Marking | Color - Actuator/Cap | Circuit | Actuator Type | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Features | Current Rating (Amps) | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 50000 Cycles | 50000 Cycles | 28 V | On-On-Mom | No Marking | Red | SP3T | Paddle | 28 V | 85 °C | -30 ░C | PC Pin | Jumper needed to achieve triple throw | 0.4 VA | Right Angle Through Hole | CSA UL |

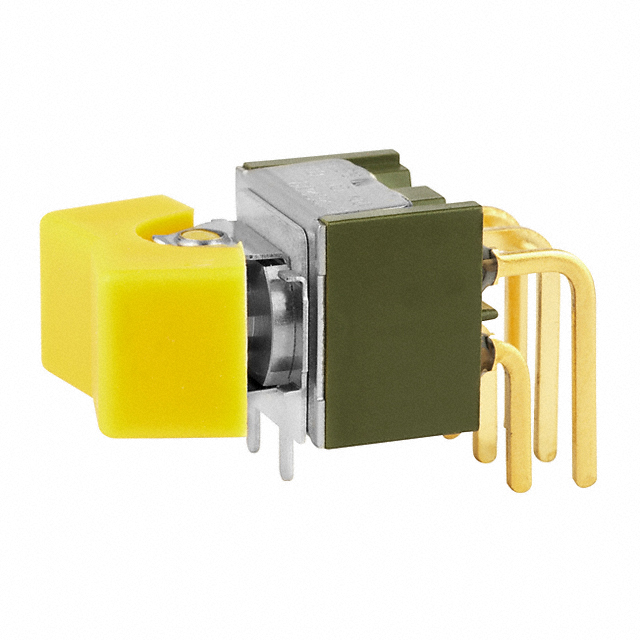

 NKK Switches | 50000 Cycles | 50000 Cycles | 28 V | On-On-Mom | No Marking | Yellow | SP3T | Concave | 28 V | 85 °C | -30 ░C | PC Pin | Jumper needed to achieve triple throw | 0.4 VA | Right Angle Through Hole | CSA UL |
NKK Switches | 50000 Cycles | 50000 Cycles | 28 V | On-On-Mom | No Marking | Red | SP3T | Concave | 28 V | 85 °C | -30 ░C | PC Pin | Jumper needed to achieve triple throw | 0.4 VA | Right Angle Through Hole | CSA UL |
