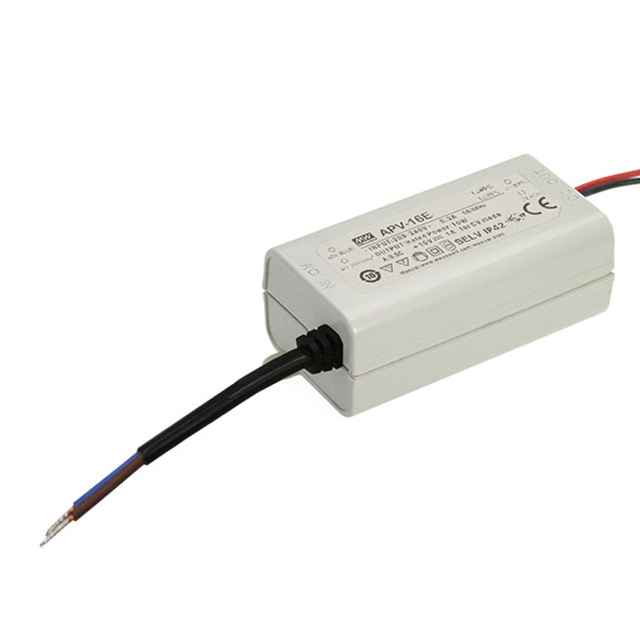

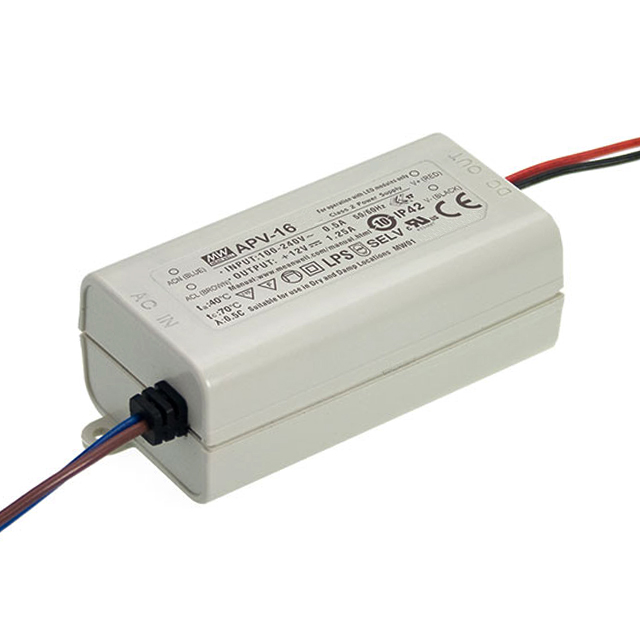

APV-16 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
LED DRIVER CV AC/DC 24V 670MA
| Part | Mounting Type | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Number of Outputs | Approval Agency | Voltage - Output | Ratings | Efficiency | Voltage - Input (Max) [Max] | Voltage - Isolation | Features | Voltage - Input (Min) [Min] | Type | Operating Temperature [Min] | Operating Temperature [Max] | Topology | Power (Watts) | Termination Style | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Chassis Mount | 77 mm | 3.03 in | 1.14 in | 29 mm | 40 mm | 1.57 " | 1 | CB CCC CE cURus ENEC | 24 V | IP42 | 83 % | 264 VAC | 3750 VDC | OCP OVP SCP | 90 VAC | Constant Voltage | -30 ░C | 70 °C | AC DC Converter | 16 W | Wire Leads | 670 mA |
 MEAN WELL USA Inc. | Chassis Mount | 77 mm | 3.03 in | 1.14 in | 29 mm | 40 mm | 1.57 " | 1 | CE ENEC | 5 V | IP42 | 75 % | 264 VAC | 3750 VDC | OCP OVP SCP | 180 VAC | Constant Voltage | -30 ░C | 70 °C | AC DC Converter | 13 W | Wire Leads | 2.6 A |
MEAN WELL USA Inc. | Chassis Mount | 77 mm | 3.03 in | 1.14 in | 29 mm | 40 mm | 1.57 " | 1 | CE ENEC | 24 V | IP42 | 264 VAC | 3750 VDC | OCP OVP SCP | 180 VAC | Constant Voltage | -30 ░C | 70 °C | AC DC Converter | 16 W | Wire Leads | 670 mA | |
MEAN WELL USA Inc. | Chassis Mount | 77 mm | 3.03 in | 1.14 in | 29 mm | 40 mm | 1.57 " | 1 | CB CCC CE cURus ENEC | 15 V | IP42 | 81 % | 264 VAC | 3750 VDC | OCP OVP SCP | 90 VAC | Constant Voltage | -30 ░C | 70 °C | AC DC Converter | 15 W | Wire Leads | 1 A |
