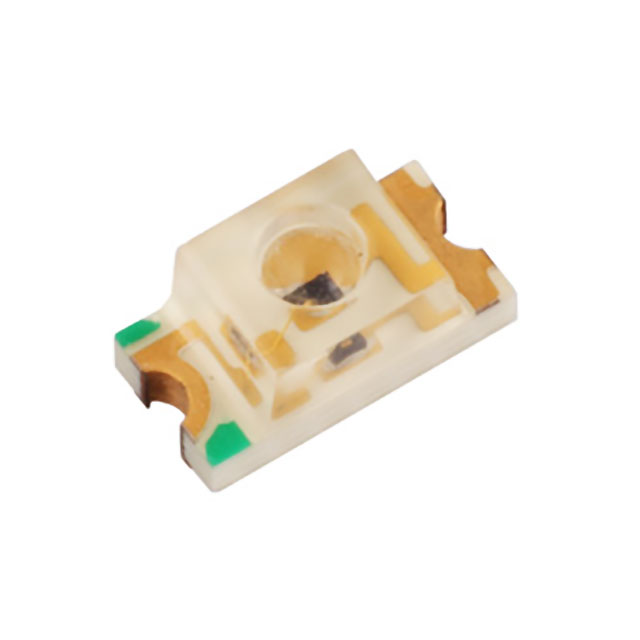

HAN1102 Series
Manufacturer: Stanley Electric Co
Beta
⌘K
LED SMD
| Part | Package / Case | Lens Size [y] | Lens Size [x] | Size / Dimension [x] | Size / Dimension [y] | Height (Max) [Max] [z] | Lens Style | Current - Test | Wavelength - Peak | Type | Operating Temperature [Max] | Operating Temperature [Min] | Current - DC Forward (If) (Max) | Viewing Angle | Mounting Type | Radiant Intensity (Ie) Min @ If | Orientation | Wavelength |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Stanley Electric Co | 1206 (3016 Metric) 1206 (3216 Metric) | 1.5 mm | 2 mm | 3 mm | 1.5 mm | 1.7 mm | Rectangle with Flat Top | 20 mA | 940 nm | Infrared (IR) | 85 °C | -30 ░C | 50 mA | 75 ° 90 ° | Surface Mount | 0.7 mW/sr | Top View | 940 nm |
