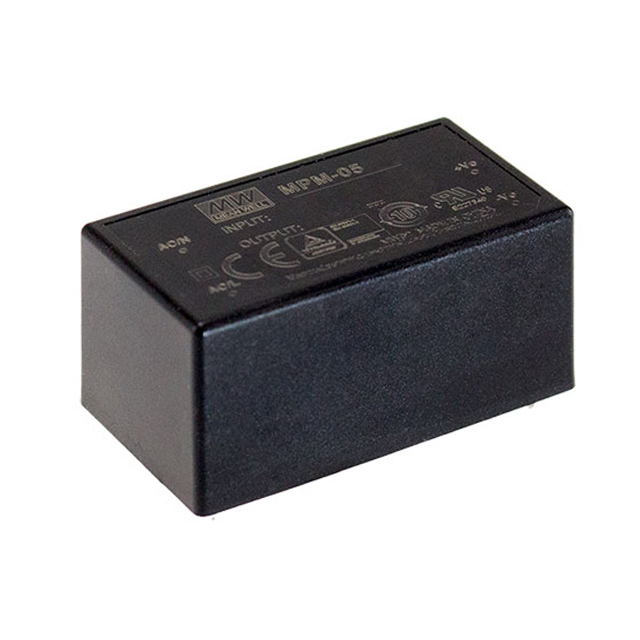

MPM-05 Series

Catalog

AC/DC CONVERTER 3.3V 4.1W

Part	Line Regulation	Load Regulation	Efficiency	Power (Watts)	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Current - Output (Max) [Max]	Number of Outputs	Features	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Mounting Type	Package / Case	Type
MEAN WELL USA Inc. MPM-05-3.3	0.3 %	0.5 %	74 %	4.1 W	3.3 V	-40 °C	85 °C	CB CE cURus TUV	1.8 in	45.7 mm	1 "	25.4 mm	21.5 mm	0.85 "	1.25 A	1	Universal Input	80 VAC	264 VAC	Medical	Through Hole	4-DIP Module	Enclosed
MEAN WELL USA Inc. MPM-05-12	0.3 %	0.5 %	80 %	5 W	12 V	-40 °C	85 °C	CB CE cURus TUV	1.8 in	45.7 mm	1 "	25.4 mm	21.5 mm	0.85 "	420 mA	1	Universal Input	80 VAC	264 VAC	Medical	Through Hole	4-DIP Module	Enclosed
MEAN WELL USA Inc. MPM-05-5	0.3 %	0.5 %	80 %	5 W	5 V	-40 °C	85 °C	CB CE cURus TUV	1.8 in	45.7 mm	1 "	25.4 mm	21.5 mm	0.85 "	1 A	1	Universal Input	80 VAC	264 VAC	Medical	Through Hole	4-DIP Module	Enclosed
MEAN WELL USA Inc. MPM-05-15	0.3 %	0.5 %	81 %	5 W	15 V	-40 °C	85 °C	CB CE cURus TUV	1.8 in	45.7 mm	1 "	25.4 mm	21.5 mm	0.85 "	330 mA	1	Universal Input	80 VAC	264 VAC	Medical	Through Hole	4-DIP Module	Enclosed
