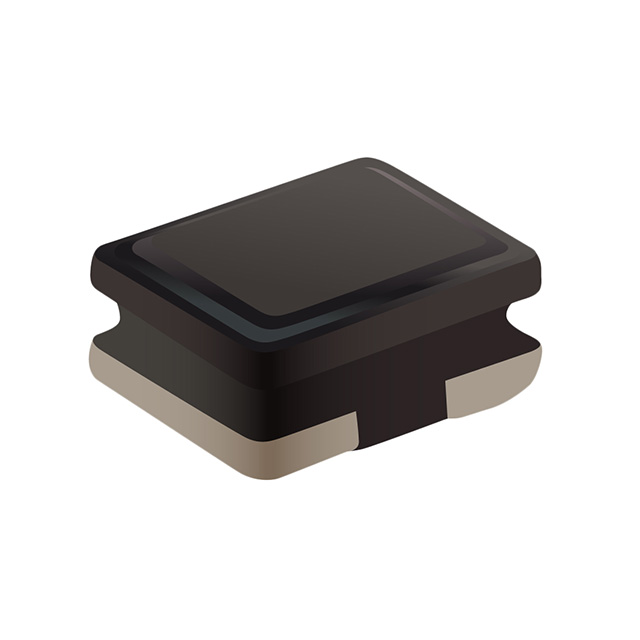

SRN2009T Series

Catalog

INDUCTOR, 10UH, 0.55A, SEMI-SHLD

Part	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	DC Resistance (DCR)	Current - Saturation (Isat)	Supplier Device Package	Package / Case	Inductance	Inductance Frequency - Test	Material - Core	Type	Q @ Freq	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Frequency - Self Resonant	Mounting Type	Shielding	Q @ Freq [custom]	Q @ Freq [custom]
Bourns Inc. SRN2009T-100M	20 %	1.6 mm	0.079 in	0.063 "	2 mm	125 °C	-40 C	0.55 A	1 Ohm	0.6 A	0806 (2016 Metric)	0806 (2016 Metric)	10 µH	1 MHz	Ferrite	Drum Core Wirewound	1 MHz 15	0.95 mm	0.037 in	60 MHz	Surface Mount	Shielded
Bourns Inc. SRN2009T-1R0M	20 %	1.6 mm	0.079 in	0.063 "	2 mm	125 °C	-40 C	1.4 A	65 mOhm	1.4 A	0806 (2016 Metric)	0806 (2016 Metric)	1 µH	1 MHz	Ferrite	Drum Core Wirewound	1 MHz 20	0.95 mm	0.037 in	200 MHz	Surface Mount	Shielded
Bourns Inc. SRN2009T-1R5M	20 %	1.6 mm	0.079 in	0.063 "	2 mm	125 °C	-40 C	1.2 A	110 mOhm	1.2 A	0806 (2016 Metric)	0806 (2016 Metric)	1.5 µH	1 MHz	Ferrite	Drum Core Wirewound		0.95 mm	0.037 in	170 MHz	Surface Mount	Shielded	1 MHz	18
Bourns Inc. SRN2009T-2R2M	20 %	1.6 mm	0.079 in	0.063 "	2 mm	125 °C	-40 C	900 mA	160 mOhm	900 mA	0806 (2016 Metric)	0806 (2016 Metric)	2.2 µH	1 MHz	Ferrite	Drum Core Wirewound	1 MHz 16	0.95 mm	0.037 in	150 MHz	Surface Mount	Shielded
