09200032 Series
Manufacturer: HARTING
Beta
⌘K
HEAVY DUTY CONNECTOR, 3+PE SIGNAL, HAN A SERIES, INSERT, 4 CONTACTS, 3A, RECEPTACLE, SCREW SOCKET
| Part | Material Flammability Rating | Housing Material | Color | Contact Finish | Contact Material | Termination Style | Current Rating (Amps) | Number of Positions | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Gender | Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

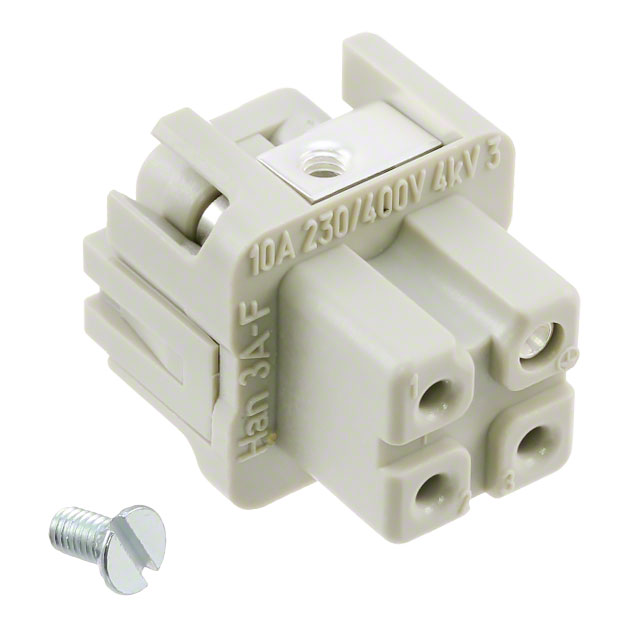

 HARTING | UL94 V-0 | Polycarbonate (PC) | Gray | Silver | Copper Alloy | Screw | 10 A | 3+Ground | 600 V | 125 °C | -40 C | Insert | Female | 3 A |

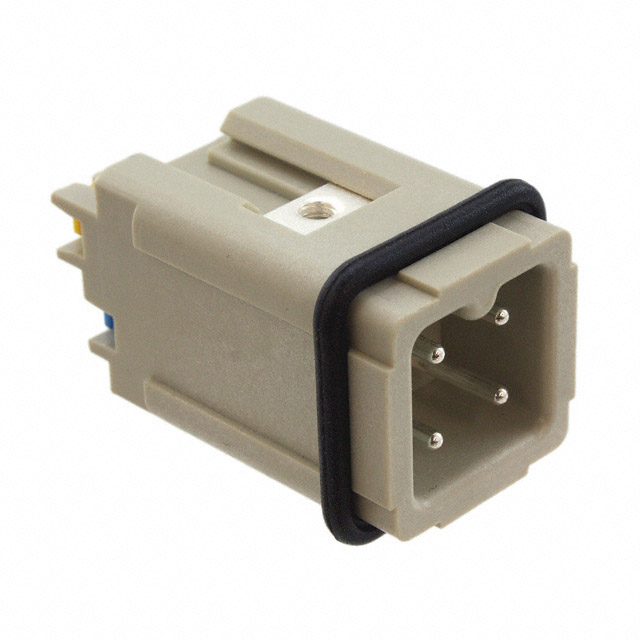

 HARTING | UL94 V-0 | Polycarbonate (PC) | Gray | Copper Alloy | Push In with Lock | 10 A | 3+Ground | 600 V | 125 °C | -40 C | Insert | Male | 3 A | |

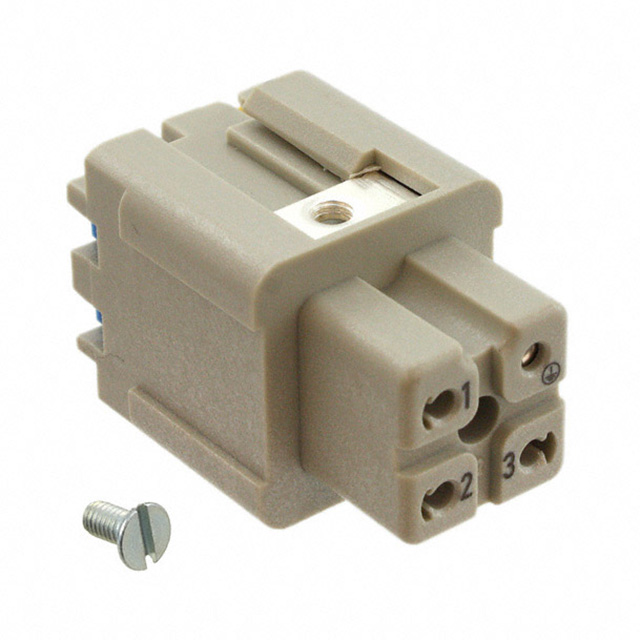

 HARTING | UL94 V-0 | Polycarbonate (PC) | Gray | Copper Alloy | Push In with Lock | 10 A | 3+Ground | 600 V | 125 °C | -40 C | Insert | Female | 3 A |
