TL1220 Series

Manufacturer: E-Switch

Catalog

TACTILE SWITCHES TACT, 50MA 12VDC, SPST-NO OFF-(ON), THROUGH HOLE PC PIN

Part	Switch Function	Illumination	Actuator Height off PCB, Vertical [z]	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Mounting Type	Operating Force	Outline [x]	Outline [y]	Actuator Type	Actuator Orientation	Illumination Type, Color	Illumination Voltage (Nominal)	Contact Rating @ Voltage	Circuit	Switch Travel	Mechanical Life

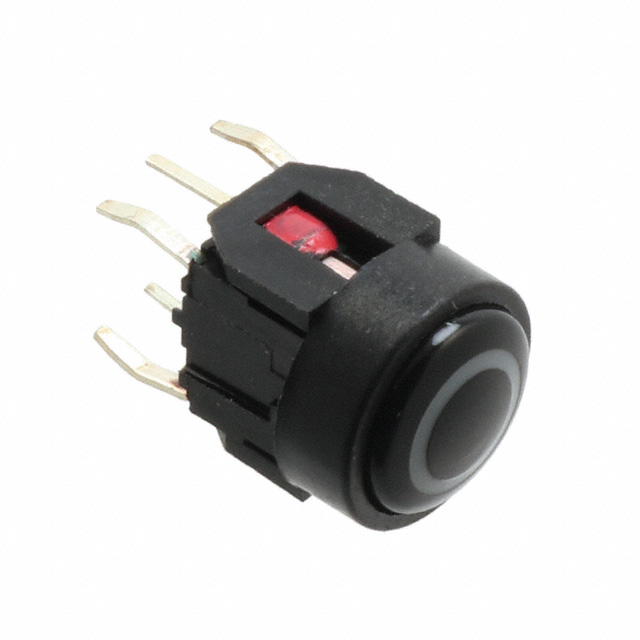

E-Switch TL1220R2BBBYHALO	Off-Mom	Illuminated	9.9 mm	85 °C	-40 C	PC Pin	Through Hole	180 gf	7.6 mm	6 mm	Round Button	Top Actuated	LED Yellow	2.3 VDC	0.05 A 12 VDC	SPST-NO
E-Switch TL1220R3NNBRG-POWER	Off-Mom	Illuminated	10 mm	85 °C	-40 C	PC Pin	Through Hole	180 gf	7.6 mm	6 mm	Round Button	Top Actuated	Green/Red LED	2.3 VDC	0.05 A 12 VDC	SPST-NO	0.2 mm	500000 Cycles
E-Switch TL1220R1BBRNN-GLOSSY	Off-Mom	Non-Illuminated	9.9 mm	85 °C	-40 C	PC Pin	Through Hole	180 gf	7.6 mm	6 mm	Round Button	Top Actuated			0.05 A 12 VDC	SPST-NO	0.2 mm	500000 Cycles
E-Switch TL1220R2BGGRHALO	Off-Mom	Illuminated	9.9 mm	85 °C	-40 C	PC Pin	Through Hole	180 gf	7.6 mm	6 mm	Round Button	Top Actuated	LED Red	2.3 VDC	0.05 A 12 VDC	SPST-NO	0.2 mm	500000 Cycles
E-Switch TL1220R1BBSNN-GLOSSY	Off-Mom	Non-Illuminated	9.9 mm	85 °C	-40 C	PC Pin	Through Hole	180 gf	7.6 mm	6 mm	Round Button	Top Actuated			0.05 A 12 VDC	SPST-NO	0.2 mm	500000 Cycles
E-Switch TL1220R2BGGYHALO	Off-Mom	Illuminated	9.9 mm	85 °C	-40 C	PC Pin	Through Hole	180 gf	7.6 mm	6 mm	Round Button	Top Actuated	LED Yellow	2.3 VDC	0.05 A 12 VDC	SPST-NO	0.2 mm	500000 Cycles
E-Switch TL1220R2BBBOG-POWER	Off-Mom	Illuminated	9.9 mm	85 °C	-40 C	PC Pin	Through Hole	180 gf	7.6 mm	6 mm	Round Button	Top Actuated	Green/Orange LED	2.3 VDC 3.5 VDC	0.05 A 12 VDC	SPST-NO

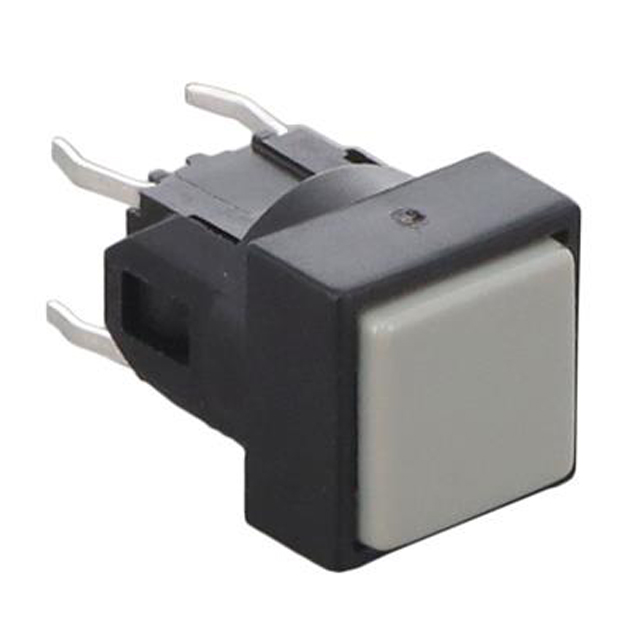

E-Switch TL1220S2BBGNN	Off-Mom	Non-Illuminated	12.5 mm	85 °C	-40 C	PC Pin	Through Hole	180 gf	7.8 mm	6 mm	Square Button	Top Actuated			0.05 A 12 VDC	SPST-NO	0.2 mm	500000 Cycles
E-Switch TL1220R1BBBNN-GLOSSY	Off-Mom	Non-Illuminated	9.9 mm	85 °C	-40 C	PC Pin	Through Hole	180 gf	7.6 mm	6 mm	Round Button	Top Actuated			0.05 A 12 VDC	SPST-NO	0.2 mm	500000 Cycles
E-Switch TL1220S5NNWRN	Off-Mom	Illuminated	11.2 mm	85 °C	-40 C	PC Pin	Through Hole	180 gf	7.6 mm	6 mm	Translucent	Top Actuated	LED Red	2.3 VDC	0.05 A 12 VDC	SPST-NO	0.2 mm	500000 Cycles
