1478670 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

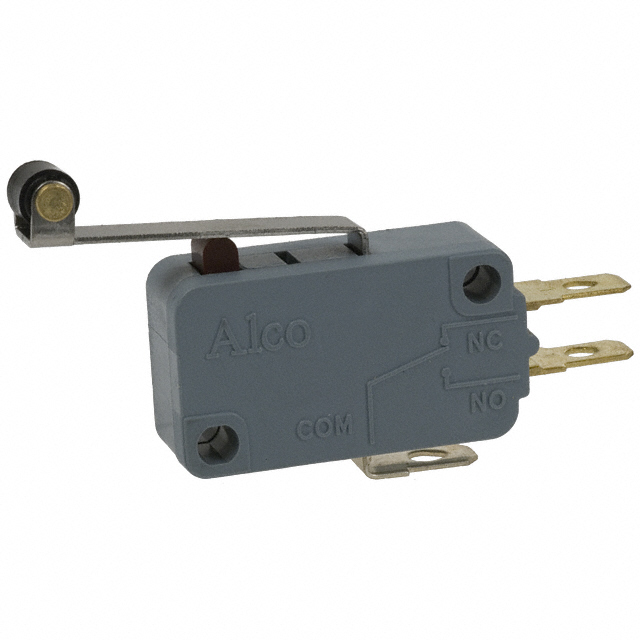

SWITCH SNAP ACT SPDT 0.1A 125V
| Part | Electrical Life | Current Rating (Amps) | Mounting Type | Pretravel | Pretravel | Overtravel | Overtravel | Operating Position | Operating Position | Operating Force | Release Force | Actuator Type | Switch Function | Mechanical Life | Termination Style | Termination Style | Voltage Rating - AC | Operating Temperature [Min] | Operating Temperature [Max] | Differential Travel | Differential Travel | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 1000000 Cycles | 100 mA | Chassis Mount | 4 mm | 0.157 in | 0.051 in | 1.3 mm | 20.7 mm | 0.815 in | 35 gf | 6 gf | Lever Roller | On-Mom | 10000000 Cycles | Quick Connect Solder | 0.187 in 4.7 mm | 125 V | -20 C | 130 °C | 0.047 in | 1.2 mm | SPDT |
