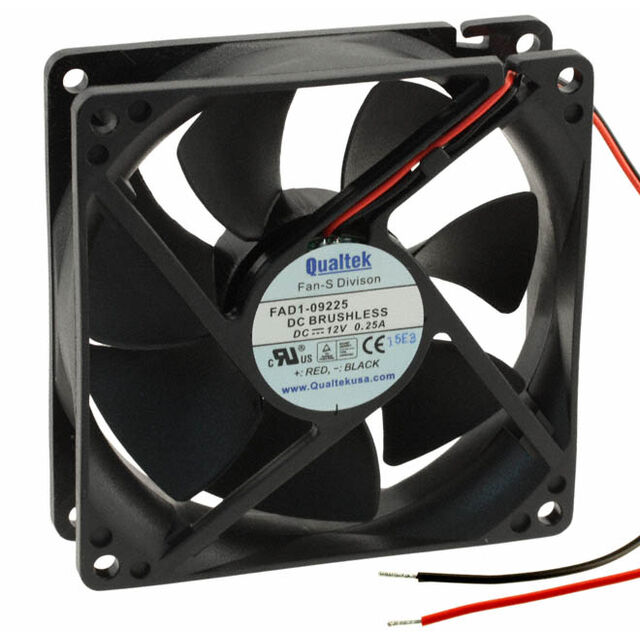

FAD1-09225 Series
Manufacturer: Qualtek
Beta
⌘K
FAN AXIAL 92.5X25MM 12VDC WIRE
| Part | Current Rating (Amps) | Voltage Range [Min] | Voltage Range [Max] | Material - Frame | Material - Blade | Approval Agency | Termination | Fan Type | Air Flow | Air Flow | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Rated | Size / Dimension [y] | Size / Dimension [x] | Static Pressure | Static Pressure | Noise | Bearing Type | Power (Watts) | RPM | Weight [custom] | Weight [custom] | Width [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Qualtek | 100 mA | 10.8 VDC | 13.2 VDC | Plastic | Plastic | CE cURus TUV | 2 Wire Leads | Tubeaxial | 40.7 CFM | 1.14 m³/min | 70 °C | -10 °C | 12 VDC | 92.5 mm | 92.5 mm | 0.081 in H2O | 20.1 Pa | 29.2 dB(A) | Ball | 1.2 W | 2100 RPM | 0.203 lb | 92.08 g | 25 mm |
Qualtek | 50 mA | 21.6 VDC | 26.4 VDC | Plastic | Plastic | CE cURus TUV | 2 Wire Leads | Tubeaxial | 40.7 CFM | 1.14 m³/min | 70 °C | -10 °C | 24 VDC | 92.5 mm | 92.5 mm | 0.081 in H2O | 20.1 Pa | 29.2 dB(A) | Ball | 1.2 W | 2100 RPM | 0.203 lb | 92.08 g | 25 mm |
 Qualtek | CE cURus TUV | 2 Wire Leads | Tubeaxial | 44.7 CFM | 1.25 mł/min | 70 °C | -10 °C | 12 VDC | 92.5 mm | 92.5 mm | 0.101 in H2O | 25.1 Pa | 31.2 dB(A) | Ball | 1.8 W | 2400 RPM | 0.203 lb | 92.08 g | 25 mm | |||||
Qualtek | 21.6 VDC | 26.4 VDC | Plastic | Plastic | CE cURus TUV | 2 Wire Leads | Tubeaxial | 61.9 CFM | 1.73 m³/min | 70 °C | -10 °C | 24 VDC | 92.5 mm | 92.5 mm | 0.187 in H2O | 46.6 Pa | 42.2 dB(A) | Ball | 3.64 W | 3300 RPM | 0.203 lb | 92.08 g | 25 mm |
