1054 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

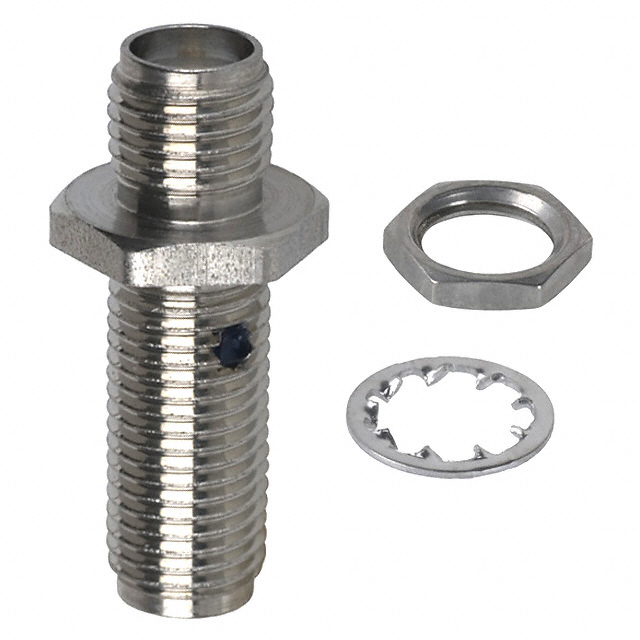

CONN ADAPT JACK-JACK OSM 50 OHM
| Part | Mating Cycles | Center Contact Material | Dielectric Material | Includes | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Frequency - Max [Max] | Mounting Type | Mounting Feature | Impedance | Conversion Type | Convert To (Adapter End) | Center Gender | Style | Adapter Series | Adapter Type | Convert From (Adapter End) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 500 | Beryllium Copper | Polytetrafluoroethylene (PTFE) | 1 Connector 1 Lockwasher 1 Nut | Stainless Steel | -65 ░C | 165 °C | Gold | 18 GHz | Panel Mount | Bulkhead | 50 Ohms | Same Series | SMA Jack Female Socket | Female to Female | Straight | OSM to OSM | Jack to Jack | Female Socket SMA Jack |
