AWH 64G Series

Catalog

CONN HEADER 64POS IDC GOLD

Part	Mounting Type	Connector Type	Pitch	Pitch	Number of Positions	Number of Rows [custom]	Row Spacing	Row Spacing	Contact Finish	Cable Termination	Contact Type	Fastening Type	Features	Wire Type	Color	Current Rating (Amps)	Contact Shape	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Material	Termination	Style	Insulation Height	Insulation Height	Number of Positions Loaded	Insulation Material	Insulation Color	Shrouding	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]
Assmann WSW Components AWH 64G-E222-IDC	Panel Mount	Header	0.1 "	2.54 mm	64	2	2.54 mm	0.1 "	Gold	IDC	Male Pin	Latch Lock/Eject Hooks	Feed Through	Ribbon Cable	Gray

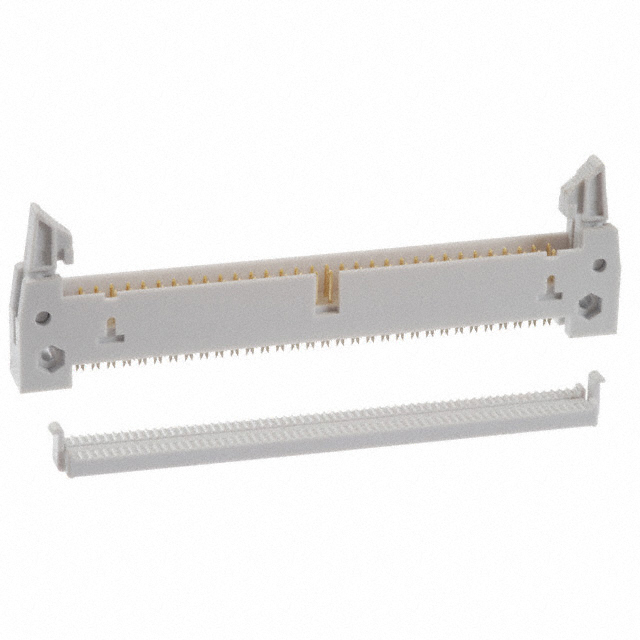

Assmann WSW Components AWH 64G-0222-IDC	Free Hanging (In-Line)	Header	0.1 "	2.54 mm	64	2	2.54 mm	0.1 "	Gold	IDC	Male Pin	Latch Lock/Eject Hooks	Feed Through	Ribbon Cable	Gray

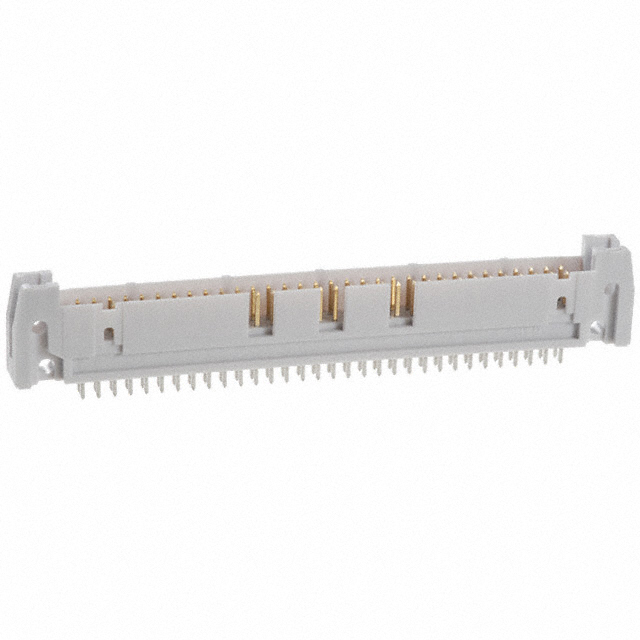

Assmann WSW Components AWH64G-0202-T-R	Through Hole	Header			64	2					Male Pin	Push-Pull	Keying Slot			3 A	Square	UL94 V-0	0.1 "	2.54 mm	Tin	Brass	Solder	Board to Cable/Wire	17 mm	0.669 in	All	Polybutylene Terephthalate (PBT) Glass Filled	Gray	Shrouded - 4 Wall	0.13 "	3.3 mm	0.1 in	2.54 mm	Gold	Flash	-40 C	105 ░C
Assmann WSW Components AWH 64G-E202-IDC	Panel Mount	Header	0.1 "	2.54 mm	64	2	2.54 mm	0.1 "	Gold	IDC	Male Pin		Feed Through	Ribbon Cable	Gray
