PGSD Series

Catalog

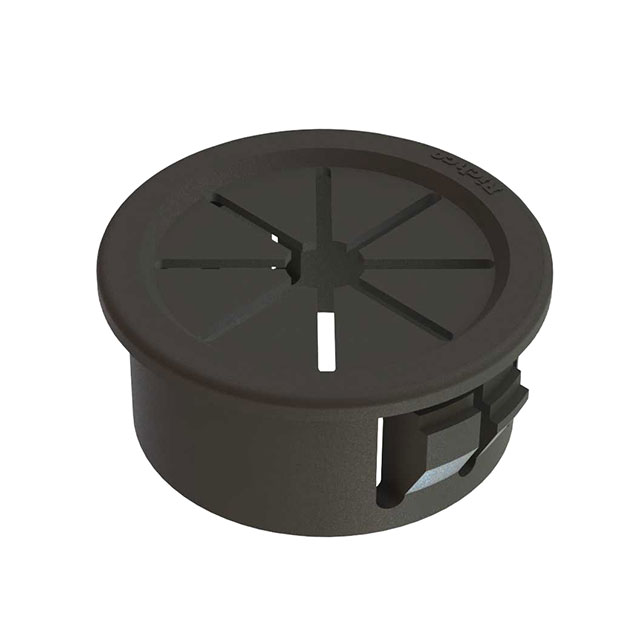

GROMMET, CABLE RETENTION, 7.9 MM, NYLON 6.6 (POLYAMIDE 6.6), 12.7 MM, 1.8 MM

Part	Panel Thickness	Panel Thickness	Material	Features	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Bushing, Grommet Type	For Use With/Related Products	Material Flammability Rating	Color	Panel Cutout Dimensions
Essentra Components PGSD-1	0.062 "	1.57 mm	Polyamide (PA66) Nylon 6/6	Snap-Mount	7.92 mm	0.312 in	12.7 mm	0.5 "	Bushing	Cable Wires	UL94 V-2	Black
Essentra Components PGSD-6	0.125 in	3.18 mm	Polyamide (PA66) Nylon 6/6	Snap-Mount	11.1 mm	0.437 in	15.88 mm	0.625 in	Bushing	Cable Wires	UL94 V-2	Black
Essentra Components PGSD-10	0.125 in	3.18 mm	Polyamide (PA66) Nylon 6/6	Snap-Mount	25.4 mm	1 "		1.375 in	Bushing	Cable Wires	UL94 V-2	Black	34.93 mm
Essentra Components PGSD-4	0.062 "	1.57 mm	Polyamide (PA66) Nylon 6/6	Snap-Mount	14.22 mm	0.56 in	22.22 mm	0.875 in	Bushing	Cable Wires	UL94 V-2	Black
Essentra Components PGSD-11	0.125 in	3.18 mm	Polyamide (PA66) Nylon 6/6	Snap-Mount	26.97 mm	1.062 in	38.1 mm	1.5 in	Bushing	Cable Wires	UL94 V-2	Black
