EMH10 Series

Catalog

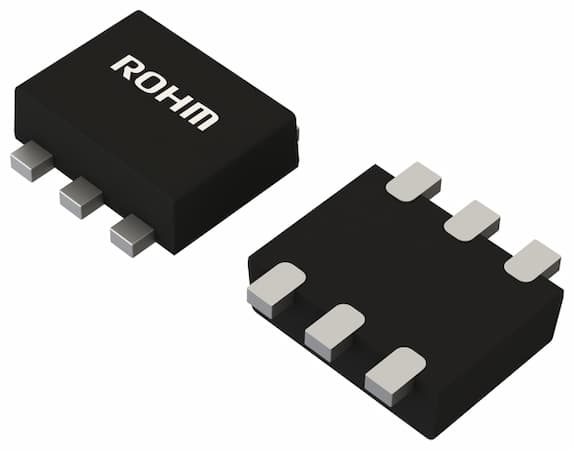

NPN+NPN, SOT-563, DUAL DIGITAL TRANSISTOR (BIAS RESISTOR BUILT-IN TRANSISTOR)

Part	Mounting Type	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Resistor - Base (R1)	Supplier Device Package	Transistor Type	Frequency - Transition	Resistor - Emitter Base (R2)	Current - Collector (Ic) (Max) [Max]	Current - Collector Cutoff (Max) [Max]	Package / Case	Vce Saturation (Max) @ Ib, Ic	Voltage - Collector Emitter Breakdown (Max) [Max]	Grade	Qualification
Rohm Semiconductor EMH10T2R	Surface Mount	56	22 kOhms	EMT6	2 NPN - Pre-Biased (Dual)	250 MHz	22 kOhms	100 mA	500 nA	SOT-563 SOT-666	300 mV	50 V
Rohm Semiconductor EMH10FHAT2R	Surface Mount	80	2.2 kOhm	EMT6	2 NPN - Pre-Biased (Dual)	250 MHz	47 kOhms	100 mA		SOT-563 SOT-666	300 mV		Automotive	AEC-Q101
