2314812 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

2MM 2MM DOUBLE ROW TIN 2A 8P PHOSPHOR BRONZE -40℃~+125℃ 125V STRAIGHT 4.5MM SQUARE HOLE PLUGIN,P=2MM FEMALE HEADERS ROHS

Part	Material Flammability Rating	Fastening Type	Features	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Number of Rows	Contact Finish - Mating	Contact Shape	Insulation Material	Number of Positions	Termination	Connector Type	Contact Material	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Row Spacing - Mating	Row Spacing - Mating	Voltage Rating	Contact Type	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Number of Positions

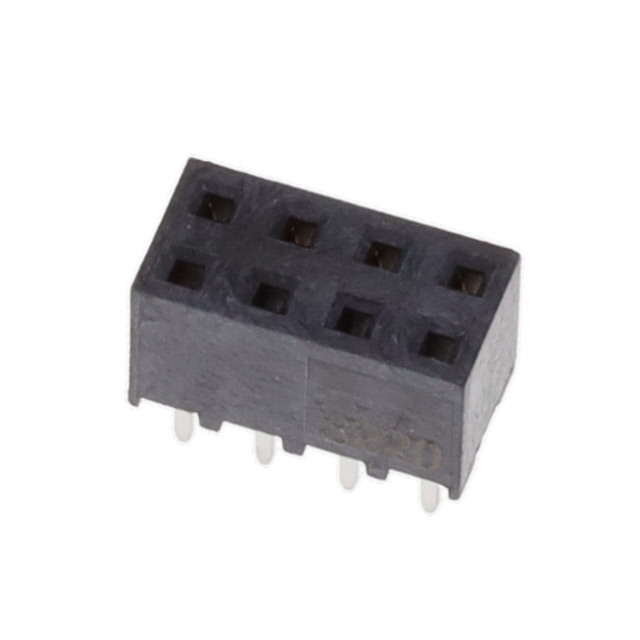

TE Connectivity Raychem Cable Protection 2314812-8	UL94 V-0	Push-Pull	Pick and Place	Black	3 µm	118.1 µin	All	2	Gold	Square	Liquid Crystal Polymer (LCP)	8	Solder	Receptacle	Phosphor Bronze	2 A	0.079 "	2 mm	0.079 in	2 mm	125 VDC	Female Socket	Through Hole	3.94 µin	0.1 µm	0.079 in	2 mm	0.177 in	4.5 mm	125 °C	-40 °C	Tin

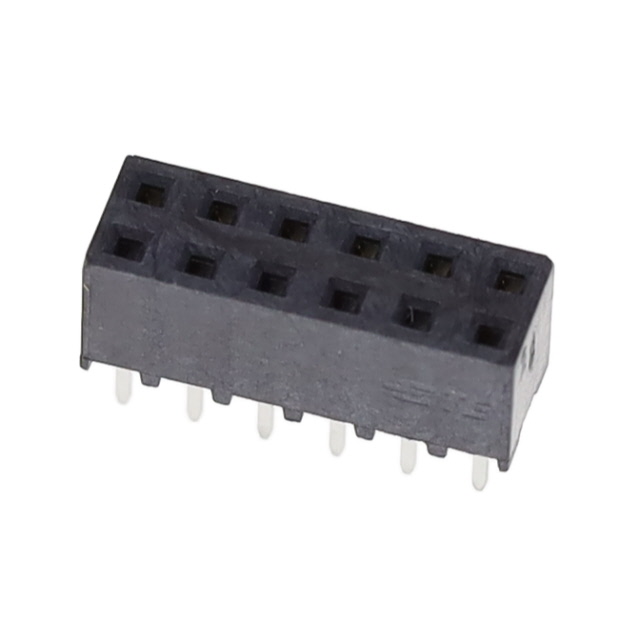

TE Connectivity Raychem Cable Protection 1-2314812-2	UL94 V-0	Push-Pull	Pick and Place	Black	0.3 µm	12 µin	All	2	Gold	Square	Liquid Crystal Polymer (LCP)	12	Solder	Receptacle	Phosphor Bronze	2 A	0.079 "	2 mm	0.079 in	2 mm	125 VDC	Female Socket	Through Hole	3.94 µin	0.1 µm	0.079 in	2 mm	0.177 in	4.5 mm	125 °C	-40 °C	Tin

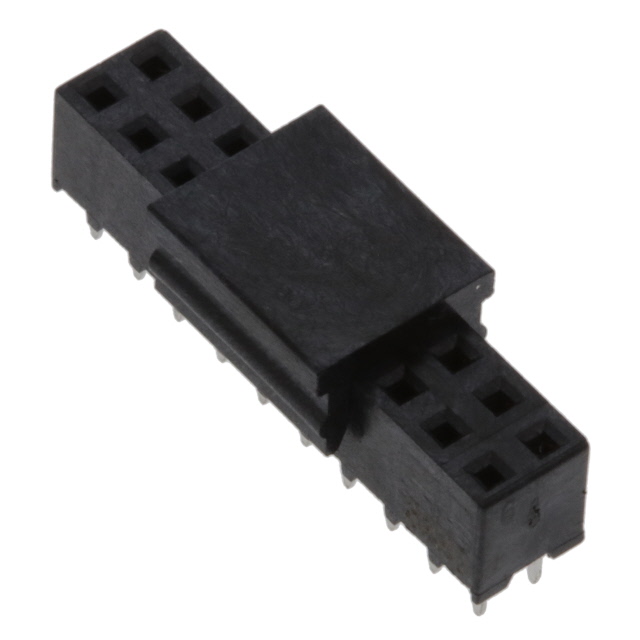

TE Connectivity Raychem Cable Protection 2-2314812-0	UL94 V-0	Push-Pull	Pick and Place	Black	3 µm	118.1 µin	All	2	Gold	Square	Liquid Crystal Polymer (LCP)	20	Solder	Receptacle	Phosphor Bronze	2 A	0.079 "	2 mm	0.079 in	2 mm	125 VDC	Female Socket	Through Hole	3.94 µin	0.1 µm	0.079 in	2 mm	0.177 in	4.5 mm	125 °C	-40 °C	Tin

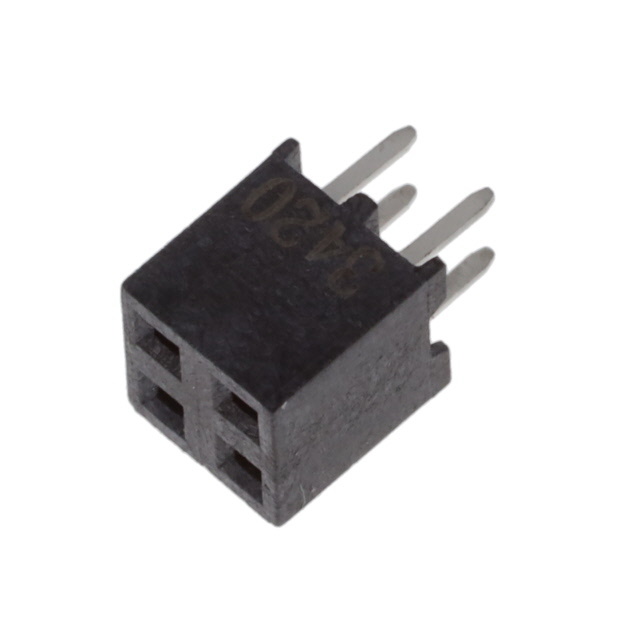

TE Connectivity Raychem Cable Protection 2314812-4	UL94 V-0	Push-Pull	Pick and Place	Black	3 µm	118.1 µin	All	2	Gold	Square	Liquid Crystal Polymer (LCP)	4	Solder	Receptacle	Phosphor Bronze	2 A	0.079 "	2 mm	0.079 in	2 mm	125 VDC	Female Socket	Through Hole	3.94 µin	0.1 µm	0.079 in	2 mm	0.177 in	4.5 mm	125 °C	-40 °C	Tin
TE Connectivity Raychem Cable Protection 2314812-6	UL94 V-0	Push-Pull	Pick and Place	Black	0.3 µm	12 µin	All	2	Gold	Square	Liquid Crystal Polymer (LCP)	6	Solder	Receptacle	Phosphor Bronze	2 A	0.079 "	2 mm	0.079 in	2 mm	125 VDC	Female Socket	Through Hole	3.94 µin	0.1 µm	0.079 in	2 mm	0.177 in	4.5 mm	125 °C	-40 °C	Tin

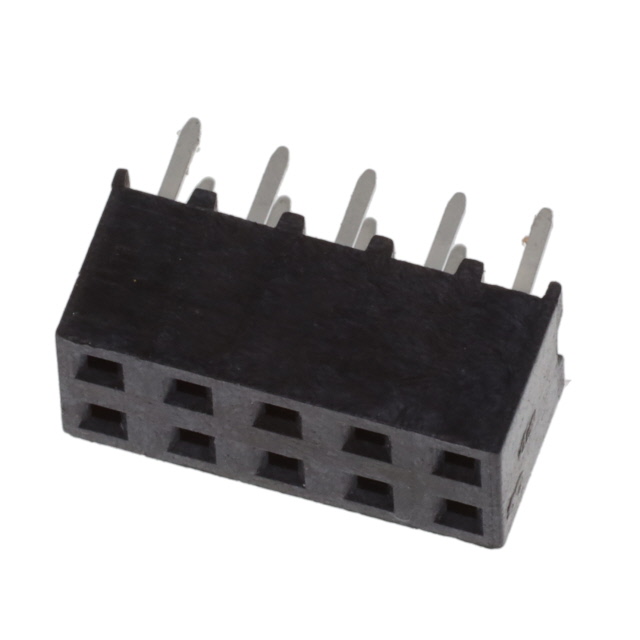

TE Connectivity Raychem Cable Protection 1-2314812-0	UL94 V-0	Push-Pull	Pick and Place	Black	3 µm	118.1 µin	All	2	Gold	Square	Liquid Crystal Polymer (LCP)	10	Solder	Receptacle	Phosphor Bronze	2 A	0.079 "	2 mm	0.079 in	2 mm	125 VDC	Female Socket	Through Hole	3.94 µin	0.1 µm	0.079 in	2 mm	0.177 in	4.5 mm	125 °C	-40 °C	Tin
TE Connectivity Raychem Cable Protection 1-2314812-6	UL94 V-0	Push-Pull	Pick and Place	Black	3 µm	118.1 µin	All	2	Gold	Square	Liquid Crystal Polymer (LCP)		Solder	Receptacle	Phosphor Bronze	2 A	0.079 "	2 mm	0.079 in	2 mm	125 VDC	Female Socket	Through Hole	3.94 µin	0.1 µm	0.079 in	2 mm	0.177 in	4.5 mm	125 °C	-40 °C	Tin	16
